Instrument cluster – Mazda 2005 B2300 Truck User Manual
Page 18

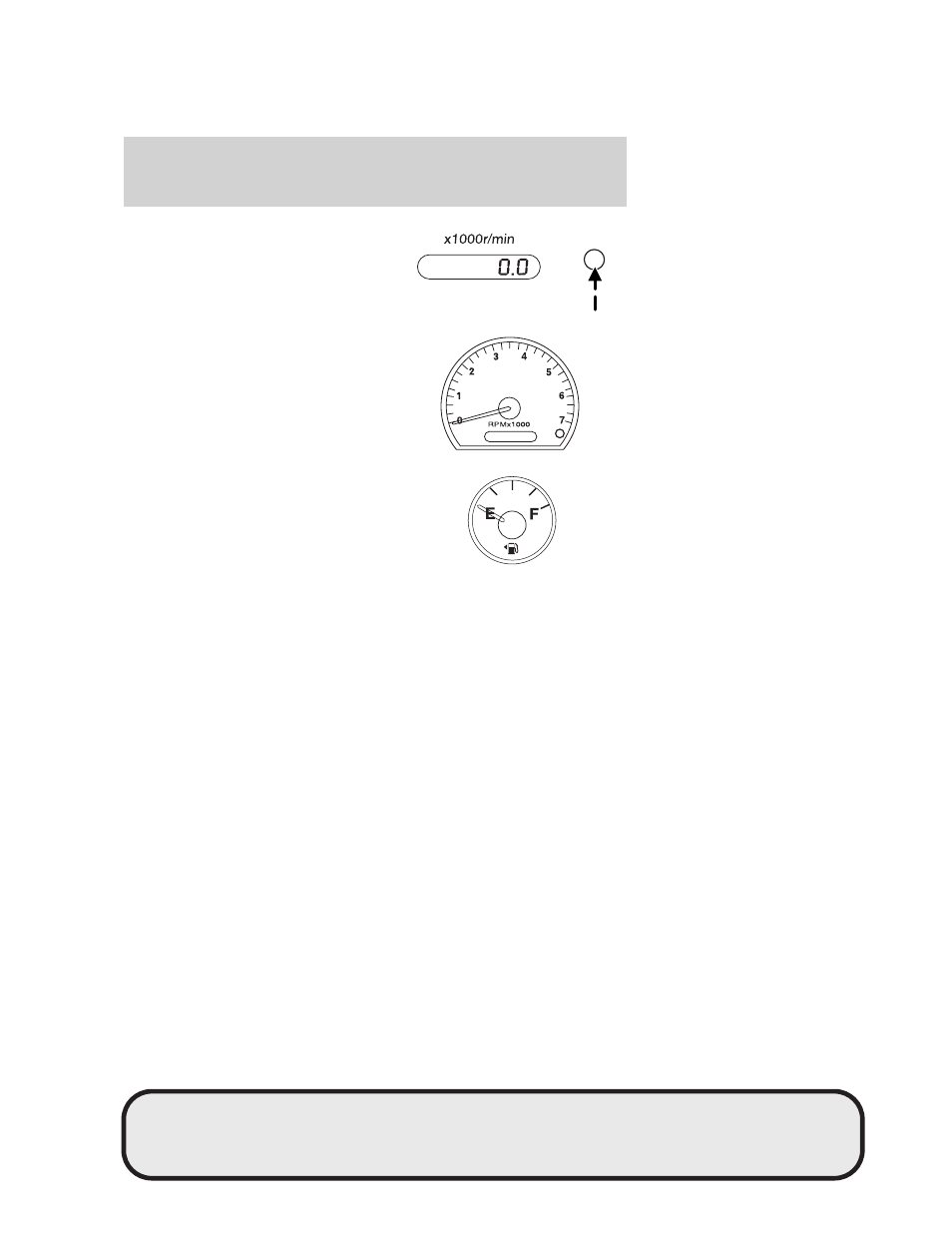

Trip odometer: Registers the miles
(kilometers) of individual journeys.
To reset, depress the control button.
Tachometer: Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
Fuel gauge: Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the ON position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
NOTE: The FUEL icon and arrow
indicates which side of the vehicle
the fuel filler door is located.
Refer to Filling the tank in the Maintenance and Specifications
chapter for more information.
REVIEW COPY
2005 Mazda B Series (mbs), Owners Guide (post-2002-fmt) (own2002),
Market: USA_English (fus)
Instrument Cluster
17
