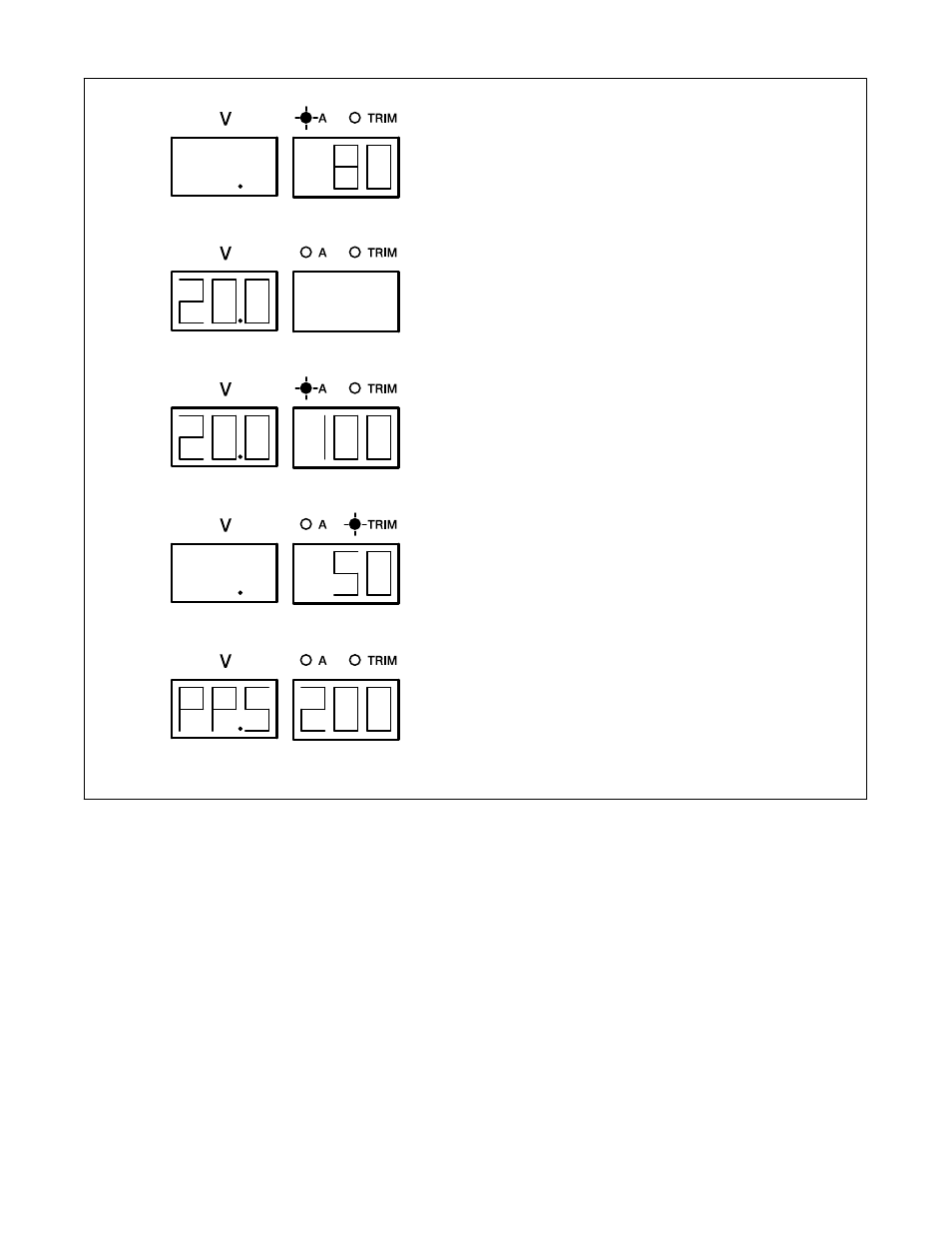

4-3. Example Displays
Amperage preset display for Stick welding mode.
Voltage preset display for MIG welding mode.
Display while welding.
Preset trim display for Pulse welding mode.
Preset pulses per second (PPS) display for Manual Pulse welding mode.
.
Values shown are hypothetical.
The “A” (Amperage) and “Trim” lights illuminate as shown.
