SECTION 4 − OPERATION

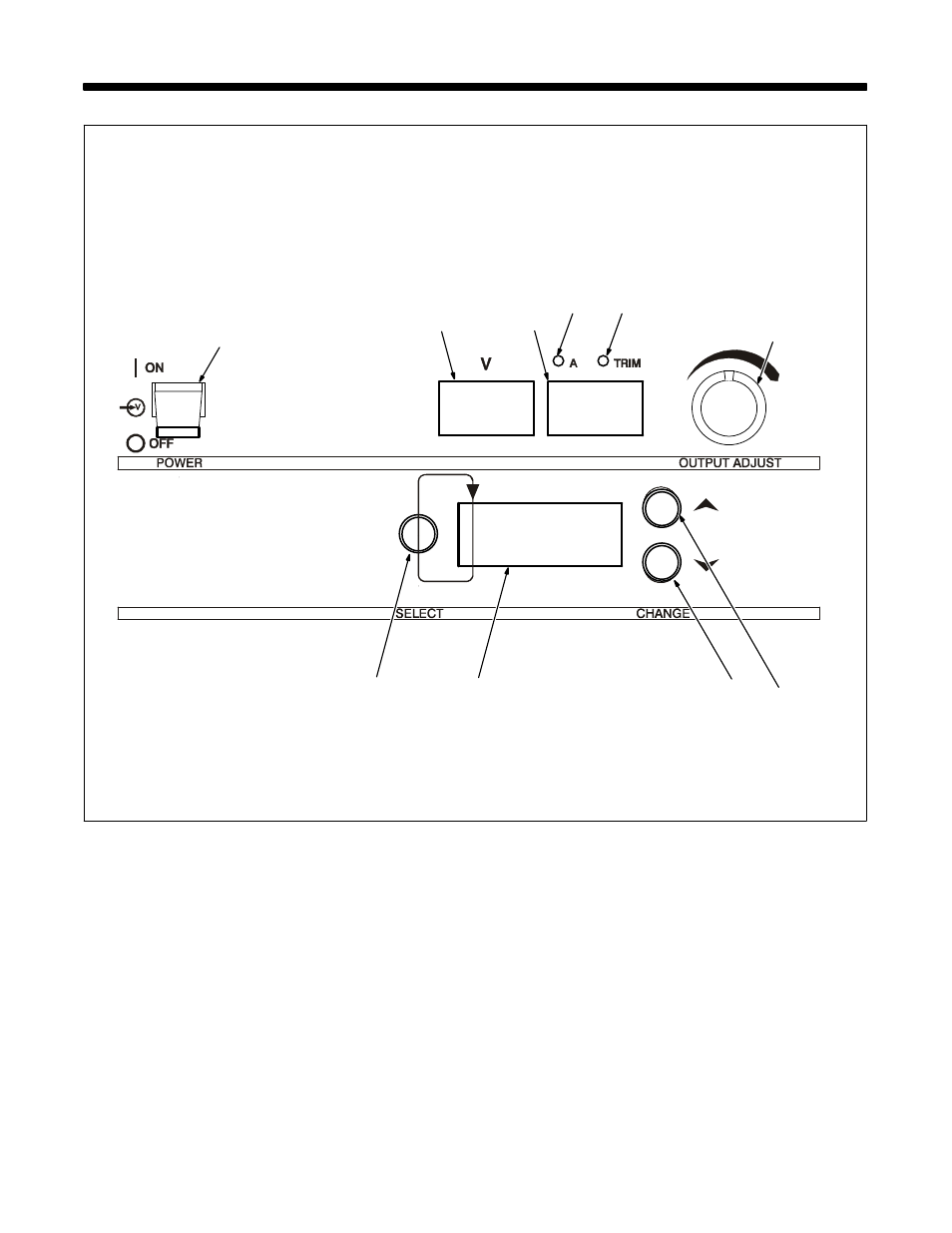

4-1. Front Panel Controls
1 Power Switch
.
The fan motor is thermostatically
controlled and only runs when cooling is
needed.
2 Voltmeter (see Section 4-2)
3 Ammeter/Trim Indicator (see Section
4-2)
4 Ammeter Light
Lights when display beneath is indicating
amperage.
5 Trim Indicator Light
Lights when display beneath is indicating
trim.
6 Output Adjust Control
Controls various output values, depending
on mode being used.
7 Increment Push Button (see Section
4-4)
8 Decrement Push Button (see Section
4-4)
9 Display (see Section 4-4)
10 Select Push Button (see Section 4-4)
Ref. 192 057
2 3
6
1
4 5
7
8 10 9
