Miller Electric SSW-2020 ATT - Manual

Process
Resistance Spot Welding
Work Capacity
20 kVA units weld total thicknesses up to
1/4 inch (6.3 mm). Not recommended for
aluminum or copper alloys.
Rated Output 20 kVA at 40% duty cycle
depending on model, based
on 10-second time period
Weight SSW 170 –185 lb. (77– 84 kg)
depending on model
Applications
Sheet Metal Work
Light Fabrication
Maintenance Work
Quick
Specs

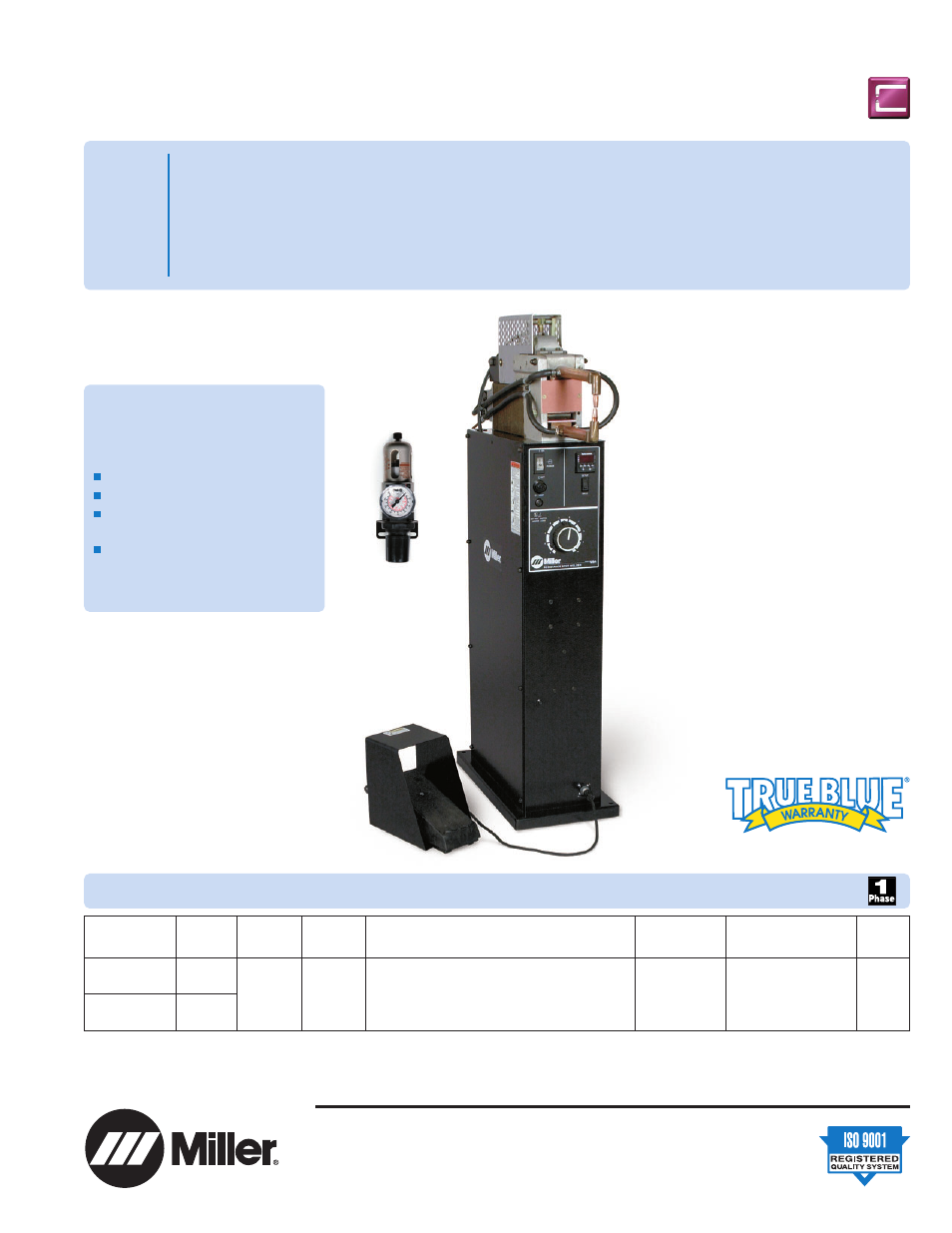

SSW Series Spot Welders
Water-Cooled Resistance
Spot Welders
Issued Jan. 2013 • Index No. SW/3.1
The Power of Blue ® .
SSW foot switch permits user to use both hands
to position weldment between tongs. Can be held
longer if longer hold time is desired.
All spot welders operate on single-phase input
power, and require a minimum air supply of
60 PSI (414 kPa).
SSW models are designed for stationary
use and come with an all-steel pedestal
which houses timers and controls.
SSW models come complete with:
Stationary welding head
Remote foot switch
Pedestal inclusive of controls
and timer
Air filter/regulator assembly
Note: Order tongs/tips separately to
match your applications
Air filter/regulator
assembly included.
Set-up/weld switch permits checking of
tong pressure and alignment without
making a weld.
Built-in squeeze/weld timer makes it quick
and easy to set or adjust squeeze and/or
weld time in hundredths of a second.
LED display makes it easy to read and
see timer settings.
Ten-step current control adjusts output current
with no change in duty cycle.
Cam-operated locking device simplifies
installation and adjustment of bottom tong.
Power switch/power “on” light/circuit breaker
protects control circuitry. Easy reset.
Adjustable tong pressure nuts to adjust tong
pressure for different thicknesses and applications.
Stationary
Model
SSW-2020 ATT
SSW-2040 ATT
Work
Capacity*
1/4 in.
(6.3 mm)
Input
50/60 Hz
230 VAC,
90 Amps
460 VAC,
45 Amps
Rated
Out put**
20 kVA at
40% Duty
Cycle
Rated Output (Calibrated w/ standard-type tongs)
6 in. (152 mm) 12 in. (305 mm) 18 in. (457 mm)
12,500 A 10,500 A 9000 A
Specifications
(Subject to change without notice.)
Max. Open-
Circuit Voltage
3.55
Dimensions
(H x W x D)
49 x 11 x 21-3/4 in.
(1245 x 280 x 552 mm)
Net
Weight
185 lb.
(84 kg)
*Combined thickness un coated mild steel using 6-inch (152 mm) tongs.
**Duty cycle based on 10-second time period. (40% duty cycle means unit can weld for 4 seconds out of each 10-second time period.)
