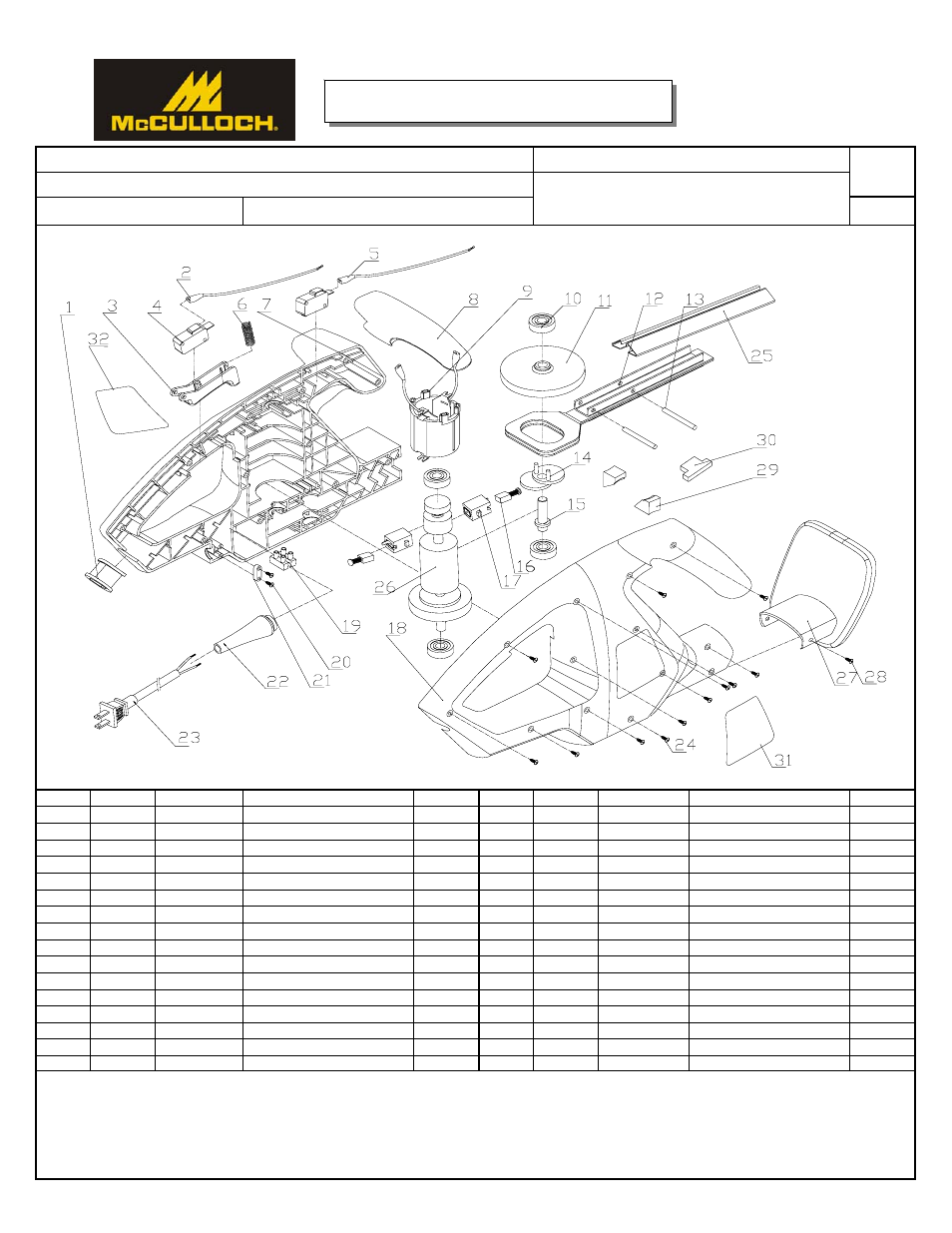

Service spare parts list, Model no, Specify model no. when ordering parts date

background image

SPECIFY MODEL NO. WHEN ORDERING PARTS

DATE

REVISED

DATE

18" Hedge Trimmer

2/15/2007

MODEL NO.

MCT203A18

N/A

No.

STK CODE

Parts No.

Description

Q

No.

STK CODE

Parts No.

Description

Q

1

6059-203A01

TUBE

1

17

6159-203A01

BRUSH HOLDER

2

2

6010-203A02

WIRE

1

18

6038-203A02

HOUSING (R)

1

3

6028-203A02

TRIGGER

1

19

6041-840001

TERMINAL BLOCK

2

4

6022-203A01

SWITCH

2

20

6SDABB04-14

SCREW

2

5

6010-203A01

WIRE

1

21

6043-982002

STRAIN RELIEF

1

6

6024-203A01

SPRING

1

22

6199-203A01

CORD GUARD

1

7

6038-203A01

HOUSING (L)

1

23

6011-203A01

POWER CORD

1

8

6028-203A01

TRIGGER

1

24

6SDABB04-20

SCREW

12

9

6261-203A03

FIELD ASS'Y

1

25

6017-203A03

BLADE COVER

1

10

6MB-608-07

BEARING

4

26

6260-203A03

ARMATURE

1

11

6073-203A01

GEAR

1

27

6262-203A01

COVER

1

12

6250-203A03

18" BLADE

1

28

6SVABB04-10

SCREW

2

13

6115-203A01

PIN

2

29

6252-203A02

GASKET

2

14

6112-203A01

ECCENTRIC SHAFT

1

30

6252-203A01

GASKET

1

15

6111-203A01

OUTPUT SHAFT

1

31

6097-203A37

LABEL (R)

1

16

6216-203A01

BRUSH

2

32

6097-203A07

LABEL (L)

1

Stocking Codes are:

A - Dealer stocked

B - Distributor stocked

C - Factory stocked

SERVICE SPARE PARTS LIST
