OM-1500−11 Page 18

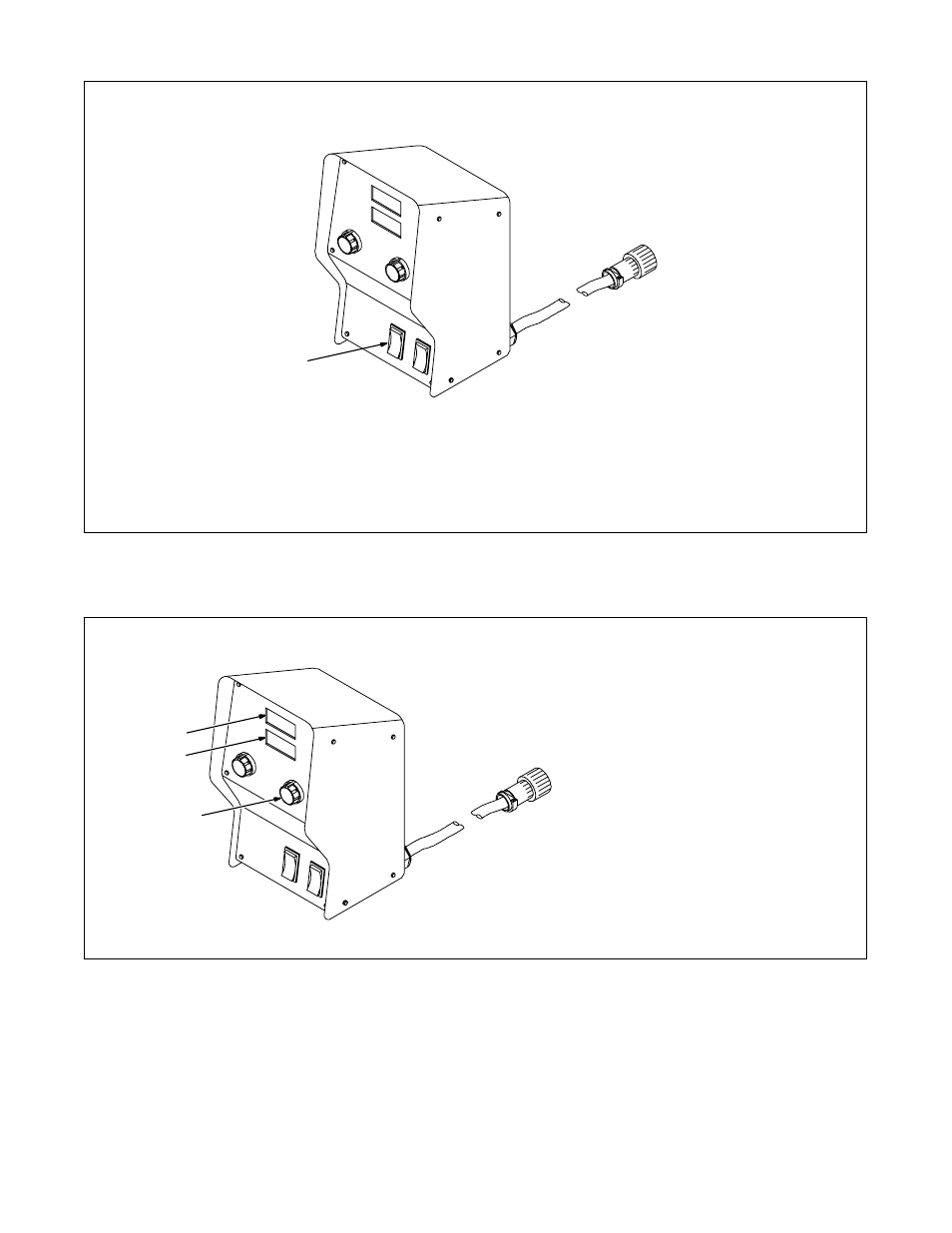

5-4. Trigger Hold Switch
1 Trigger Hold Switch
Trigger hold allows the operator to weld with-
out holding the gun trigger.
• To use the trigger hold function, place the
trigger hold switch in the On position.
• The operator must hold the trigger for a mini-
mum of 2 seconds, but not longer than 6
seconds before releasing it. Welding will
continue when the trigger is released.
• To stop welding, press the trigger again.
1
803 152
5-5. Voltage Control And Digital Meters (For Models With Meters Only)
3
803 152
1
2
1 Voltmeter
Displays actual or preset voltage
from welding power source through
the 14−pin control cable.
2
Wire Speed Meter
Factory set to display inches per
minute. If display of meters per min-
ute is desired, see Section 4-13.
3
Voltage Control
Use control to adjust voltage output
of welding power source.
