switch and the A.C. plug connector with starter button
that is used for the electric start. See Figure 3.
4. BACK OF UNIT
The Model tag is located on the back of the unit and
includes phone numbers for customer assistance:
Troy- Bilt 330-558-5520 or 1-800-520-5520. The choke
control is shown on the right side of the carburetor
cover. To the right shows the gas tank location. See
Figure 4.
5. MUFFLER
View showing the muffler and pipe at top left. See Fig-
ure 5.
NOTE: Unit is tipped up on the auger housing to
view carburetor and the carburetor bowl drain for
removal of bad gas or water from the bowl/float
area.
6. SHAVE PLATE
The adjustable shave plate can be turned around when
worn on one side. See Figure 6.

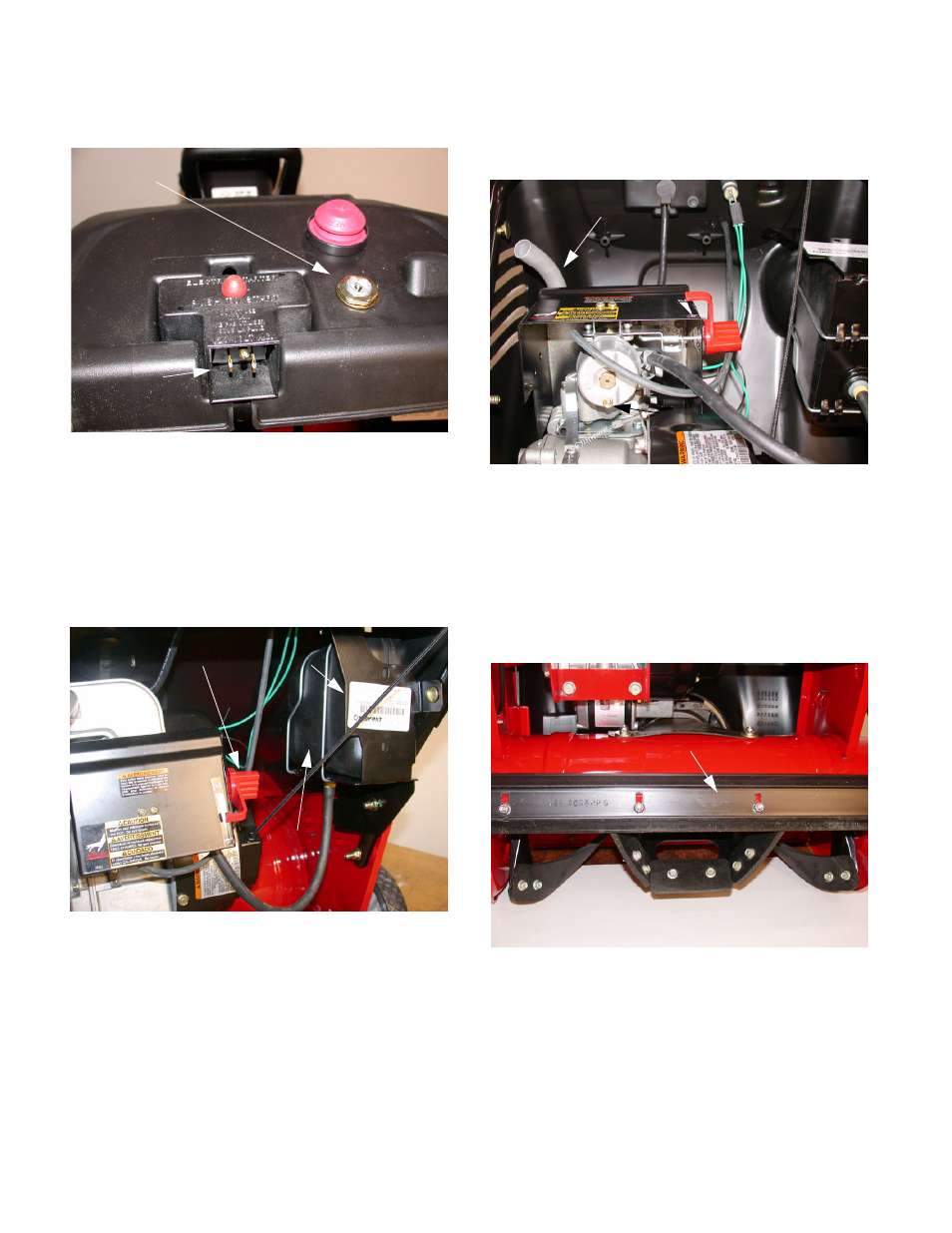

Figure 3
Key Switch
110 A/C Plug
Figure 4
Choke Control
Gas Tank
Model Plate
Figure 5
Muffler Tailpipe
Float Bowl Drain
Figure 6
Reversable Shave Plate
