Snow Thrower Model Number #31AS2B5- 711 Serial
Number 1E074B20005
NOTE: The equipment that was used to write
this section was a prototype and was without
labels. There may be subtle differences between
prototypes and production equipment but the
disassembly procedures preformed will remain
the same.
GENERAL INFORMATION
Tecumseh Engine HSSK 50 designated as a (C)
engine with 125 hours life expectancy. Oil recommen-
dation is 5W30 - Sump capacity is 21 ounces
This is a four-cycle, horizontal crankshaft, air-cooled
engine equipped with a 120 V A.C. operated electric
starter.
NOTE: Refer to the engine manual for start and
stop and maintenance procedures.
Yard-Man Version

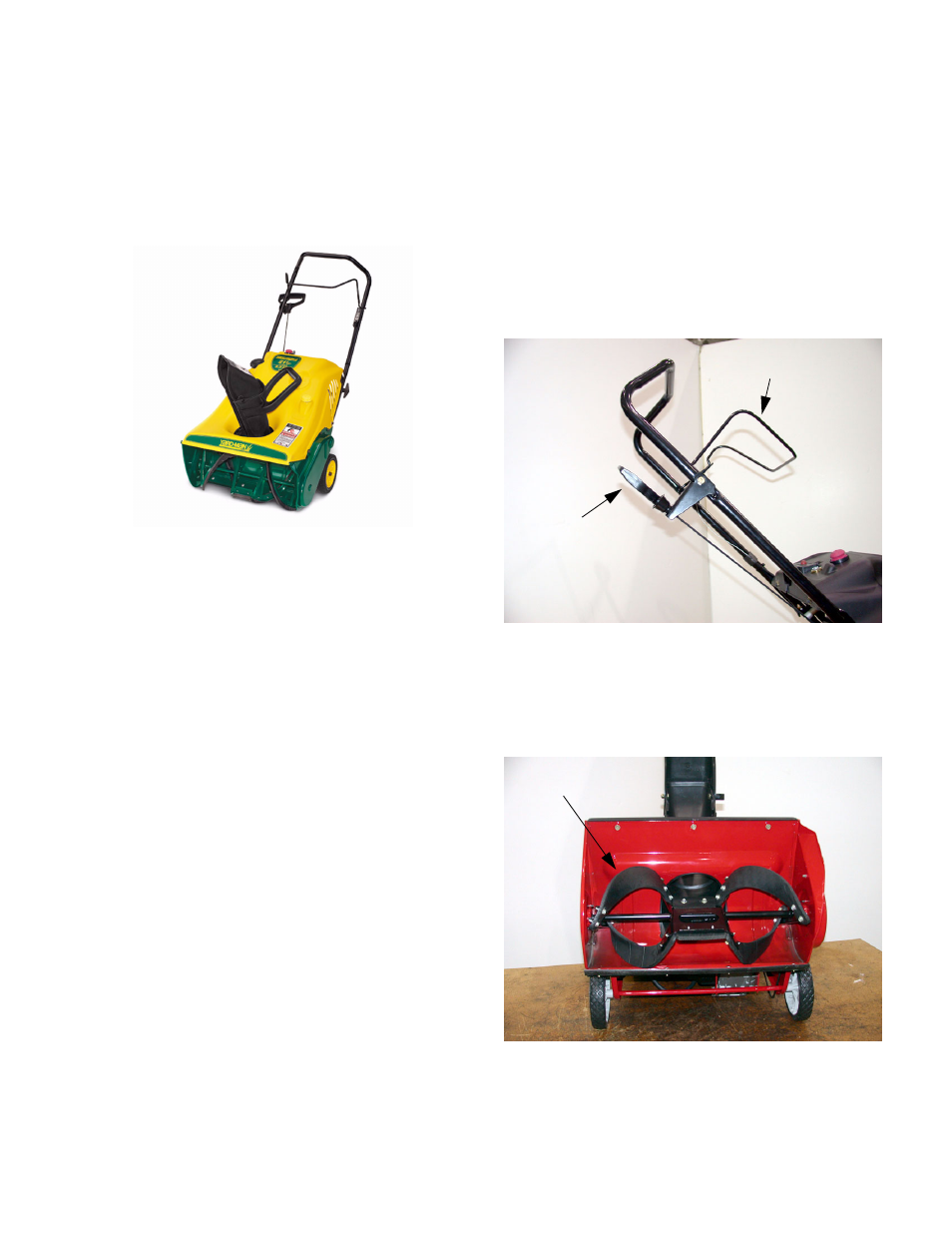

1. CONTROLS
The auger control bail and the pull start handle are
mounted on the main handle for easy accessibility. The
pull rope and mitten-grip handle is secured to the right
handle with a bracket to keep the cord away from other
items and allow for direct and easy in line pull. See Fig-
ure 1.
2. AUGER
The auger assembly is also easily accessible for main-
tenance and periodical replacement of the rubber flails
on the auger assemblies. See Figure 2.
3. A/C STARTER
From the rear there is easy access to the start/stop
Figure 1
Control Bail
Pull Start
Figure 2
Rubber Flails
31AS2B5-711 Snow Thrower
