- 8 -

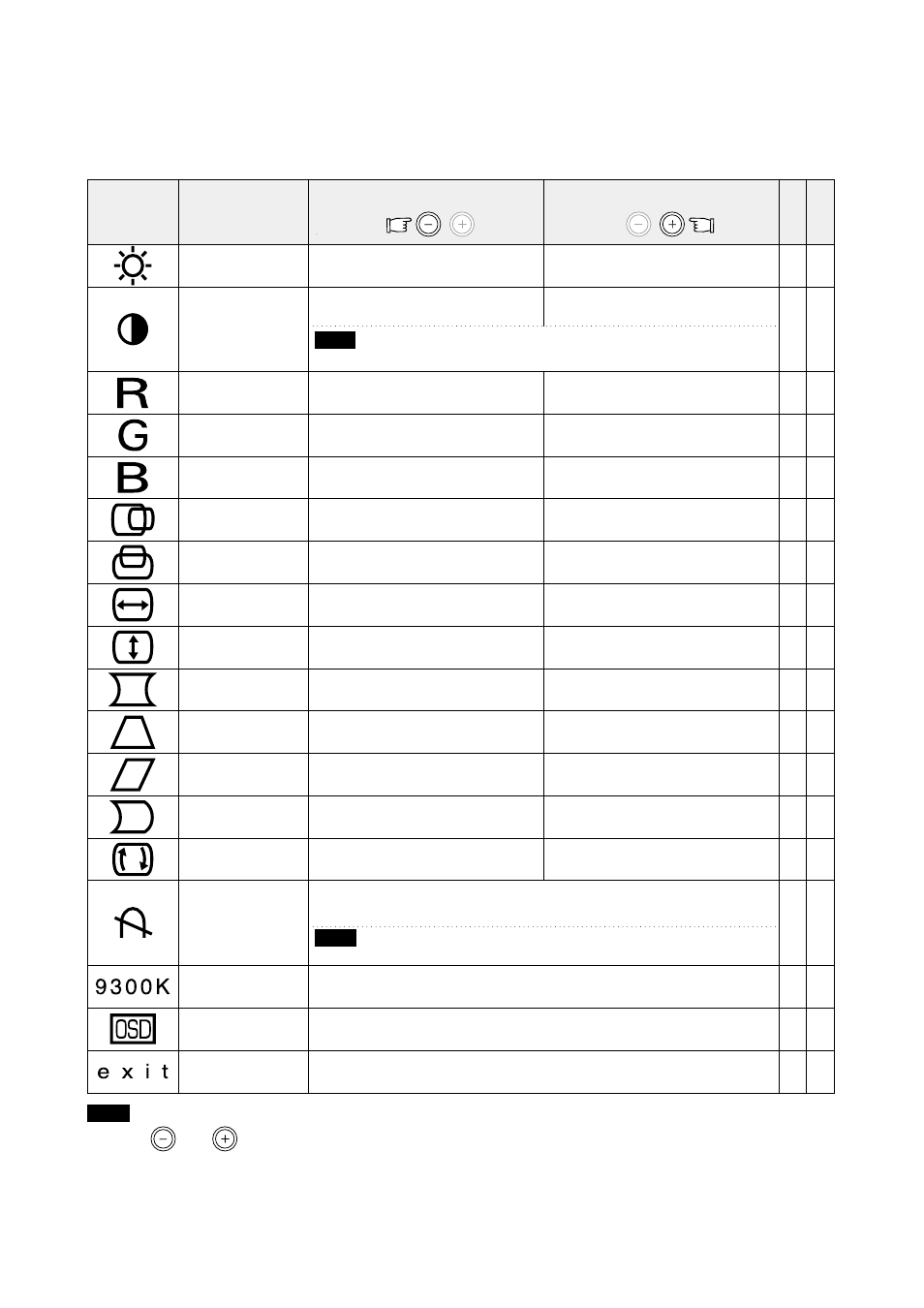

4.2 Adjustment Items
Item
Icon
Press the Minus Button Press the Plus Button
NOTE
NOTE
NOTE
Item
Brightness
Contrast
Red Color Control
Green Color Control
Blue Color Control
Horizontal position
Vertical position
Horizontal size
Vertical size
Pincushion / Barrel
Trapezoid
Parallelogram
Bow
(Pincushion Balance)
Rotates
Degauss
Color Temperature
OSD
EXIT
To decrease the brightness.
To decrease the contrast.
To decrease the red contrast.
To decrease the green contrast.
To decrease the blue contrast.
To move the image on the screen to
the left.
To move the image down.
To narrow the width of the image on
the screen.
To narrow the height of the image on
the screen.
To contract the center of the image.
To decrease the width at the top of the
screen image and to increase the
width at the bottom.
To make the screen slant to the left.
To move the top and bottom of the
screen image to the right.
To rotate the image counterclockwise.
To increase the brightness.
To increase the contrast.
To increase the red contrast.
To increase the green contrast.
To increase the blue contrast.
To move the image on the screen to
the right.
To move the image up.
To expand the width of the image on
the screen.
To expand the height of the image on
the screen.
To expand the center of the image.
To increase the width at the top of the
screen image and to decrease the width
at the bottom.
To make the screen slant to the right.
To move the top and bottom of the
screen image to the left.
To rotate the image clockwise.
Without OSD screen, push to adjust the contrast.
Select the Color Temperature icon on "Item select screen" and push "SELECT"
button.
There are 3 background colors (Blue, Black, and White).
These can be selected by "SELECT" button after the selection of "OSD" on "Item select
screen"
To exit OSD screen. Select EXIT on "Item select screen",
then push "SELECT" button.
Select the degauss icon on "Item select screen" and push "SELECT" button.
It will eliminate the stray magnetic field and correct the scan of the electron beam,
which affect the purity, focus and convergence.
Allow a minimum interval of 20 minutes to elapse between uses of the degauss function.
A. Press and button together, to restore to the factory preset.
B. Set data does not change by the change of the signal timing.
X: Available
X
X
X
X
X
X
X
X
X
X
X
X
X
X
–
–
–
–
X
B A
X
X
X
X
X
X
X
–
X
X
–
