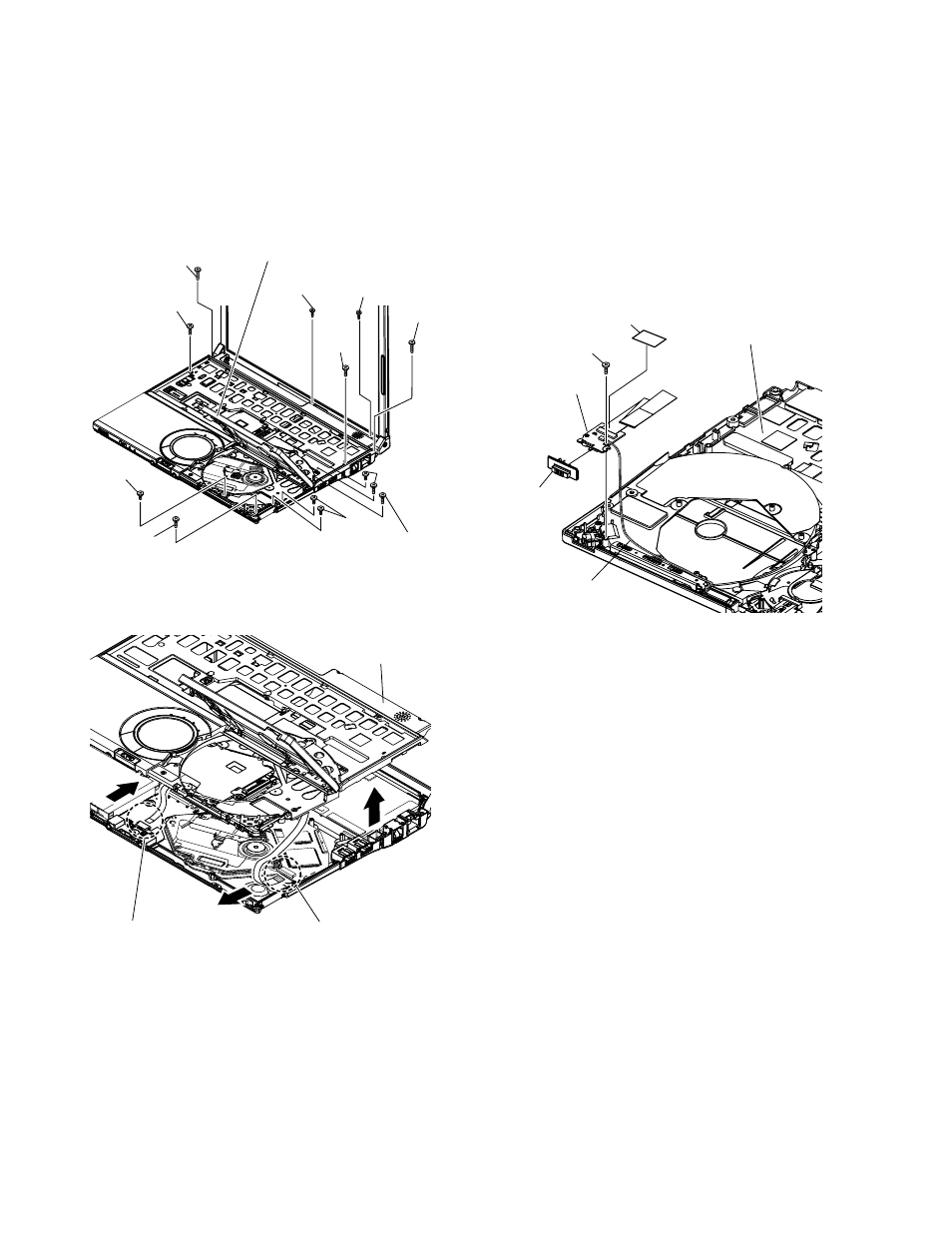

4. Remove the 3 Screws (I), 2 Screws (J), 2 Screws (K) and 2
Screws (L) from the Top Case.
Screw(I):DXQT2+E6FNL(N13)
Screw(J):DXQT26+D8FCL(N16)
Screw(K):DXQT2+E6FCL(N12)
Screw(L):DFHE5025XA(N1)
Screw(R):DXQT2+E12FNL(N11)
Screw(S):DXQT2+E6FNL(N13)
Screw (R)
Screw (S)
Screw (J)
Screw
(J)
Screw (I)
Screw (I)
Screw (L)
Screw (L)
Screw (K) Screw (K)
Screw
(I)
Disc Cover
5. Lift up the Top Case, remove the Pad FFC and then
remove the Top Case.
FFC (SW)
Top Case
FFC (PAD)
6.2.5. Remove the SW Board
Preparation : perform the section 6.2.1. to 6.2.4. first.
1. Peel off the Tape.
2. Remove the Solenoid Cable.
3. Remove the 1 Screw (Q) and then remove the SW Board.
Screw(Q):DXHM0057ZA (N7)
Note:
Note it that the Disc Eject Knob comes off at the same
time.
Top Case
Screw (Q)
Disc Eject Knob
Switch Board
Solenoid Cable
Tape
