Genuine Miller ® Options
Weld Ammeter and Voltmeter Kit
#195 131 Field
Panel-mounted analog meters
monitor welding output.
Installation time: 35 minutes
Battery Voltmeter
#195 454 Field
Monitors battery charging circuit.
Polarity Reversing Switch Kit
#043 942 Field
Changes DC polarity without the use of tools.
Installation time: 35 minutes
AC/DC Polarity Reversing Switch Kit
#195 095 Field
Select AC output or DC polarity without
the use of tools.
Cold Weather Starting Aid Kit
Note: Perkins 404D.22 models come standard
with glow plugs.
#195 056 Field
Perkins. 120 V block heater.
#195 307 Field
Deutz D2011L03i/D2011L04i. 12 V intake
manifold heater.
#195 086 Field
Deutz D2011L03i/D2011L04i. 120 V oil
pan heater.
3-Phase Power Generator Factory
(Deluxe CC/CV model only)
For Big Blue 400 CC/CV. 15,000 watts.
For Big Blue 500 CC/CV. 20,000 watts.
Adds three-phase, 240 V power to CC/CV
units. 12 kW, 120/240 V single-phase
power from a 50-amp receptacle. Optimum
kW performance achieved while not welding.
This option also includes a 50-amp on/off
circuit breaker for both single- and three-
phase power, and a strain relief for hard
wiring into the unit.
Note: Available as factory option. See Ordering
Information on back page.
For matching plug, order #119 172

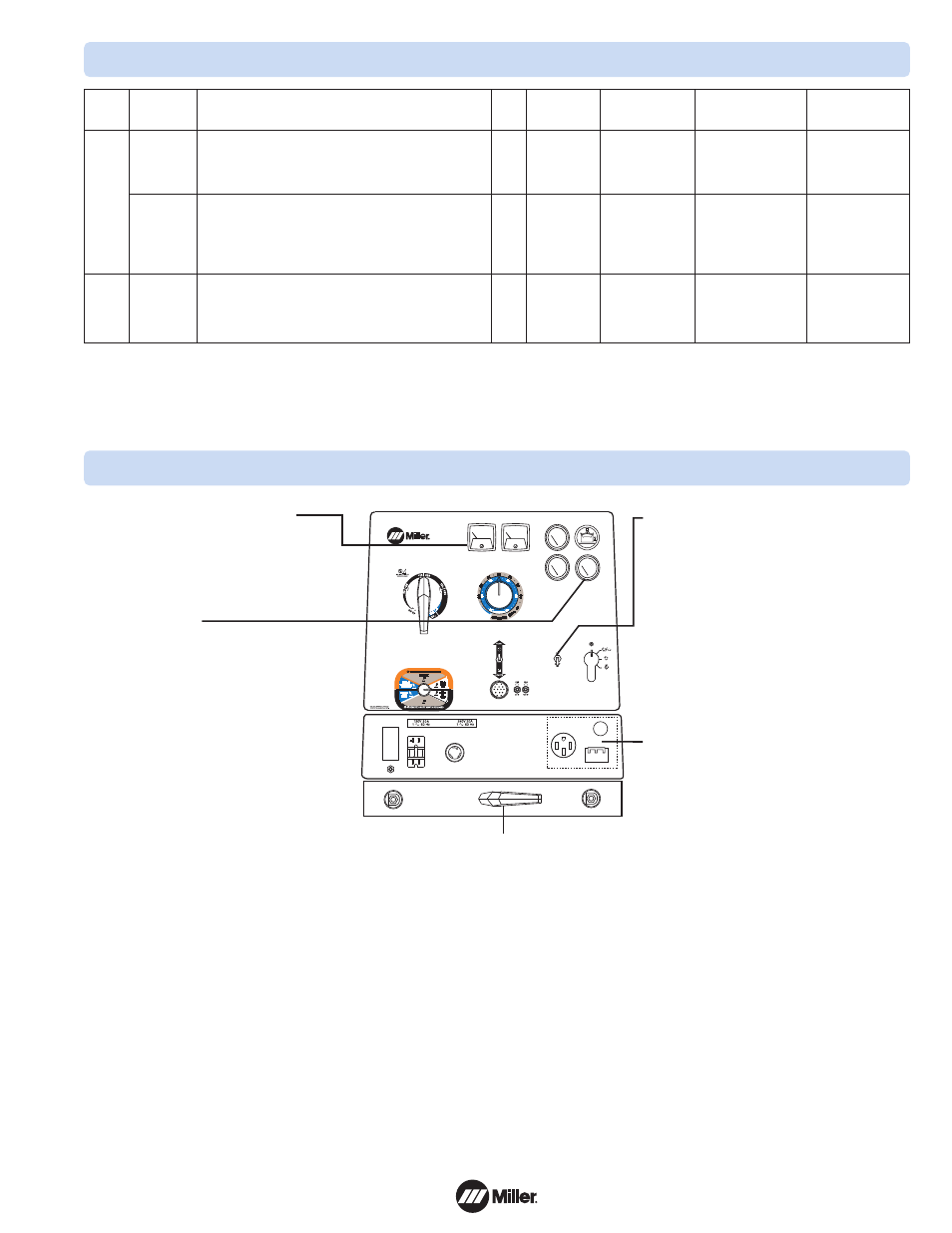

START
RUN
RUN/IDLE
OFF
5
Engine
Brand
Perkins
404D.22
Deutz
D2011L03i
Deutz
D2011L04i
Model
Big
Blue
400
Big
Blue
500
Features
EPA Tier 4i compliant, indirect-injected, liquid-cooled engine
with full load sound levels of 73.2 dB @ 7 m (98 Lwa).
Right-side service access with intervals of 500 hours for oil
and filters.
EPA Tier 4i compliant, direct-injected, air/oil-cooled engine
with full load sound levels of 76.8 dB @ 7 m (101.7 Lwa).
Right-side service access with intervals of 1000 hours for
oil and filters. Approved underground operation with the
purchase of a MSHA (30 CFR part 7) certificate.
EPA Tier 4i compliant, direct-injected, air/oil-cooled engine
with full load sound levels of 76 dB @ 7 m (101 Lwa).
Right-side service access with intervals of 1000 hours for
oil and filters.
Type
4-cylinder,
industrial,
liquid-cooled
diesel
3-cylinder,
industrial,
air/oil-
cooled
diesel
4-cylinder,
industrial,
air/oil-cooled
diesel
Engine Speeds
Weld: 1850 RPM
Idle: 1250 RPM*
Weld: 1850 RPM
Idle: 1250 RPM*
Weld: 1850 RPM
Idle: 1250 RPM*
HP
32.6
32.0
48.6
Capacities
Fuel: 25 gal. (95 L)
Oil: 9 qt. (8.5 L)
Coolant: 9 qt. (8.5 L)
Fuel: 25 gal. (95 L)
Oil: 6.2 qt. (5.9 L)
Coolant:
Integrated oil
Fuel: 25 gal. (95 L)
Oil: 9 qt. (8.5 L)
Coolant:
Integrated oil
Automatic Engine
Shutdowns
Low Oil Pressure,
High Coolant
Temperature,
Low Fuel Level
Low Oil Pressure,
High Coolant
Temperature,
Low Fuel Level
Low Oil Pressure,
High Coolant
Temperature,
Low Fuel Level
Engine Specifications
(Subject to change without notice.)
*Optional on select models.
