Miller Electric 400 - Manual (Page 3)

3
4
5
9
10
12
11
13
15
16
17
18
14
6
7
8
3
1
2
19
START
RUN
RUN/IDLE
OFF

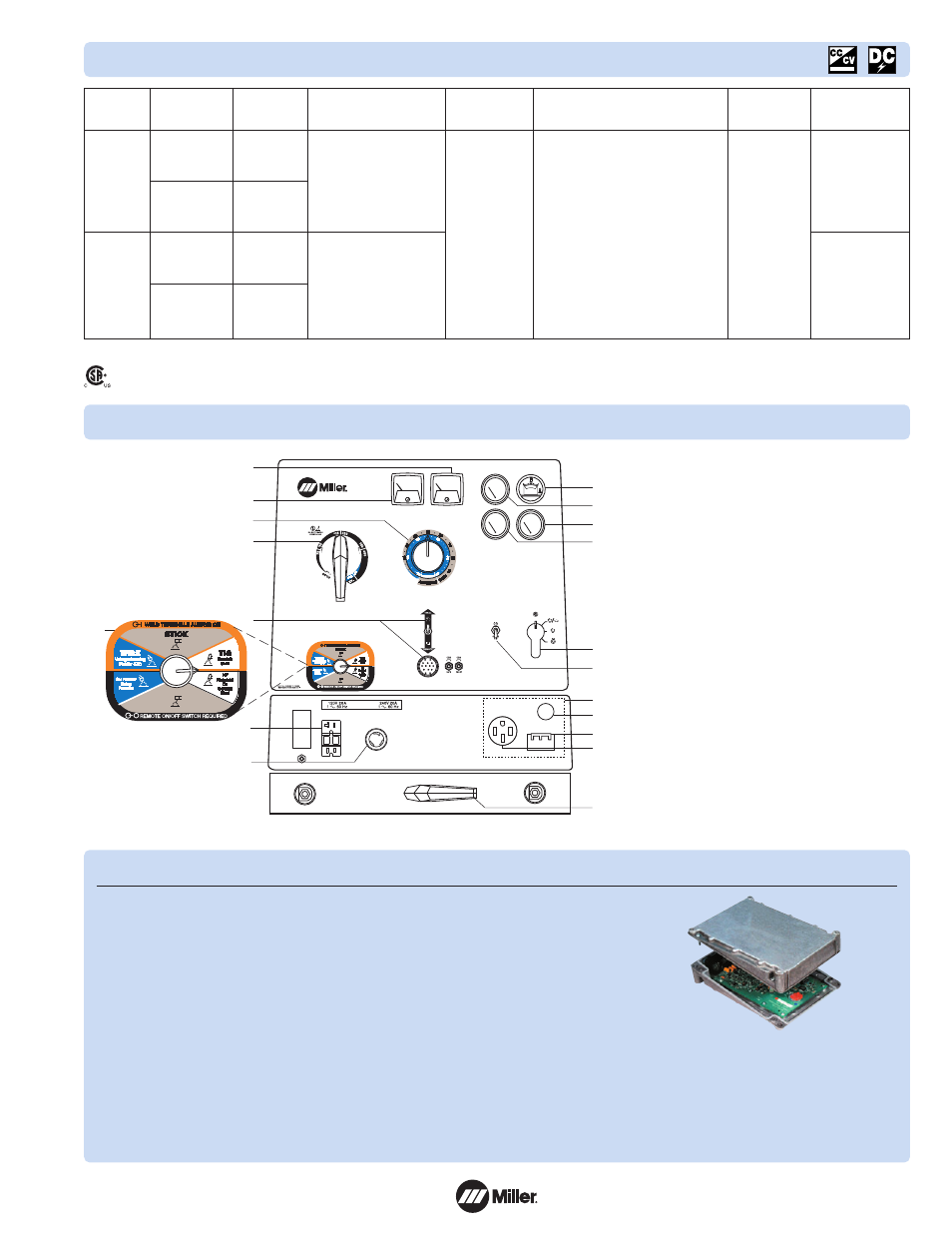

Big Blue ® 400 and 500 CC/CV Control Panel
1. DC Ammeter
2. DC Voltmeter
3. Amperage/Voltage Adjust Control
4. Amperage Range Switch
5. Amperage/Voltage Adjust Switch and
Remote Amperage/Voltage Adjust Receptacle
6. Process/Contactor Selector Switch
7. 120 VAC, 20 A GFCI Duplex Receptacle
8. 240 VAC, 30 A TwistLock Receptacle
(NEMA L6-30)
9. Fuel Gauge/Hour Meter/Oil Change Interval
Engine Shutdown Indicator
10. Engine Oil Pressure Gauge
11. Battery/Voltmeter*
12. Engine Coolant Temperature Gauge
13. Engine Control Switch
14. Starting Aid Switch
(standard on Perkins model)
15. 3-Phase Power Generator Option
16. Strain Relief
17. 50 A, 3-Phase Circuit Breaker
18. 50 A, 120/240 V Receptacle (NEMA 14-50)
19. Polarity Switch*
*Optional.
Big Blue ® 400 and 500 CC/CV Specifications
(Subject to change without notice.)
Model
Big Blue
400 CC/CV
Big Blue
500 CC/CV
Welding
Mode/Process
CC/DC
(Stick/TIG)
CV/DC
(MIG/FCAW)
CC/DC
(Stick/TIG)
CV/DC
(MIG/FCAW)
Weld Output Rated at
104˚ F (40˚ C)
400 A at 36 V (14.4 kW),*
100% Duty Cycle
450 A at 38 V (17.1 kW),*
60% Duty Cycle
500 A at 34 V (17 kW),
40% Duty Cycle
500 A at 40 V (20 kW),*
100% Duty Cycle
550 A at 42 V (23.1 kW),
60% Duty Cycle
600 A at 34 V (20.4 kW),
40% Duty Cycle
Weld Output
Range
15 – 500 A
14 – 40 V
20 – 600 A
14 – 40 V
Max. Open-
Circuit Voltage
95
Weight
(without fuel)***
Perkins:
1545 lb. (701 kg)
Deutz:
1655 lb. (751 kg)
Deutz:
1695 lb. (769 kg)
Dimensions**
H: 43 in.
(1092 mm)
W: 28.5 in.
(724 mm)
D: 65.125 in.
(1654 mm)
Generator Output
Rated at 104˚ F (40˚ C)
Peak: 5500 watts
Continuous: 4000 watts, 1-phase,
34/17 A, 120/240 VAC, 50/60 Hz
while welding
Additional Generator Power for
Deluxe Models (while NOT welding)
Big Blue 400:
3-phase: 15 kW, 36 A, 240 VAC or
1-phase: 12 kW, 50 A, 120/240 VAC
Big Blue 500:
3-phase: 20 kW, 48 A, 240 VAC or
1-phase: 12 kW, 50 A, 120/240 VAC
Additional Features
One MIG welding range allows precise voltage
control for welding with .023 –.120 inch
(0.6 – 3.2 mm) wires.
A multi-colored process selector control
allows quick and easy process changes without
having to use multiple switches.
14-pin remote control allows precise adjustment
of amperage or voltage, along with contactor
control, without walking back to the machine.
The Vault — Superior Circuit Board Design
Our critical circuit boards are engineered
to carry
low power and low heat to reduce
thermal stress and minimize expansion and
contraction. In contrast, our competitor’s
boards carry high power and high heat,
making them more vulnerable to failure.
“The Vault” Makes Upgrading to Miller ®
CC/CV Units Worry-Free
Concerns with circuit board reliability have
resulted in some operators steering clear of
CC/CV welder/generators — even though
they offer a superior arc and multiple welding
processes. Miller circuit board reliability
isn’t a concern since all Big Blue multiprocess
industrial engine drives feature the Vault.
Created out of two aluminum halves sealed
with silicone, as well as watertight harness
connections, the Vault provides a clean circuit
board environment, protecting the electronics —
and controlling output — in heavy industrial
applications. No other competitor protects their
electronics with a sealed vault, leaving critical
circuit boards exposed to harsh elements that
can disrupt the machine’s electronics, and
therefore, its operation.
*Meets NEMA and IEC ratings. **Additional 7 in. (178 mm) to top of exhaust. ***Additional 190 lb. (86 kg) when fuel tank is full.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards.
