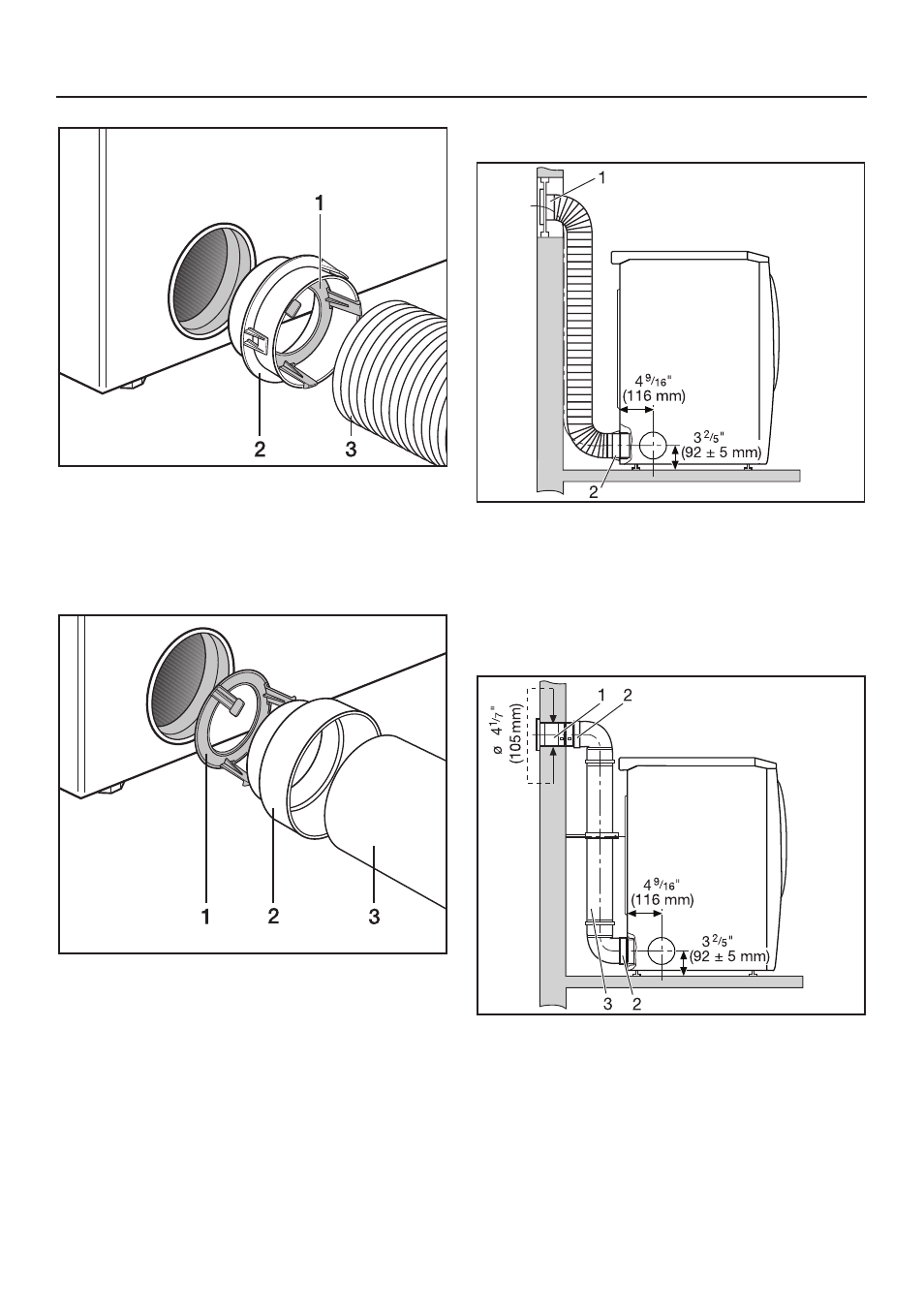

^ Install the exhaust hose 3 in the dryer
using the adapter 2 and the
restriction insert 3.
If using the gray adapter without clips :
^ Plug the restriction insert 1 into the
gray adapter without clips 2 and
connect the pipe 3.
Window connection (example)
1 Window duct
2 Connector for the rigid or flexible
exhaust hose
Wall connection (example)
1 Wall pipe (Installation sheet supplied
with the Miele wall pipe)
2 Connector
3 Rigid pipe
Ducting
