— 7 —
ATTENTION
This product is intended to be mounted to a well-grounded
mounting surface such as a metal panel.
Connecting the Power Supply
The M12/M23 A-coded 5-pin male connector on the TN-5308-LV/MV front
panel is used for the DC power input. You have to prepare a power cord with
M12/M23 A-coded 5-pin female connector to connect the switch to the DC
power input.

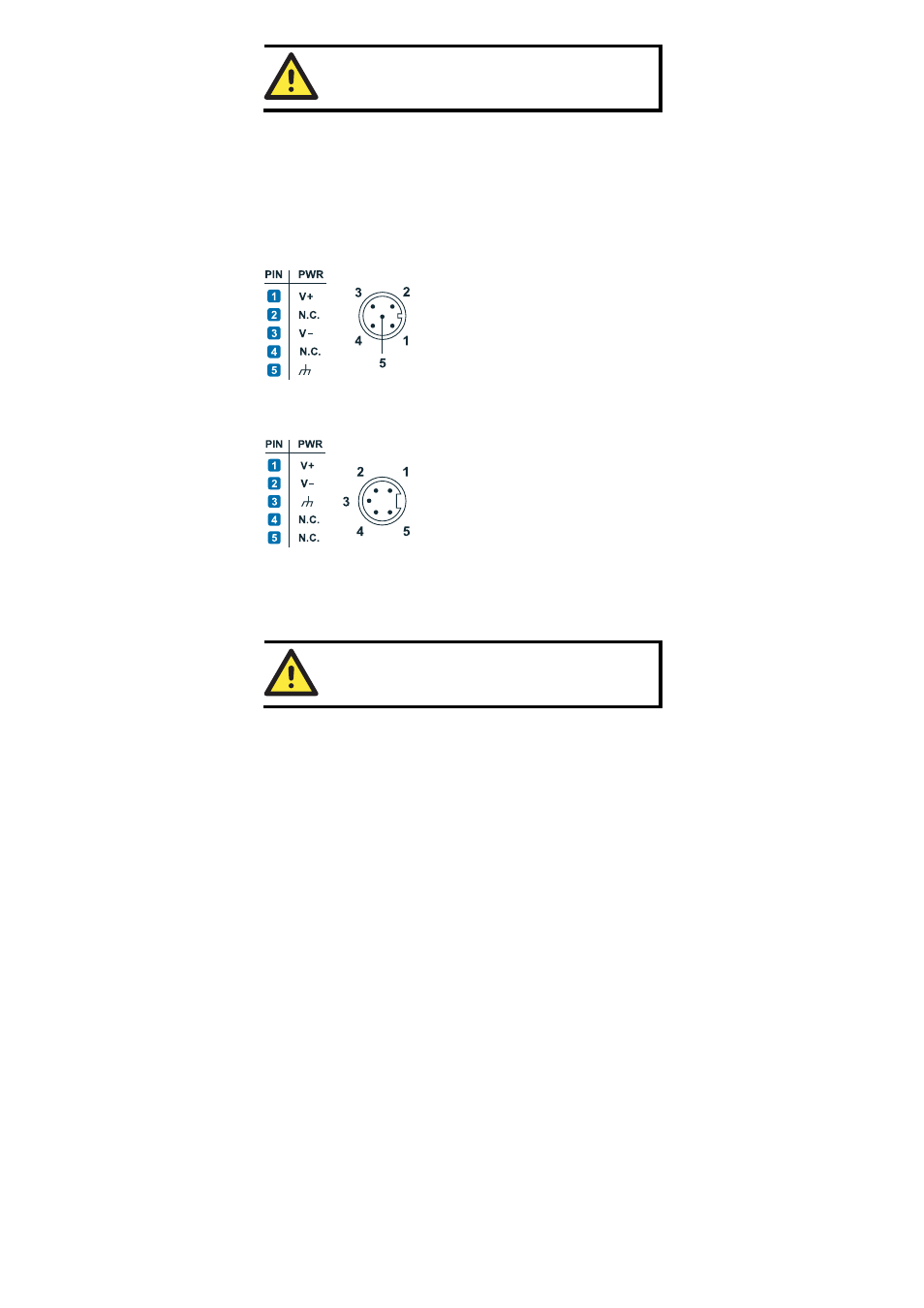

Pinouts for the power input port on the TN-5308-LV
N.C. : Not connected
Pinouts for the power input port on the TN-5308-MV
STEP 1: Plug your power cord connector to the power input port of the
TN-5308 switch.
STEP 2: Screw the nut on your power cord connector to the power input
connector on the switch to ensure a tight connection.
ATTENTION
Before connecting the TN-5308 to the DC power input, make
sure the DC power source voltage is stable.
