— 3 —

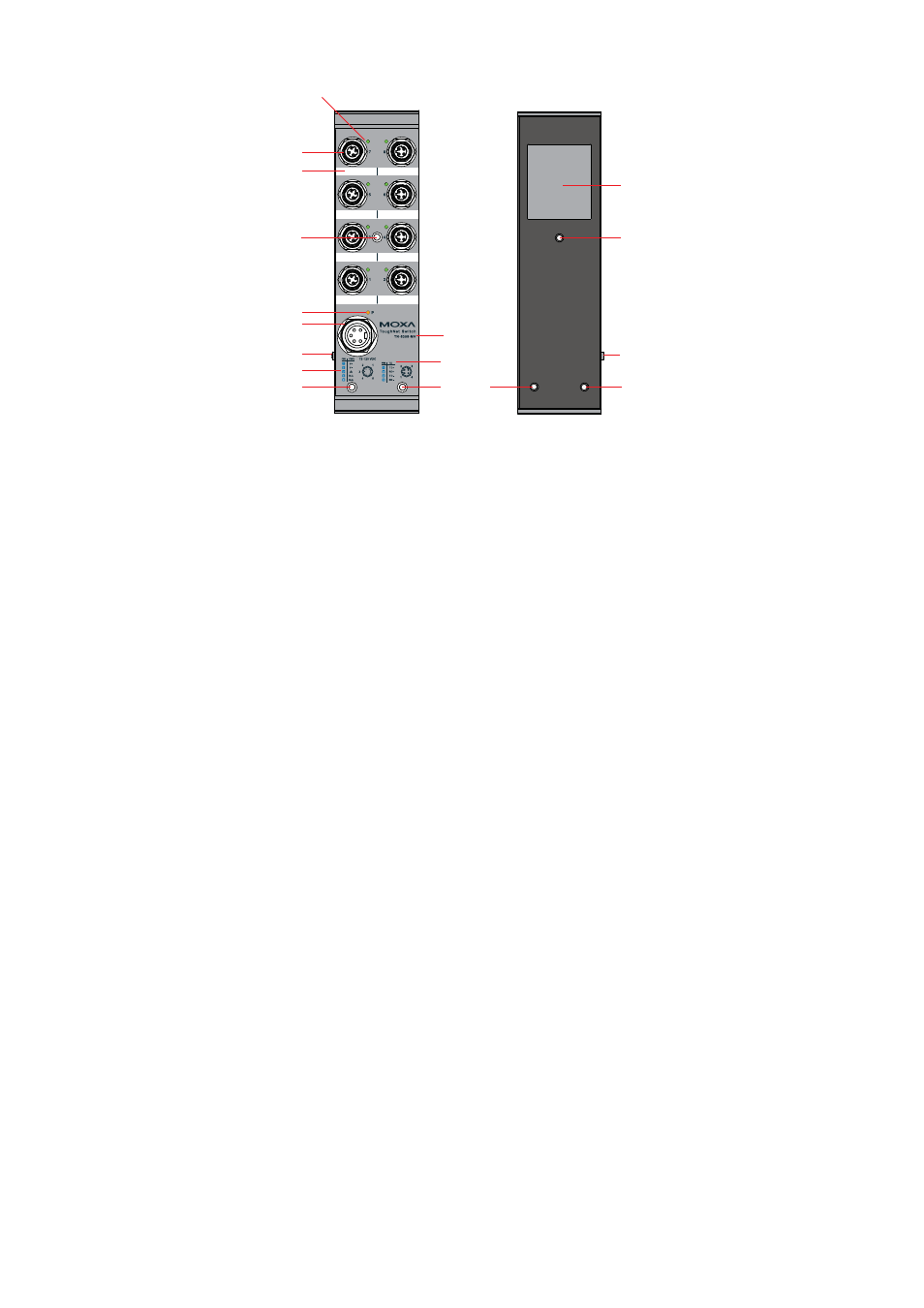

TN-5308-MV Panel Layouts
Front Panel View
Rear Panel View
1
2
3
4
4
4
4
4
4
5
6
7
7
8
9
10
11
1.
TP port’s 10/100 Mbps LED
2. 10/100BaseT(X)
port
(female 4-pin shielded M12 connector with D coding)
3. Port
label
4.
Screw holes for panel mounting kit or DIN rail mounting kit
(there are 3 holes: top middle, bottom left, and bottom right)
5.
Power input LED
6.
Power input port
(male 5-pin shielded M23 connector with A coding)
7. Grounding
screw
8.
Power input port pin assignment
9. Model
name
10. TP port pin assignment
11. Model
label
