OM-316 Page 30
SECTION 8 − WELDING METHODS & TROUBLESHOOTING
mod5.1* 9/92
A. Welding Methods

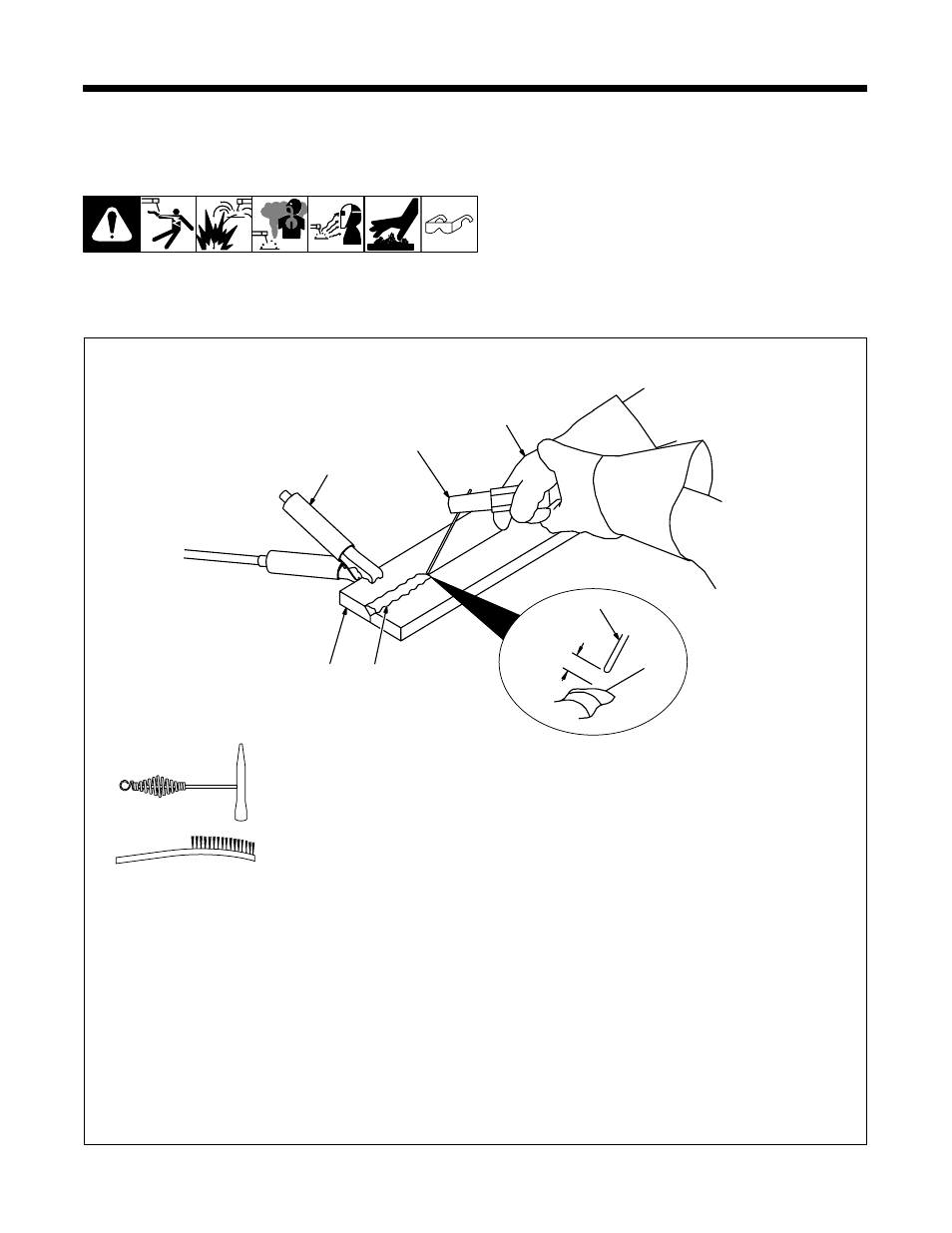

8-1. Shielded Metal Arc Welding (SMAW) Procedure
151 593
1 Workpiece
Make sure workpiece is clean before welding.
2
Work Clamp
Place as close to the weld as possible.
3
Electrode
A small diameter electrode requires less current than a large one.
Follow recommendations of electrode manufacturer when setting
weld amperage (see 8-2).
4
Insulated Electrode Holder
5 Electrode Holder Position
6 Arc Length
Arc length is the distance from the electrode to the workpiece. A
short arc with correct amperage will give a sharp, crackling sound.
Y Welding current starts as soon as electrode touches the
workpiece.
7 Slag
Use a chipping hammer and wire brush to remove slag. Remove
slag and check weld bead before making another weld pass.
1
4
3
5
2
7
6
Tools Needed:
