A complete Parts List is available at www.MillerWelds.com
OM-230 693 Page 30

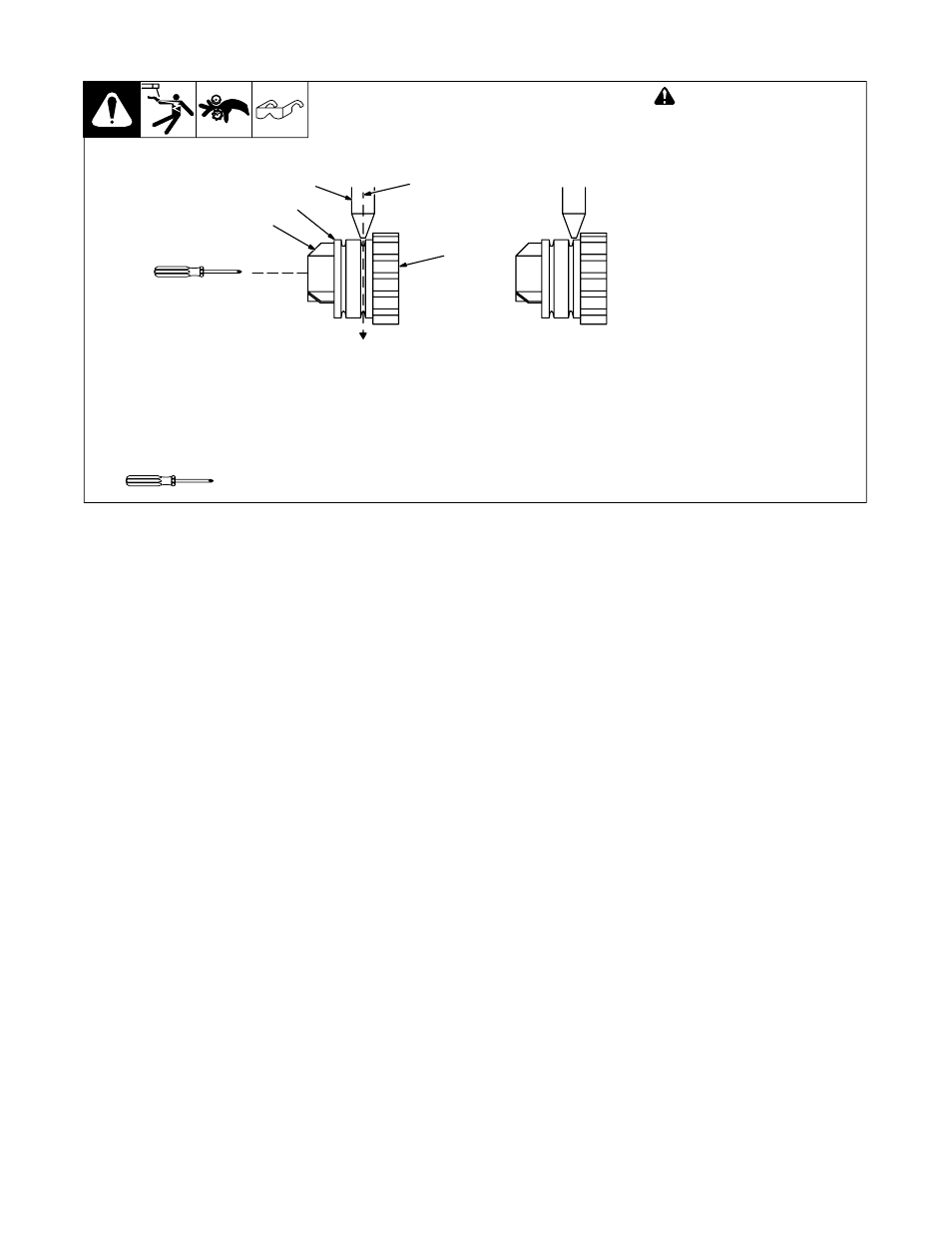

6-4. Aligning Drive Rolls and Wire Guide
! Turn Off power.
View is from top of drive rolls
looking down with pressure
assembly open.
1 Drive Roll Securing Nut
2 Drive Roll
3 Wire Guide
4 Welding Wire
5 Drive Gear
Insert screwdriver, and turn screw
in or out until drive roll groove lines
up with wire guide.
Close pressure roll assembly.
Ref. 800 412-A
Correct Incorrect
4 3
2
1
5
Tools Needed:
