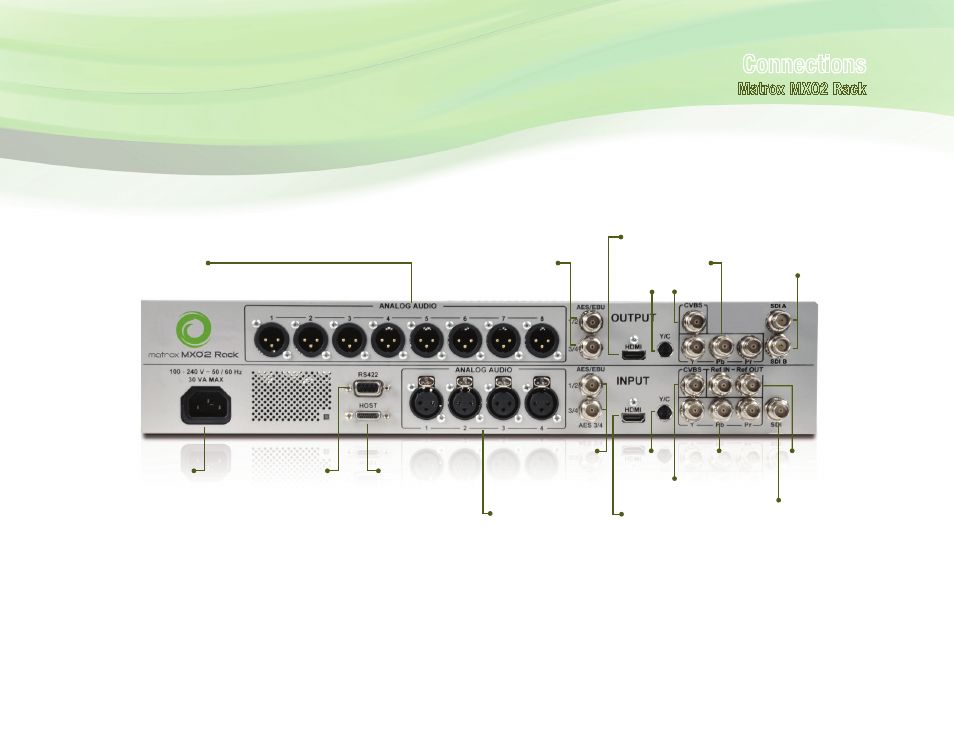

Matrox MXO2 Rack Connections
10
Matrox MXO2 Family for PC Product Guide
connections
Matrox Mxo2 rack
XLR - 8 channels of
balanced audio
Analog component
HD/SD
Two SDI – HD/SD with up to 8
channels of embedded audio
per output
Power connector
RS422
Host interface
XLR - 4 channels of
balanced audio
Y/C
Y/C
SDI – HD/SD with
up to 8 channels of
embedded audio
HDMI – HD/SD with up to 8
channels of embedded audio
HDMI – HD with up to 8
channels of embedded
AES/EBU – 4 channels via 2
BNC connectors
Composite
Composite
Genlock – bi-level and
tri-level genlock via a
single BNC connector
with loop through
AES/EBU – 4 channels
via 2 BNC connectors
Analog component
HD/SD
