AVAILABLE

ILLICO TERMINALS

9

AVAILABLE

ILLICO TERMINALS

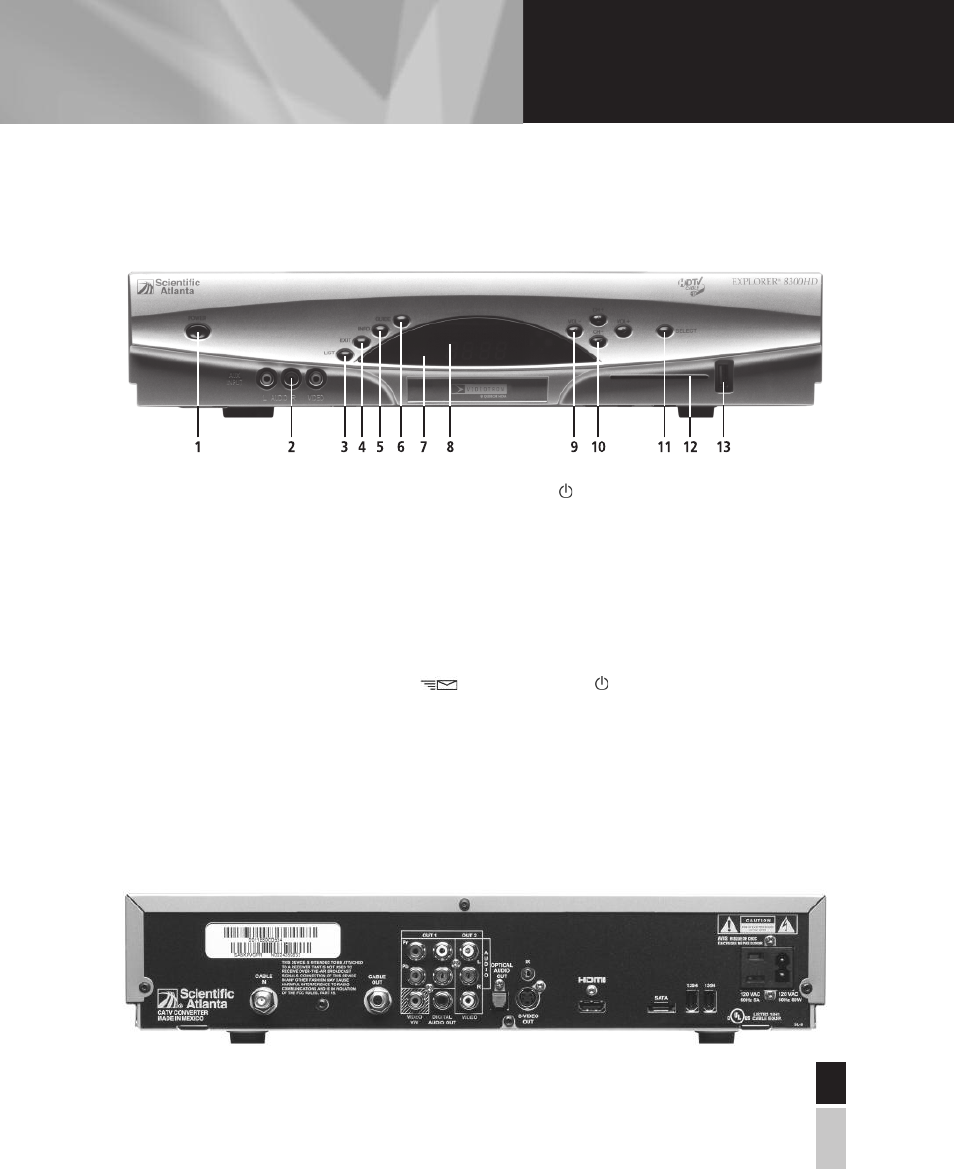

1 Power

Provides power to the unit. The

symbol appears in the upper right portion

of the display when power is on.

2 Audio/Video IN

Allows connection of an auxiliary A/V device. Not yet operational.

3 LIST

Displays the list of recorded programs.

4 EXIT

Exits menus, the Program Guide, and program information.

5 INFO

Provides information on settings and programs.

6 GUIDE

Displays the on-screen Program Guide

7 IR Sensor

Receives the infrared signal from the remote.

8 LED Display

Displays the time, the current channel number and the following information:
Message (

) • HDTV • POWER ( ) • Picture resolution (1080i, 720p,

480p, 480i) • RECORD • AUTO (Automatically selects the aspect ratio
compatible with your TV.)

9 VOL+ and VOL–

Increases and decreases volume.

10 CH+ and CH–

Scrolls up and down through the channels.

11 SELECT

Accesses your on-screen selection.

12 Smart Card Slot

Will eventually allow for transactions. Not yet operational.

13 USB Port

Connects to peripheral devices. There are no compatible devices yet.

EXPLORER

®

8300HD
