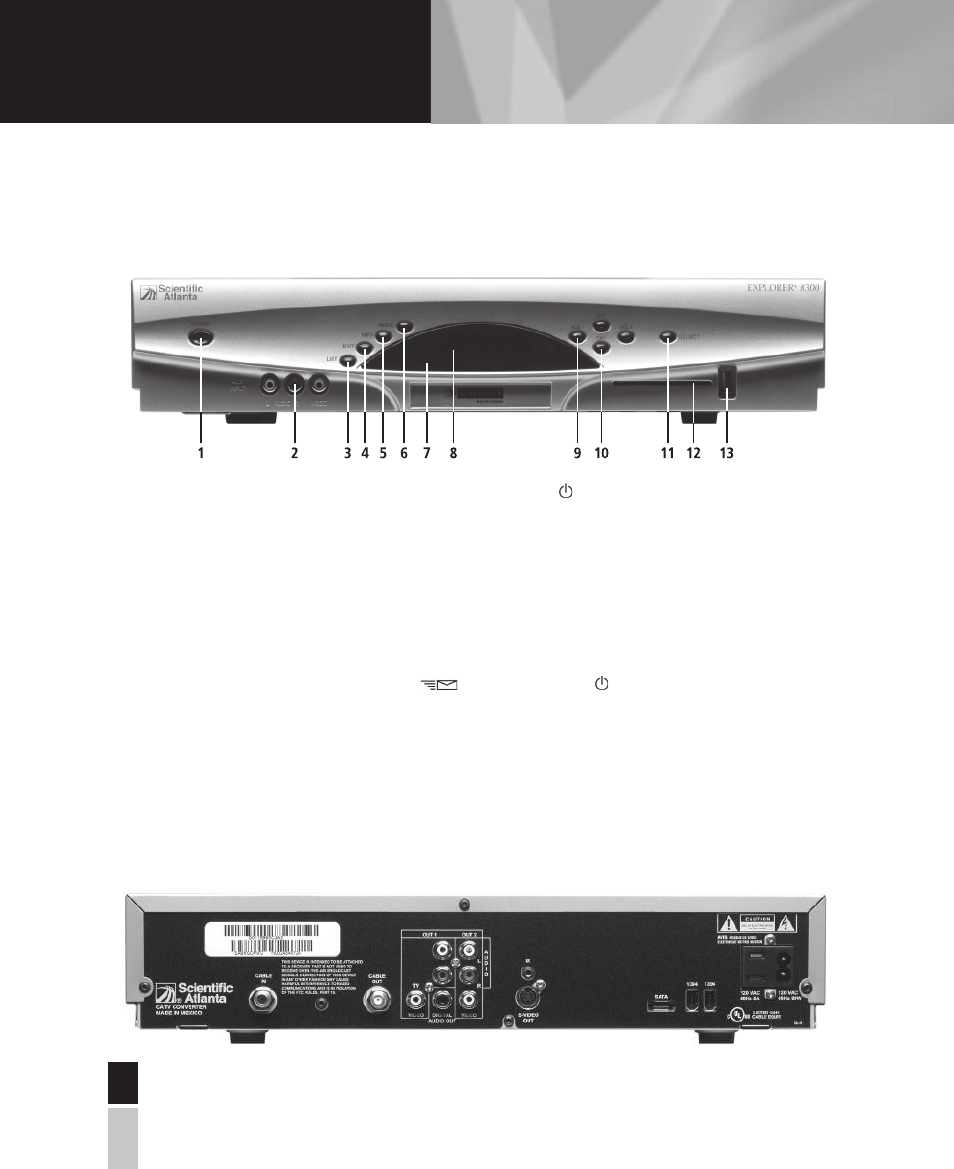

1 Power Provides power to the unit. The symbol appears in the upper right portion
of the display when power is on.
2 Audio/Video IN Allows connection of an auxiliary A/V device. Not yet operational.
3 LIST Displays the list of recorded programs.
4 EXIT Exits menus, the Program Guide, and program information.
5 INFO Provides information on settings and programs.
6 GUIDE Displays the on-screen Program Guide
7 IR Sensor Receives the infrared signal from the remote.
8 LED Display Displays the time, the current channel number and the following information:
Message (
) • HDTV • POWER ( ) • Picture resolution (1080i, 720p,
480p, 480i) • RECORD • AUTO (Automatically selects the aspect ratio
compatible with your TV.)
9 VOL+ and VOL– Increases and decreases volume.
10 CH+ and CH– Scrolls up and down through the channels.
11 SELECT Accesses your on-screen selection.
12 Smart Card Slot Will eventually allow for transactions. Not yet operational.
13 USB Port Connects to peripheral devices. There are no compatible devices yet.
