6
Chapter 3 Network Application
3-1 Stand Alone

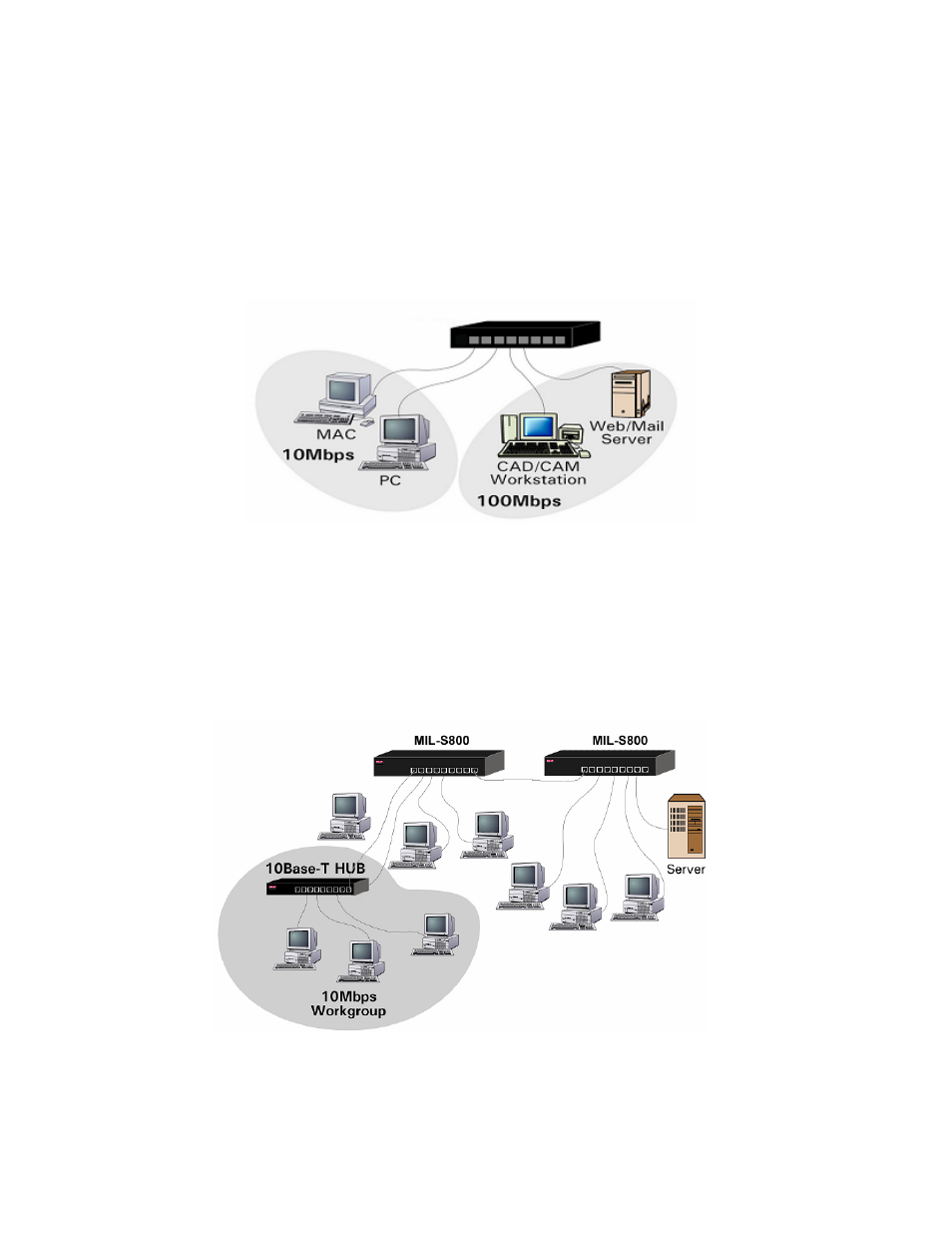

The application of a simple standalone switch is illustrated below. The maximum distance between the switch
and the workstation is 100 meters.
Figure 6. The switch as a backbone for a small 10/100BASE-TX network
3-2 Network
You can cascade the MIL-S800 to another hub or a switch without using a crossover cable.
Figure 7. Small Network Configuration
