3
1-4 Hardware Description
The Front Panel
The front panel contains power and LED Indicators.

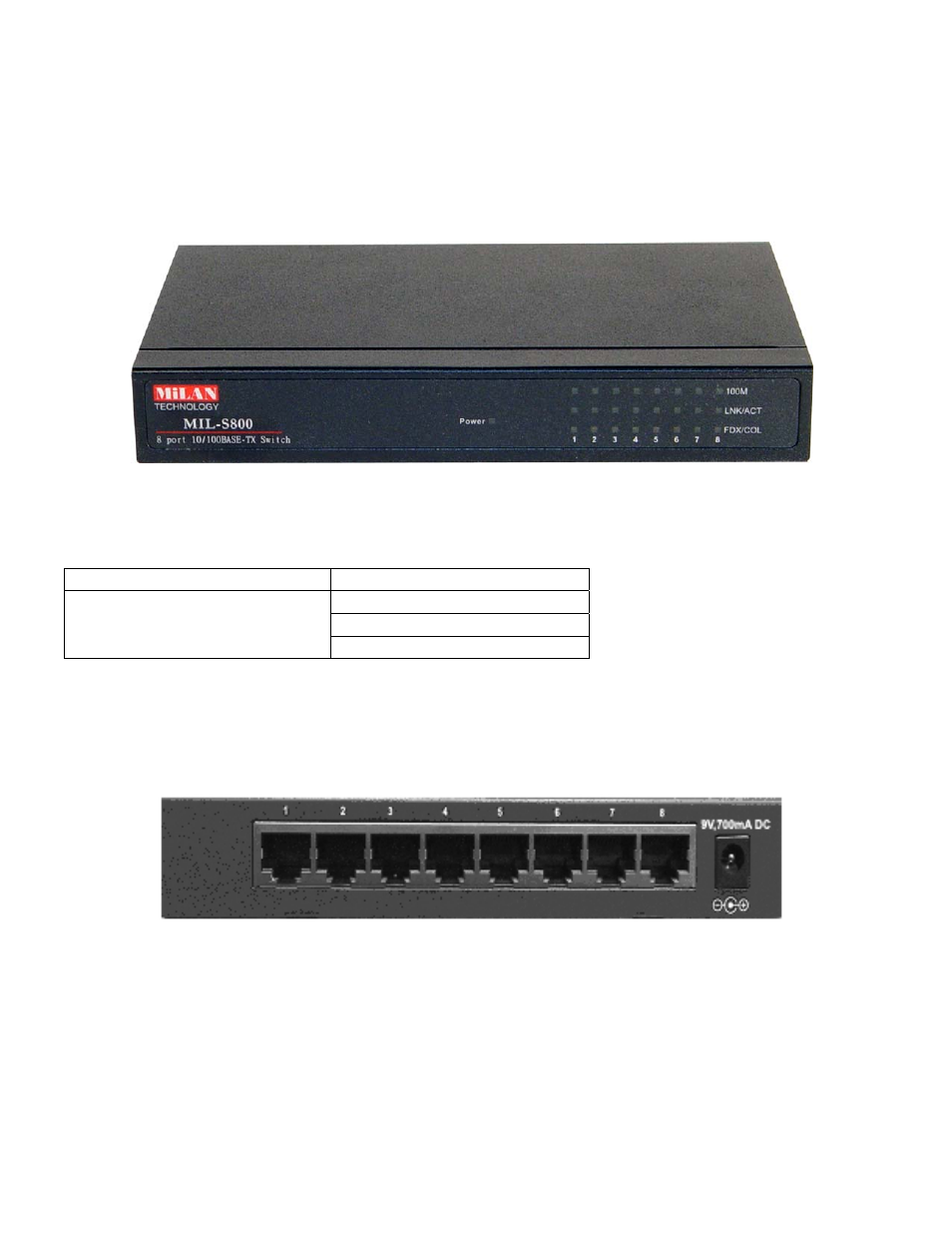

Figure 2. Front panel view of the MIL-S800
Front panel LED Indicators
Per Device
Power
100M (Link on 100Mbps)
LNK/ACT (Link/Activity)
Per Port
FDX/COL (Full Duplex/Collision)
For LED details, please refer to Chapter 2, LED Descriptions.
The Rear Panel
The rear panel of the MIL-S800 consists of a DC power connector and 8 auto-sensing ports.
Figure 3. Rear panel view of the MIL-S800
· Eight Auto-sensing RJ-45 ports for 10BASE-T or 100 BASE-TX connections.
· Auto MDI/MDIX: Detects the straight cable connection, NIC or cascade to a hub or switch, without
changing the cable.
· DC Power Connector.
