9

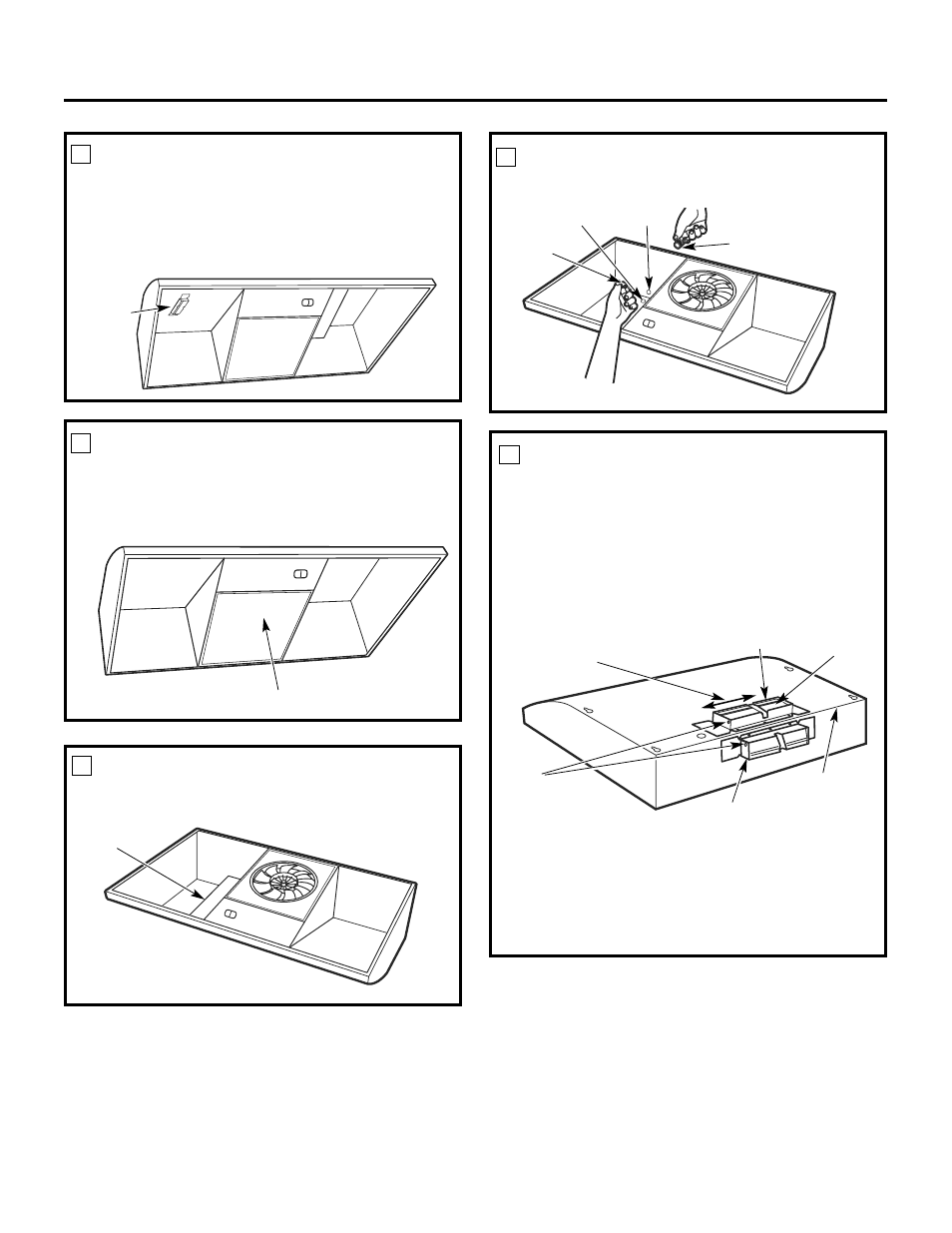

REMOVE EXHAUST ADAPTOR*
If exhausting/venting using the 3¼ ” x 10” rectangular
duct
Remove the exhaust adaptor from the inside of the
hood. Set it aside along with its mounting screws.
3¼” x 10”
rectangular
exhaust
adaptor
and screws
REMOVE FILTER
Remove the shipping tape holding the metal grease
filter
in place. Pull down on the center of the front
edge of the filter. The filter will then slip out of the
retaining tabs on the back.
REMOVE WIRING COVER
Remove the wiring cover from inside the hood.
Set the cover and its mounting screw aside.
Wiring
cover
REMOVE WIRING KNOCKOUT
Remove either the top or the back wiring knockout as
needed and install an approved strain relief clamp.
Strain relief
clamp
2
3
4
5
Metal grease filter
Installation Instructions
Back knockout Top knockout
Strain relief
clamp
* 1” = 2.5 cm
FOR 3¼” X 10” RECTANGULAR
DUCTED DISCHARGE
INSTALLATIONS ONLY:*
Attach exhaust adaptor/damper over the appropriate
knockout opening (for vertical or horizontal,
depending on installation) with two exhaust adaptor
screws. Make sure damper pivot is nearest to top/back
edge
of hood. Remove tape from damper flap.
Up to 1” side-to-
side adjustment Tape
Top/back edge
Exhaust adaptor/damper
(vertical discharge position)
Pivot
(depending on
installation)
6
NOTE: The exhaust adaptor/damper can be installed
up to 1 inch on either side of the hood center to
accommodate off-center ductwork. In extreme off-
center installations, one end of the duct connector may
need to be trimmed to clear the electrical cable clamp.
Exhaust adaptor/damper
(horizontal discharge position)
