8

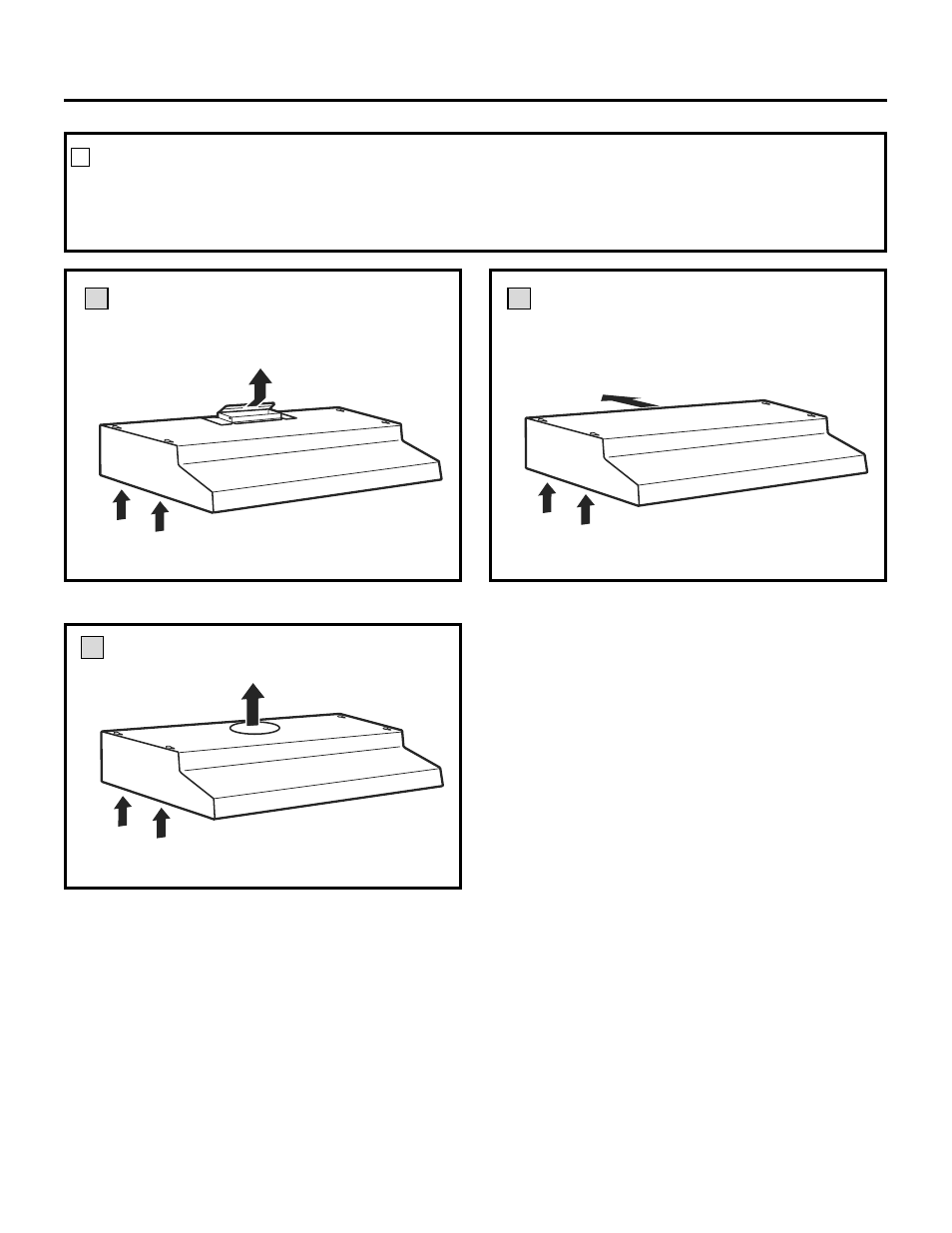

Outside top exhaust
(Vertical duct–3¼
” x 10” Rectangular)*
Outside rear exhaust
(Horizontal duct–3¼” x 10”
Rectangular)*
Outside top exhaust
(Vertical duct–7” Round)*
A C
B
Installation Instructions
CHOOSE VENT OPTION
Determine the vent option that your installation will
require and that is available for your model from the
below choices.
1
IMPORTANT: If the hood is to be installed in a
recirculating, non-vented ductless manner, do not
knock out any vent openings in the hood. Only an
electrical access hole will be knocked out of the hood.
TV337
TV337
TV337
* 1” = 2.5 cm * 1” = 2.5 cm
* 1” = 2.5 cm
