Mazda 2009 MX-5 Miata - Manual (Page 5)

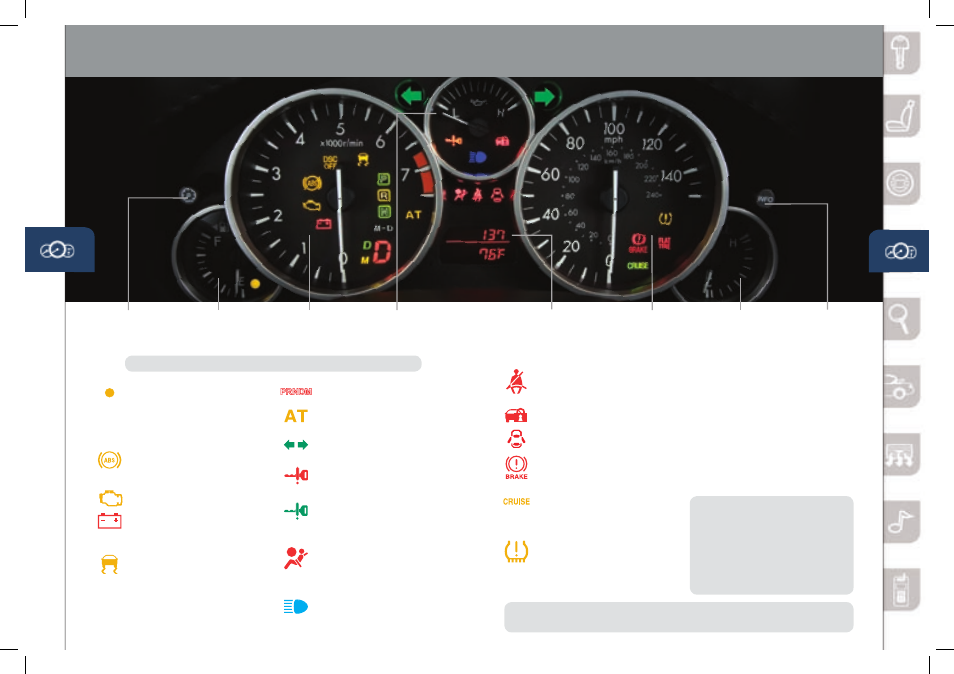

Instrument Cluster
7 8
Low Fuel
Dynamic Stability Control
(DSC)/Traction Control
System (TCS) Off
ABS
(Antilock Brake System)
On-ABS malfunction
Check Engine
Charging System
On-Charging system
malfunction
Traction Control System
(TCS)/Dynamic Stability
Control (DSC)
Flashing-TCS/DSC operating
On-TCS/DSC malfunction
Shift Position
Automatic Transmission
On-Transmission malfunction
Turn Signals/
Hazard Warning
KEY Warning Light ( RED )
Advanced key not detected
or transmitter battery is dead.
KEY Indicator Light ( GREEN )
Advanced key detected,
engine is ready to start.
Air Bag/Front Seat Belt
Pretensioner System
On/flashing-Air Bag
malfunction
Headlight High Beam
INFO BUTTON
Seat Belt
On-Seat Belt unbuckled/
malfunction
Security Indicator
Door Ajar
Brake
On-Parking brake on/low
brake fluid/malfunction
Cruise Main Indicator
Light
( AMBER ) /Cruise Set
Indicator Light ( GREEN )
Tire Pressure
Monitoring System (TPMS)
Tire pressure may be low or
high in one or more tires.
Flat Tire
On-Flat tire/malfunction
TACHOMETER FUEL GAUGE ENGINE COOLANT
TEMPERATURE
GAUGE
DASHBOARD
ILLUMINATION
DSC
OFF
GLOSSARY OF WARNING AND INDICATOR LIGHTS
NOTE: See Owner’s Manual for more details and explanations.
NOTE: The tire pressure should be set when tires are cold. Large changes in
ambient temperatures or altitude may cause TPMS warning light to illuminate.
FLAT
TIRE
SPEEDOMETER ENGINE OIL
PRESSURE GAUGE
ODOMETER/TRIP
METER/AVERAGE FUEL
ECONOMY/AMBIENT
TEMPERATURE DISPLAY
INFO
Push InFO button to display the
following below the odometer:
• Trip Meter A
• Trip Meter B
• Average fuel economy
• Ambient Temperature Display
NOTE:
• To clear trip and average fuel
economy, push and hold InFO
button when displayed.
• To change the ambient temperature
between (degree symbol) F and
(degree symbol) C, push and hold
InFO button when displayed.
