Back Panel Features and Operation
Back Panel Features and Operation
PA
Speaker
Jack
External
Speaker
Jack
DC 13.8V
Power
Jack
Antenna
Connector
•

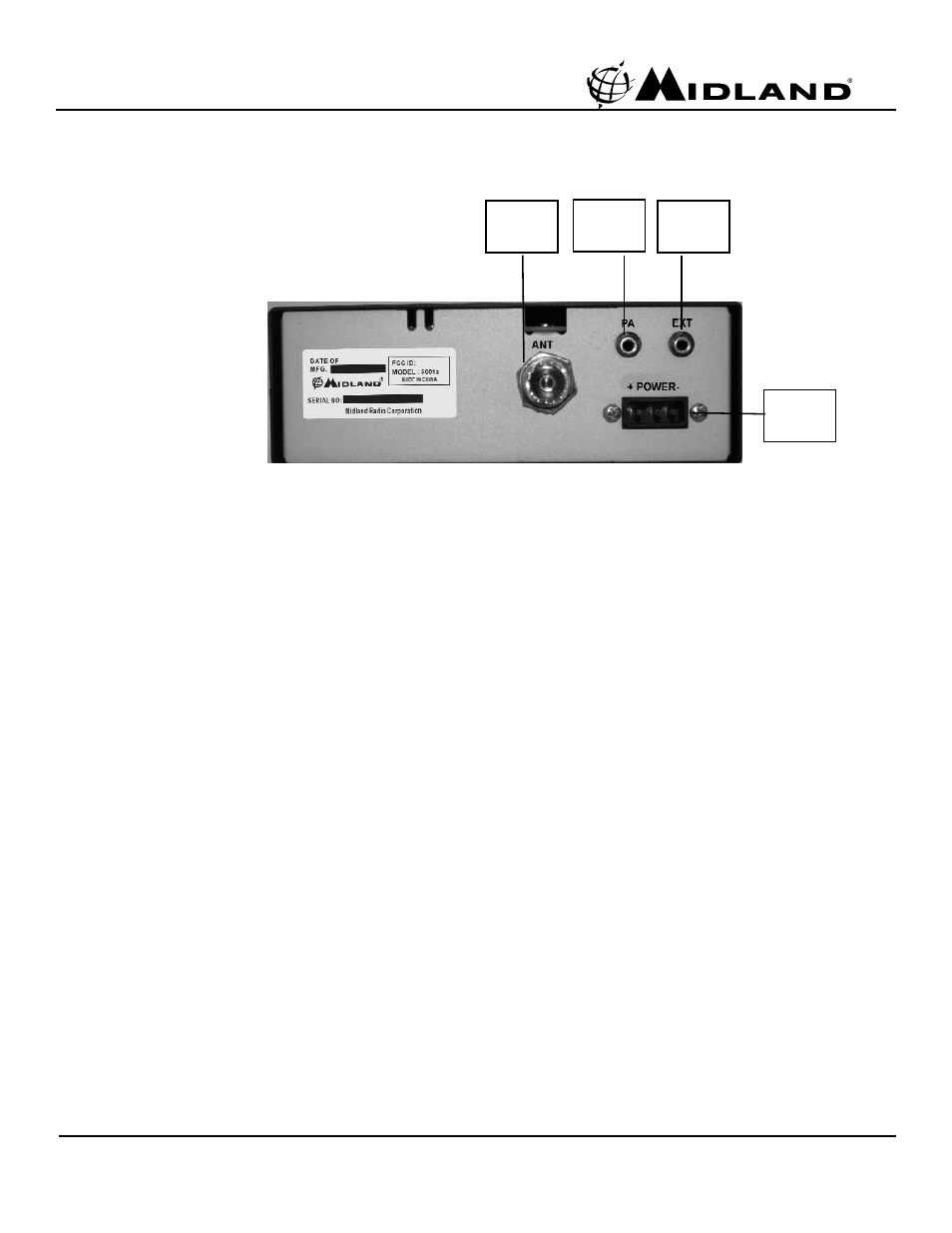

Antenna Connector- The SO-239 connector allows the connection of a standard 50-ohm CB antenna to
this unit.
•
PA Speaker Jack- Attach an external 8-ohm, 5.0 watt PA speaker to this jack to use the radio as a Public
Address system. This allows you to communicate with pedestrians or other vehicles through
your CB microphone.
•
External Speaker Jack- When a speaker is connected to this jack the internal speaker is by-passed. All
received signals will be heard through the external speaker. The speaker connected to the "EXT" jack
should be rated at 8-ohms and 5 watts.
•
DC 13.8V Power Jack
- Connects to power cord with inline 2 Amp fuse.
How to Operate the Public Address
How to Operate the Public Address
1.
Connect a PA speaker to the PA jack provided on the rear panel.
2.
Place PA/CB switch into the PA position.
3.
Press the push-to-talk button on mic and speak in a normal voice.
4.
Adjust PA speaker volume with front panel
X-TRA TALK
control.
