26 44D0060
LOG PLACEMENT
INSTALLING LOGS ON GRATE (See Figures 25 and 26 )
NOTE: Model DEB18 has 4 logs and models DEB24 and DEB30 have 5 logs.
1. Install back log (#1) on two pins located near the back of base. Check log position and stability.
2. Install right center log (#2) on pins located near right front of base and center of base.

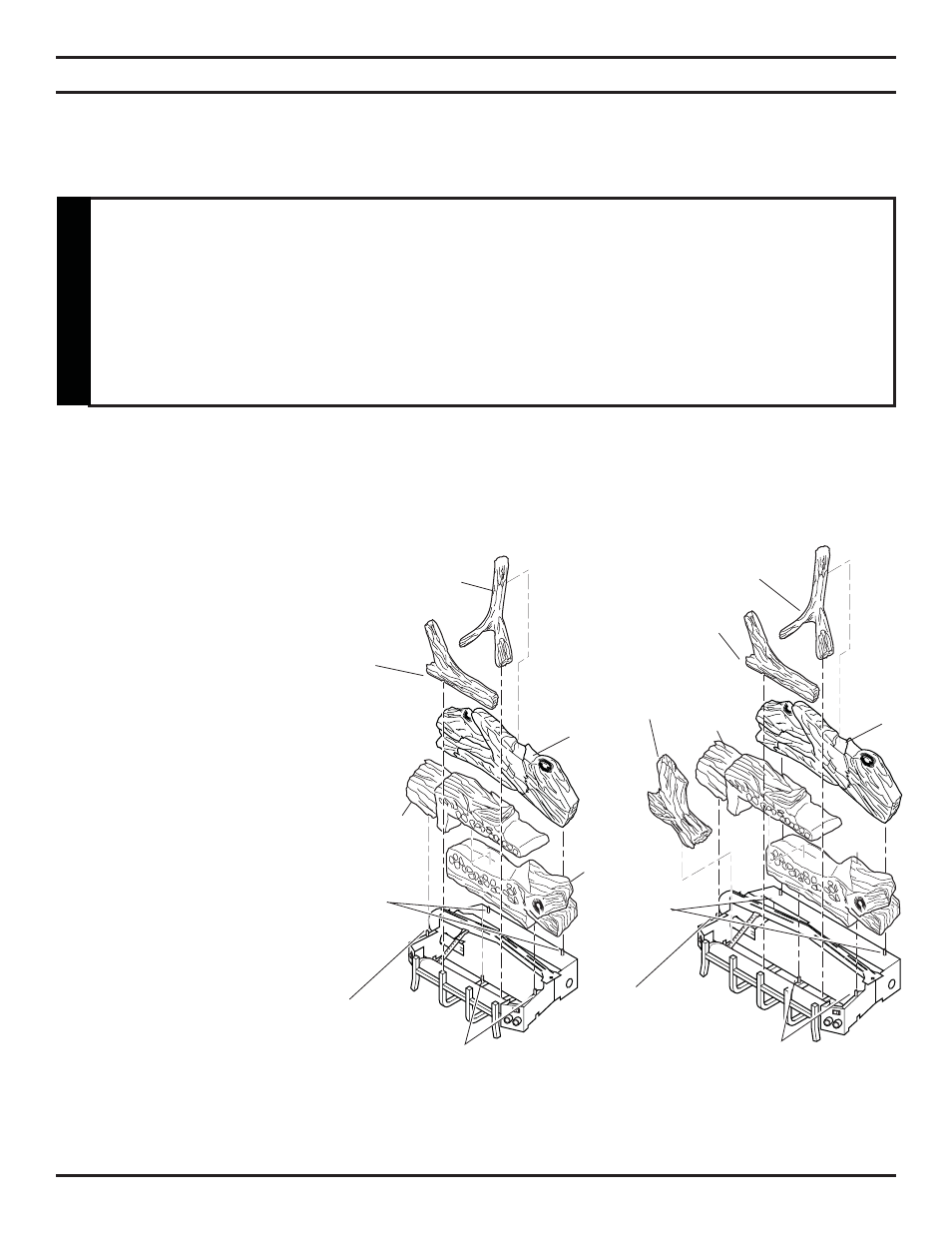

Figure 25 - Installing Logs
to Grate (Model DEB20)
Before you begin — This unit is supplied with four or five ceramic fiber logs. Do not handle these logs with your bare
hands. Always wear gloves to prevent skin irritation from ceramic fibers. After handling the logs, wash your hands gently
with soap and water to remove any traces of fibers.
Figure 26 - Installing Logs
to Grate
(Models DEB24 and DEB30)
The positioning of the logs are critical to the safe and clean operation of this heater.
Sooting and other problems may result if the logs are not properly and fi rmly positioned
in the appliance. Never add additional logs or embellishments such as pine cones,
vermiculite or rock wool to the heater. Only use the logs supplied with the unit.
Failure to position the parts in accordance with diagrams below or to use only
parts specifically approved for this heater may result in property damage or
personal injury.
W
ARNING
Log #6
Log
#2
Log
#4
Back
Pins
Right Front and
Center Pins
Log #6
Log #4
Log #3
Log
#2
Log
#1
Log
#3
Log
#1
Log #5
(24 & 30
only)
Left Front Pin
Right Front and
Center Pins
Left Front Pin
Back
Pins
NOTE: The #2 log is a heat shield for
the control valve. It is critical that this
log is sitting in its pin placement and
completely down with the front noise
of the embers placed below the front
burner. If the #2 log is not placed
properly it could cause damage to the
control valve and wiring.
3. Install left center log (#3) on pin
located near left front of base and on
top of right center log (#2).
4. Install middle front log (#4) in front
of center log. Make sure bottom
of log is resting on the center of
grate. Do not let log #4 contact the
front burner.
5. DEB 24 and DEB 30 only: Rest
right end of left front log (#5) on log
#3 and the top of left front log on log
#1.
6. Place back end of top center
log (#5) on recessed area of
back log (#1). Cross log #6
over log #2 and rest right extension
on grate. Log #6 should fit on pin on
center log #3.
