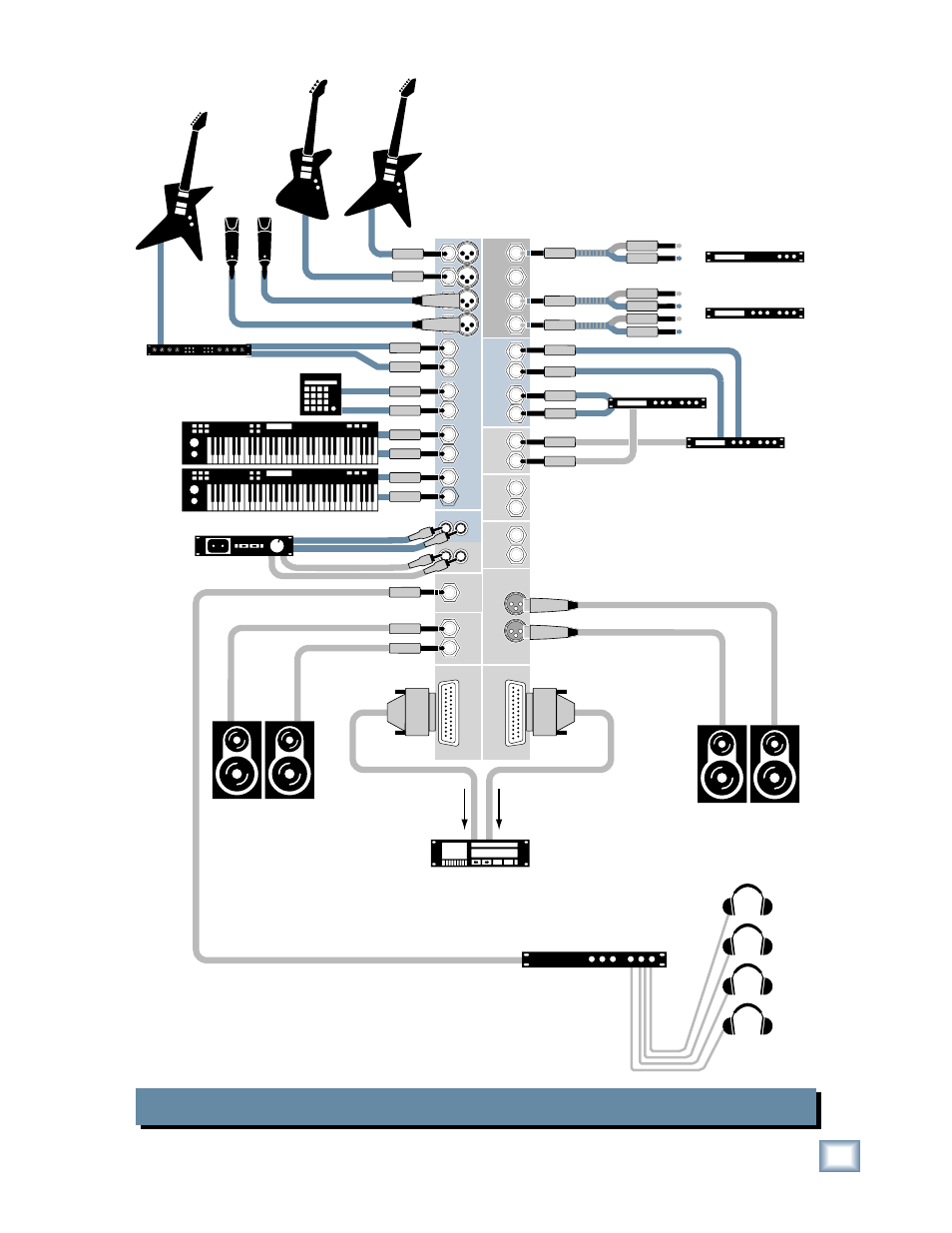

Onyx 1220 Multitrack Recording in a Studio (Tracking)
Powered
Studio Monitors
Keyboard or other
line level input
Stereo Guitar Effects
Out
(play)
In
(record)
Drum
Machine
Stereo Compressor
Mono Compressor
Bass Guitar Electric Guitar
Electric Guitar
Vocal Mics
Multi Effect
Processor
Digital Delay
Powered
Studio Monitors
for Studio
Digital Multitrack Recorder
Headphone Distribution
Amp
Headphones
for Studio
3
4
2
12
11
10
9
8
7
4
4
3
2
3
1
2
1
1
1
2
L
R
L
R
L
R
CHANNEL INSERTS
AUX RETURNS
ALT 3-4
OUT
PHONES
OUT
INPUTS
L
MONO
R
R
R
R
L
MONO
L
MONO
L
MONO
AUX SEND
L
5
1
2
6
CHANNEL
R
L R
IN-TAPE-OUT
MAIN OUT
CONTROL RM
OUTPUTS
MAIN OUT
RECORDING OUT
5-12
RECORDING OUT
1-4
L
R
Out
In
Out
In
Out
In
The RECORDING OUTs provide an analog bal-
anced direct output for each channel, tapped af-
ter the GAIN control but before the EQ controls.
