Hookup Diagrams
FIREWIRE
(OPTION)
Stereo Power
Amplifier
Out
(play)
In
(record)
Stereo Compressor
Mono Compressor
Multi Effect
Processor
Mono Power
Amplifier
Stage Monitors
Left PA Speaker Right PA Speaker
Stereo EQ
Mono EQ
Headphones
Keyboard or other
line level input
Stereo Guitar Effects
Drum
Machine
Bass Guitar Electric Guitar
Electric Guitar
Vocal Mics
Digital Multitrack Recorder
Laptop Computer
3
4
2
12
11
10
9
8
7
4
4
3
2
3
1
2
1
1
1
2
L
R
L
R
L
R
CHANNEL INSERTS
AUX RETURNS
ALT 3/4
OUT
PHONES
OUT
INPUTS
L
MONO
R
R
R
R
L
MONO
L
MONO
L
MONO
AUX SEND
L
5
1
2
6
CHANNEL
R
L R
IN-TAPE-OUT
MAIN OUT
CNTRL ROOM
OUTPUTS
MAIN OUT
RECORDING OUT
5-12
RECORDING OUT
1-4
L
R
Out
In
Out
In
Out
In
Onyx 1220 Live Mix and Multitrack Recording

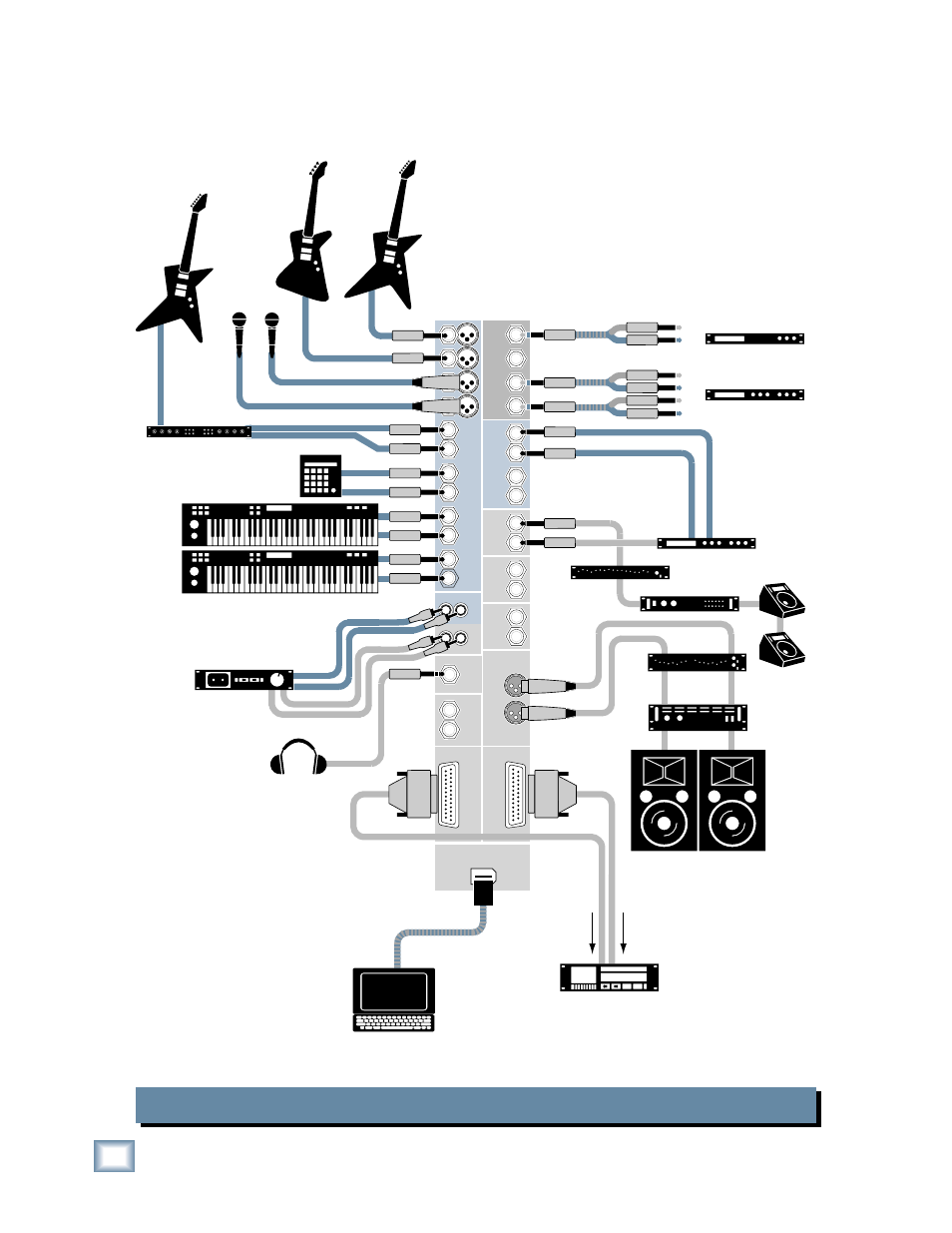

This hookup diagram demonstrates how
you can do a live multitrack recording
using the RECORDING OUTs or the op-
tional FireWire card.
The RECORDING OUTs provide an
analog balanced direct output for each
channel, and the FireWire card provides
a digital direct output for each channel.
