Martin Audio W1 - Manual

W W1 1
Ultra-compact two-way trapezoid system
features
◗
Ultra-compact trapezoid enclosure
◗
High SPL output capability
◗
70º coverage angle
◗
Multi-laminate birch plywood construction
◗
10" (250mm) LF/1" (25mm) HF driver combination
applications
◗
Audio-visual presentations
◗
Theatre sound systems
◗
Club sound reinforcement
◗
Distributed sound systems
◗
Live sound infill system
Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: [email protected]
All information is Copyright © 2006 Martin Audio Ltd.
The Martin W1 Wavefront system is a high performance, ultra-
compact loudspeaker designed for specific applications where
both high output capability and small size are required. Typical
uses include audio-visual presentations and theatre sound. The
W1 features a 10" (250mm) bass driver and 1" (25mm) exit
compression driver housed in a rugged plywood enclosure built
using the same construction techniques as larger Martin touring
systems. Its 2-way passive configuration simplifies operation,
ensures predictable system performance and reduces amplifier
count.
www.martin-audio.com

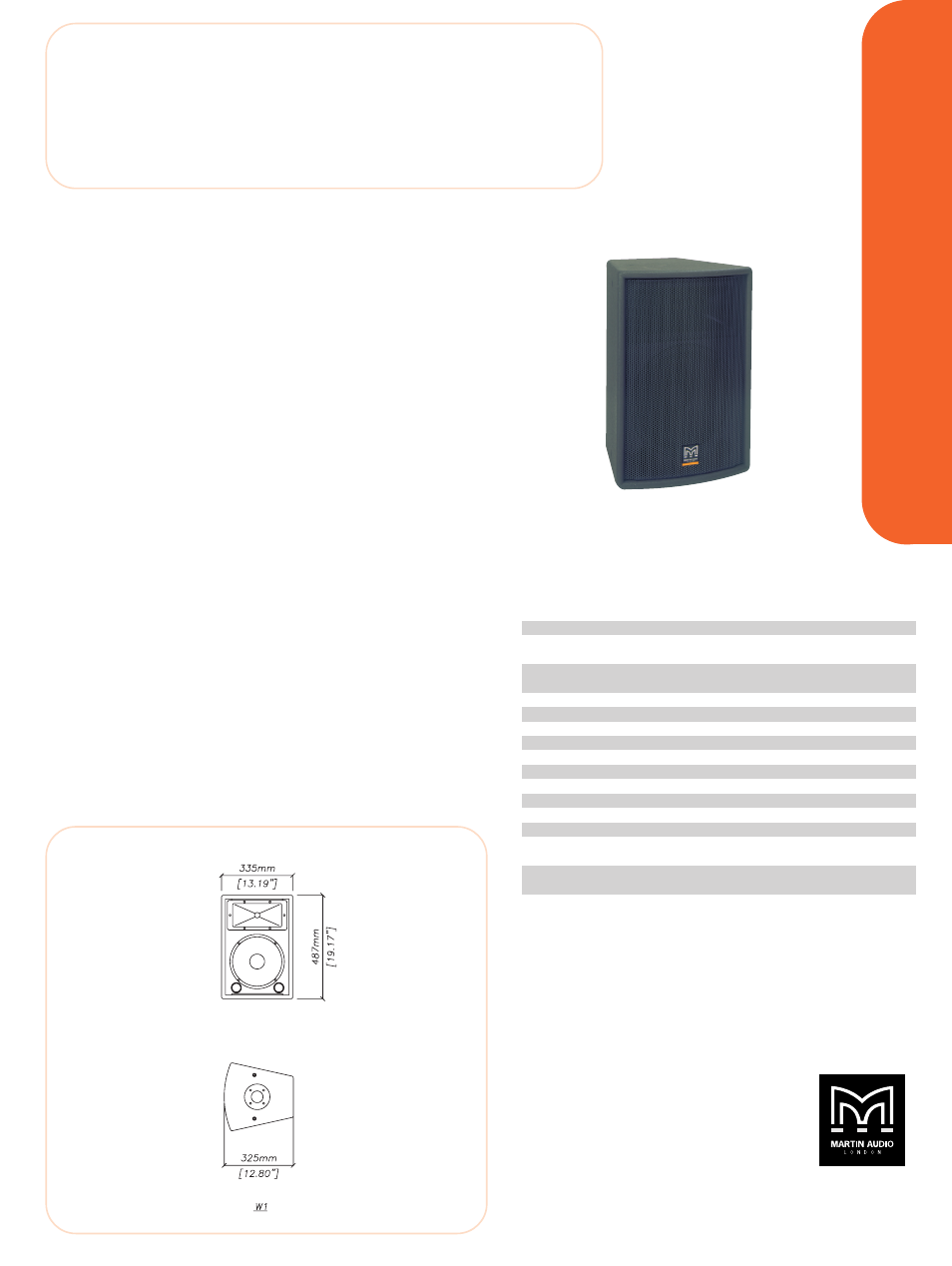

overall dimensions
technical specifications
TYPE Ultra-compact two-way passive trapezoid
FREQUENCY RESPONSE (5) 75Hz-18kHz ± 3dB
-10dB @ 55Hz
DRIVERS 10" (250mm) bass driver
1" (25mm) exit HF compression driver
RATED POWER (2) 150W AES, 600W peak
RECOMMENDED AMPLIFIER 300-400W into 4 ohms
SENSITIVITY (6)
97dB
MAXIMUM SPL (7) 118dB continuous, 124dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6dB) 70º horizontal, 40º vertical
CROSSOVER 2.2kHz passive
FINISH Textured grey paint
PROTECTIVE GRILLE Grey perforated steel
CONNECTORS 2 x Neutrik NL4
FITTINGS 12 x M8 threaded inserts
1 x mounting pole socket
DIMENSIONS (W) 335mm x (H) 487mm x (D) 325mm
(W) 13.2ins x (H) 19.2ins x (D) 12.8ins
WEIGHT 14.5kg (32lbs)
touring and theatre
