Ww3 3, Touring and theatre, Arrayable three-way compact trapezoid system

background image

W

W3

3

Arrayable three-way compact trapezoid system

features

Arrayable compact trapezoid enclosure

Bi-amplified three-way system

Very high SPL output capability

65º coverage angle from compound mid/high horn

Multi-laminate birch plywood construction

Certified MAN quick-connect flying option

applications

Theatre sound systems

Club sound reinforcement

Underslung/infill for concert sound reinforcement

Music playback in nightclubs

On-stage instrument monitor

Century Point, Halifax Road, Cressex Business Park,
High Wycombe, Buckinghamshire HP12 3SL, England.
Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669
E-mail: [email protected]
All information is Copyright © 2006 Martin Audio Ltd.

Extremely versatile, the Wavefront W3 is a unique, innovative
full-range system, utilising advanced Martin Audio engineering
to achieve true three-way full frequency performance from an
enclosure only 28" high. It delivers the clarity required for
speech and music applications as well as the power, warmth
and depth to generate an exciting live sound or playback
experience in nightclubs.

www.martin-audio.com

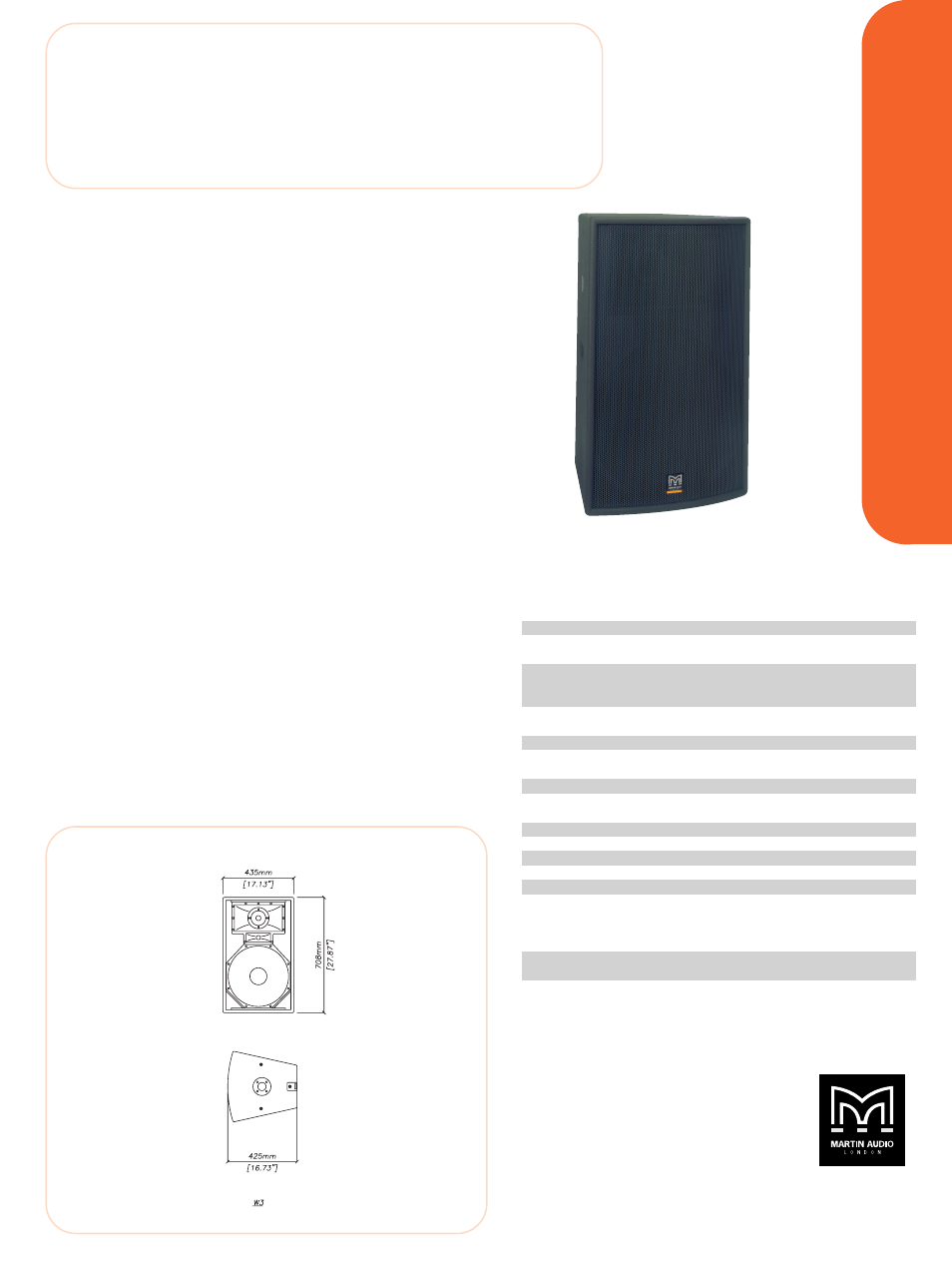

overall dimensions
