8
Mark Levinson
Status LED
Indicates the operating state of the Nº532 and provides basic
diagnostic information if a fault condition occurs. The table below
identifies the basic behavior of the Status LED.
Refer to the “Troubleshooting” section in the back of the manual for
a description of the Status LED behavior when a fault is detected.

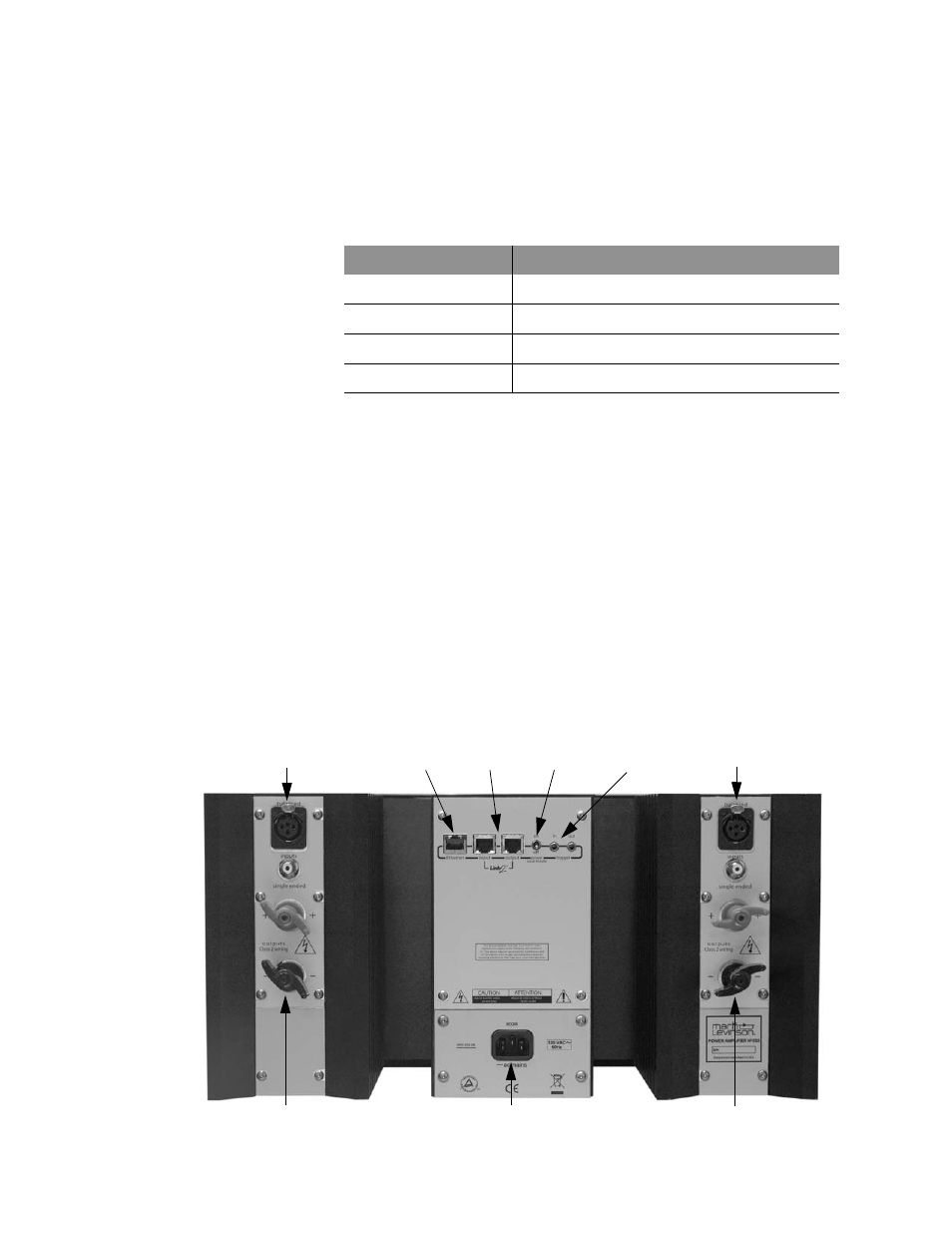

Rear Panel
The Nº532 has two independent audio channels, isolated from each
other and from the control circuitry. This isolated design results in
two “piers”, each containing identical circuitry for a single audio
channel. The control circuitry resides in the center of the amplifier,
isolated from each audio channel. The resulting rear panel, as
shown below, is actually three separate parts: the center part
contains all of the control and power connections, while the left
and right panels each contain the connectors for each audio
channel.
LED Behavior Description
Fully lit Indicates that the amplifier is powered on.
Slowly blinking Indicates that the amplifier is in Standby mode.
Dimly lit Indicates that the amplifier is in Power Save mode.
Not lit Indicates that the amplifier is powered off.
Loudspeaker
Binding Posts Loudspeaker
Binding Posts
Ethernet
Port
Link2
Ports
Power Save
Mode Switch
Trigger
Input/Output
Input
AC Input
Input
Audio Audio
