EN-12
Basic connections (continued)

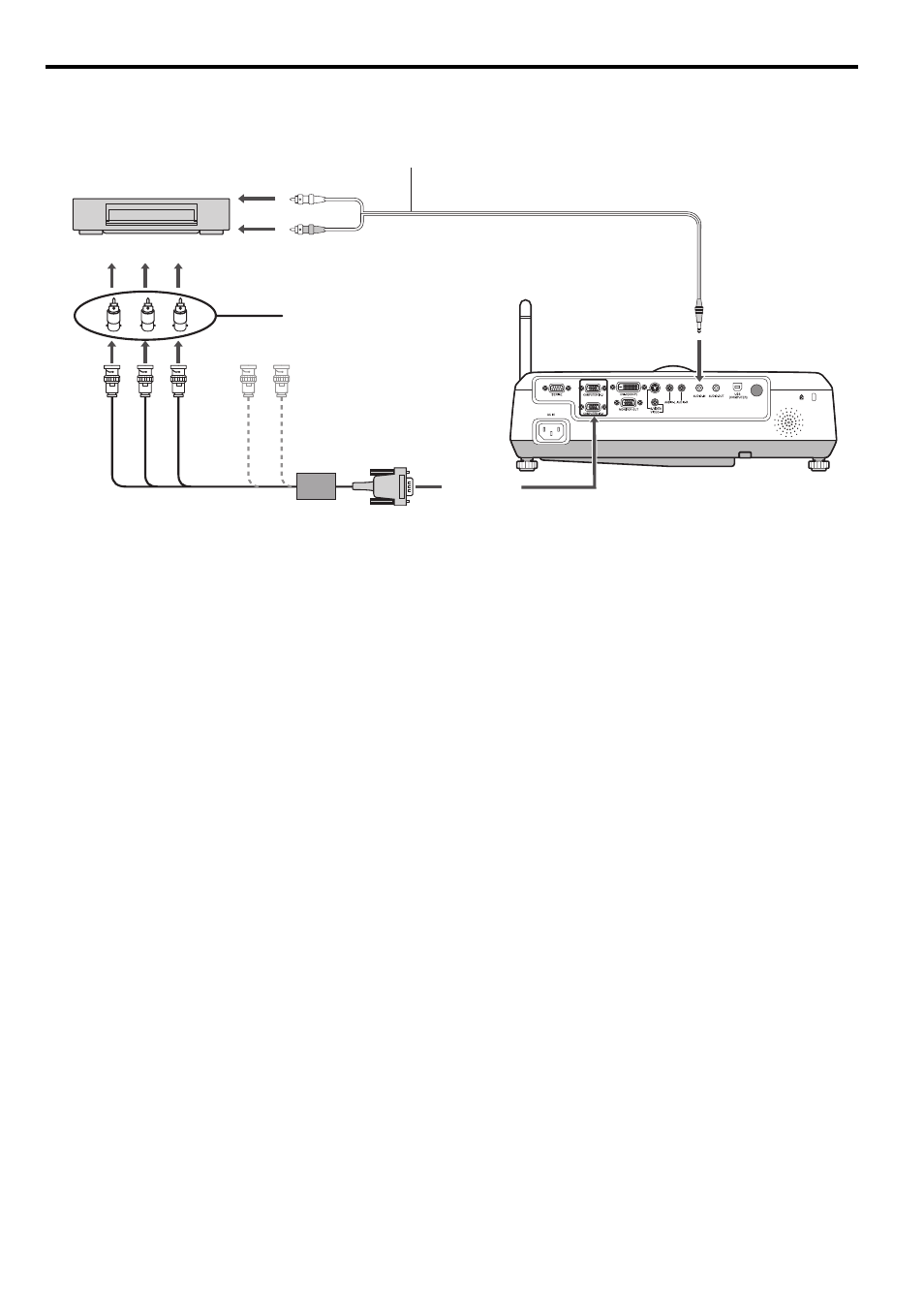

Projector + DVD player or HDTV decoder
Some DVD players have an output connector for 3-line fitting (Y, C B , C R ). When connecting such DVD player with this projector, use the
COMPUTER-IN terminal.
Important:
• The terminal’s names Y, P B , and P R are given as examples of when a HDTV decoder is connected.
• The terminal’s names vary depending on the connected devices.
• Use a Mini D-SUB 15-pin - BNC conversion cable for connection.
• Image may not be projected correctly with some DVD players.
• When connecting a HDTV decoder having RGB output terminals, set COMPUTER INPUT to RGB in the SIGNAL menu.
• Speaker output is mono.
• Only the RGB signal is supported. Color difference signals are not supported.
B R
DVD player or HDTV decoder
Audio cable (option)
to audio output
BNC - RCA connector (option)
No connection
COMPUTER-IN
Mini D-SUB 15-pin - BNC conversion
cable (option)
