Basic connections
This projector can be connected with various devices such as a VCR, video camera, videodisc player, and personal computer that have analog RGB
output connectors.
Important:
• Make sure that the connected device is turned off before starting connection.
• Plug in the power cords of the projector and the connected devices firmly. When unplugging, hold and pull the plug. Do not pull the cord.
• When the projector and the connected devices are located too close to each other, the projected image may be affected by their interference.
• See the owner’s guide of each device for details about its connections.

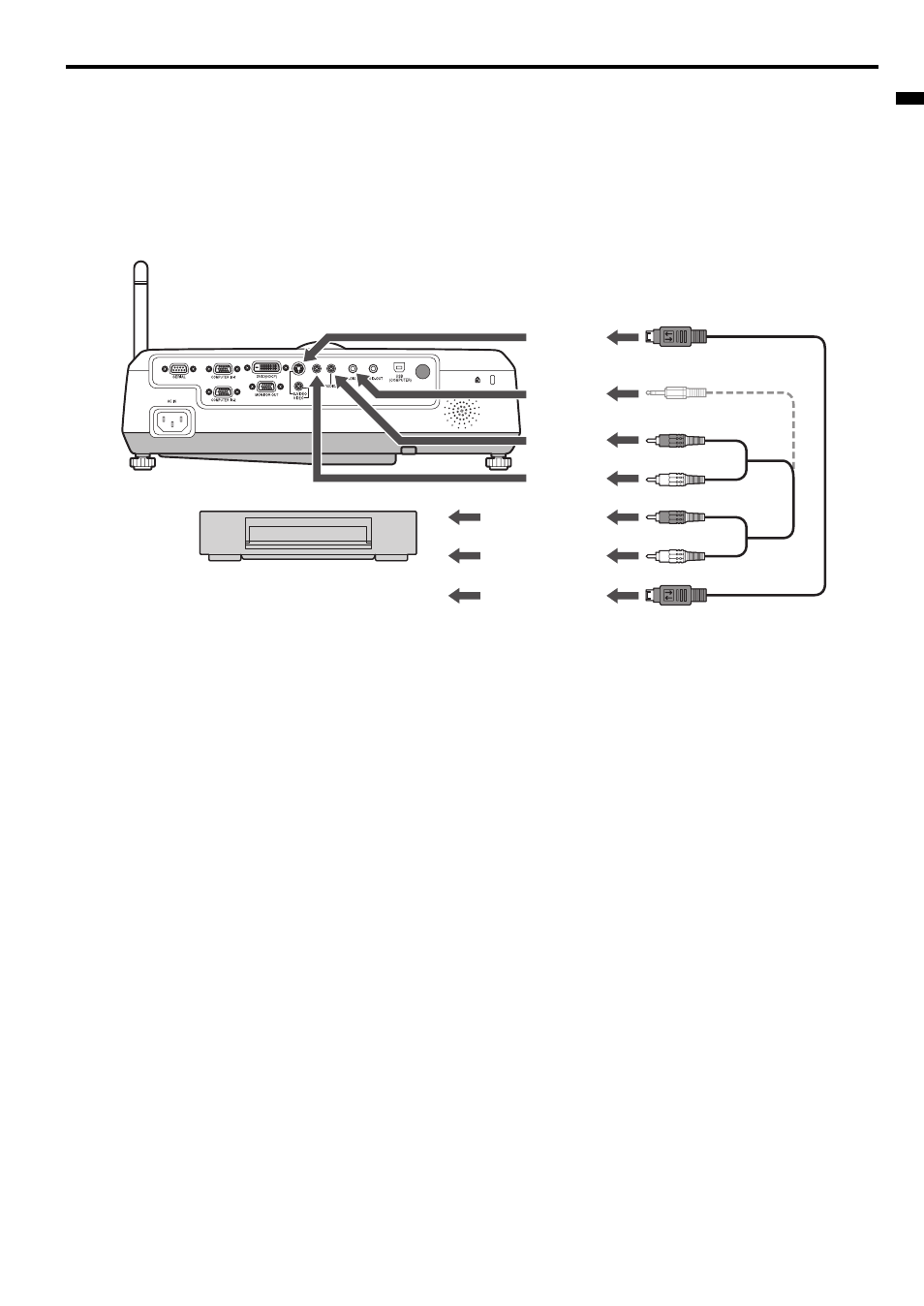

Projector + AV device
Important:
• Match the colors of the video and audio plugs on the Audio cable with those of the terminals.
• Speaker output is mono.
S-VIDEO IN
(option)
AUDIO-IN
(option)
to audio output (R)
to audio output (L)
to S-video output
VCR, etc.
AUDIO-R
AUDIO-L
(option)
* A mini-plug audio cable can also be used.
