Page 227
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
31D
—
Coolant pump relay
31E
—
Not used
31F
—
Liftgate latch relay
32
—
A/C clutch diode
33
—
PCM diode
34
—
Not used
35
10A*
Run/start, Reverse lamps
36
—
Not used
37
—
Not used
* Mini fuse ** Cartridge fuse

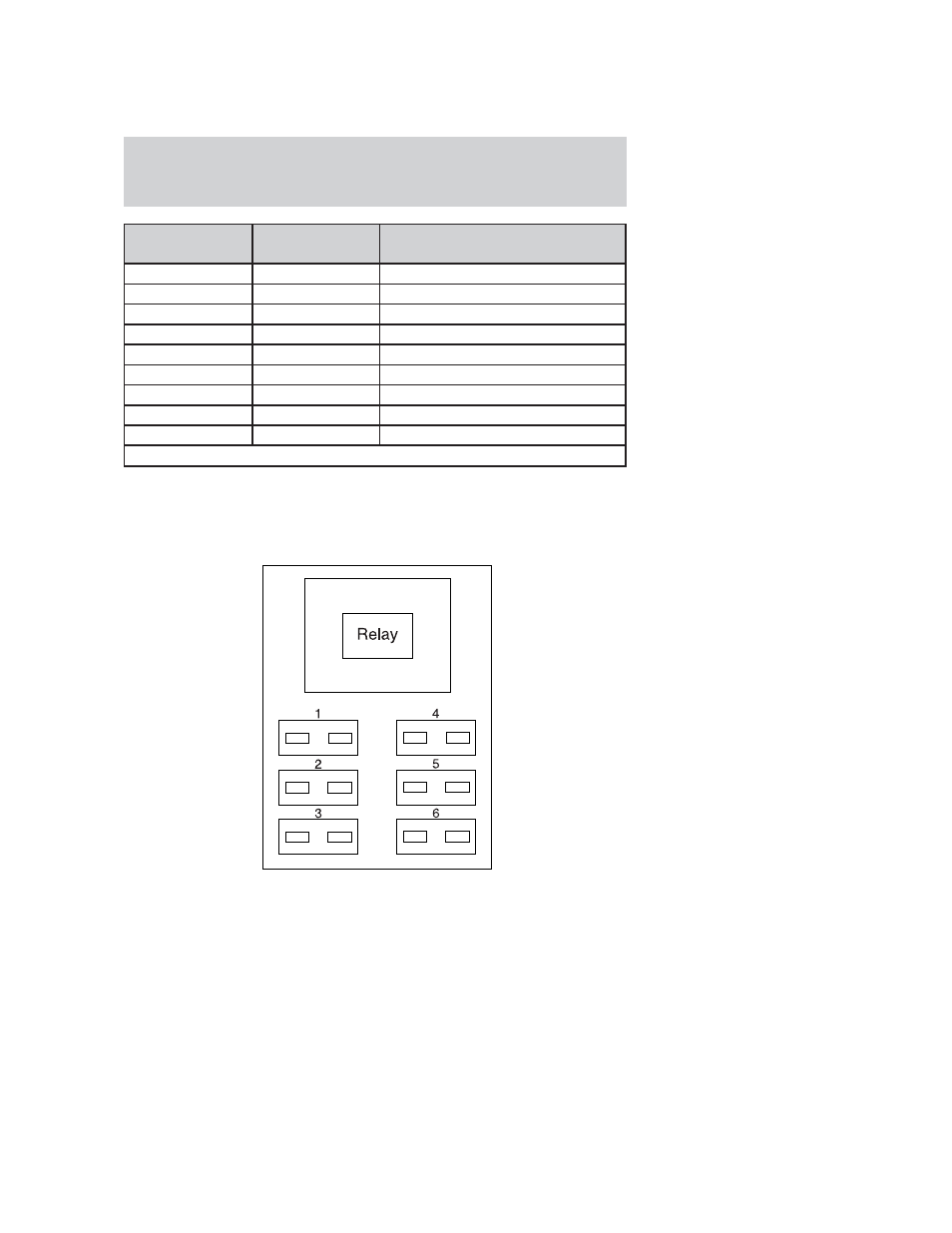

Auxiliary relay box
The relay box is located in the engine compartment on the radiator
support bracket.
2009 Tribute Hybrid (thv)
Owners Guide, 1st Printing
USA (fus)
Roadside Emergencies
227
