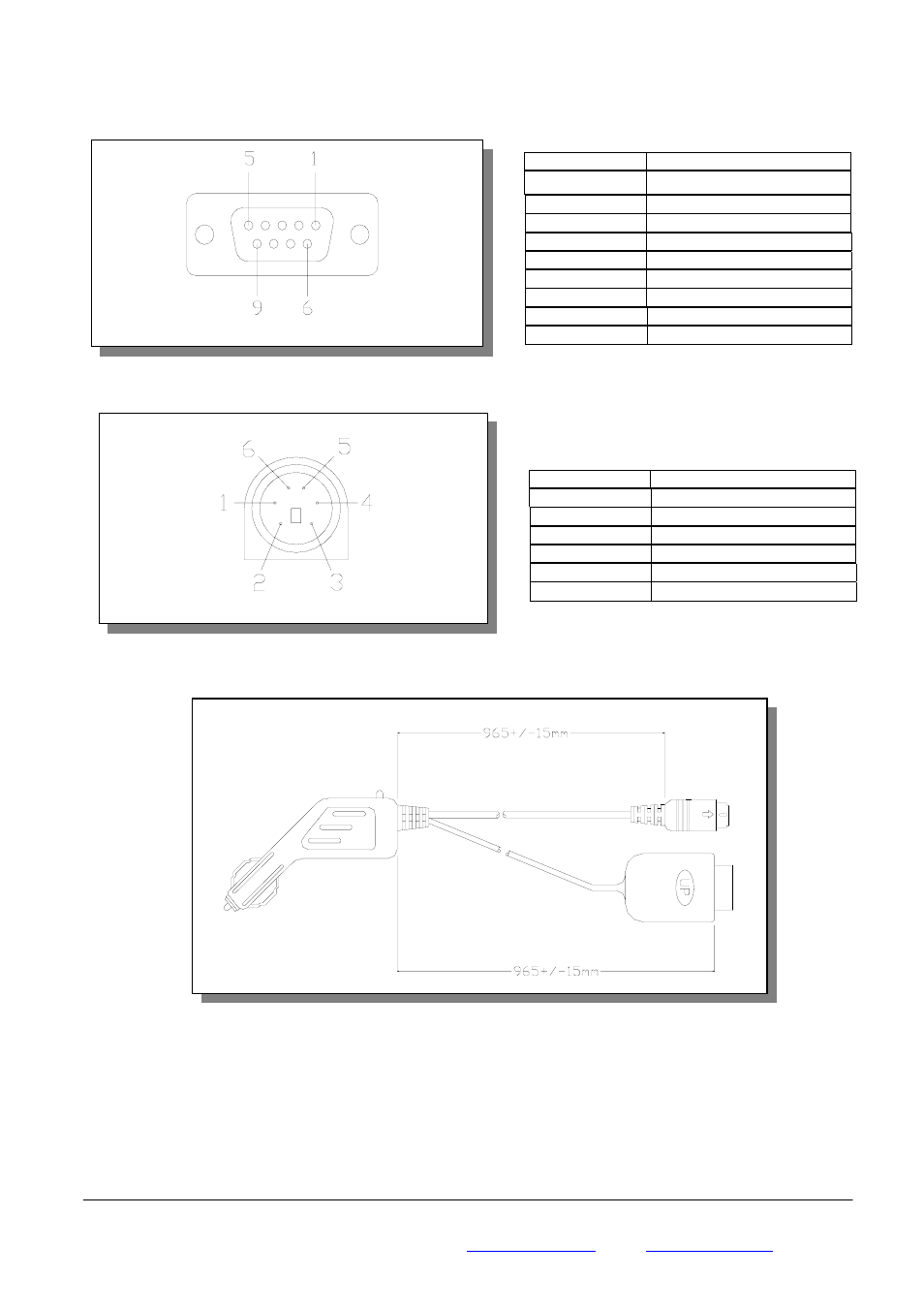

3.4.1.1 Mini Din Female connector function definition:
Pin Signal Name
1 N.C
2 Tx
3 Rx
4 N.C
5 Ground
6 N.C
7 N.C
8 N.C
9 DGPS in
N.C = No connection
3.4.1.2 PS2 composite connector function definition (to PC):
Pin Signal Name
1 +5V
2 N.C
3 N.C
4 Ground
5 N.C
6 N.C
N.C = No connection
3.4.2 A-6012 Cigarette adapter and PDA connector:
Part No. Application Part No. Application
A-6017-A ASUA A-6012-P Palm
A-6017-B BESTA I-WINNA A-6012-Q I-Paq
A-6012-H HP Jornada A-6012-S Sony Series
A-6017-L Siemens LOOX A-6017-T Toshiba Series
A-6017-M Mitac Mio A-6017-X O2-XDA / T-Mobile - MDA
A-6017-N NEC
