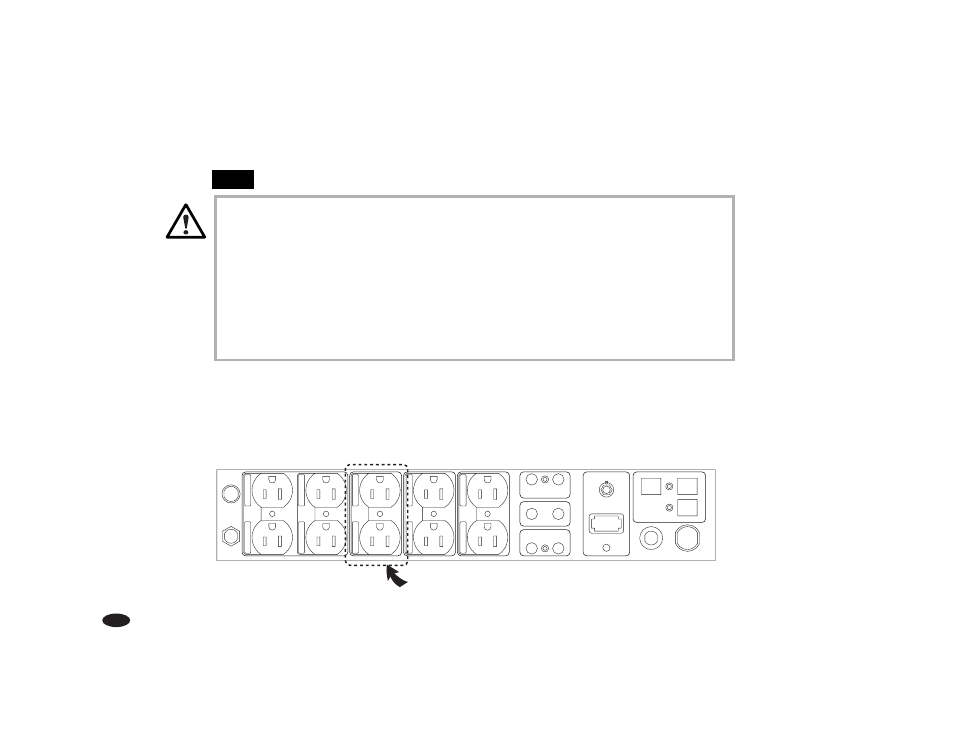

Step 7 Video Outlet (Unswitched) Hookup
A) Attach a Monster Power ID label to each component‘s power cord before you plug it into
the appropriate PowerCenter outlet.
B) A/V RECEIVER: Plug the A/V Receiver’s power cord into the corresponding A/V Receiver outlet.
C) TV: Plug your TV’s power cord into the corresponding TV outlet.
UNSWITCHED UNSWITCHED
DIGIT DIGITAL AL FIL FILTER FUSE TER FUSE
GROUND GROUND
Designed in U.S.A. Designed in U.S.A. Manufactured Manufactured in T in Taiwan aiwan
5A SLOW BLOW 5A SLOW BLOW 5 x 20 mm 5 x 20 mm
UNSWITCHED UNSWITCHED UNSWITCHED UNSWITCHED SWITCHED SWITCHED TIMED TIMED
IN IN
IN IN OUT OUT
IN IN
PHONE PHONE
BREAKER 15A BREAKER 15A PRESS TO RESET PRESS TO RESET 1800W 1800W MAX TOT MAX TOTAL AL
OUT 1 OUT 1
OUT 2 OUT 2
IN IN OUT OUT
OUT OUT
NORMAL NORMAL
REMOTE REMOTE
AC IN 110V 0.3A AC IN 110V 0.3A
DC IN 9~12V 300MA DC IN 9~12V 300MA
CABLE TV CABLE TV
SA SATELLITE TELLITE
ANTENNA ANTENNA
IMPORTANT NOTE: The component-to-component noise filter featured in this group of outlets is designed
to deliver optimum performance within a power rating of no more than 1800 watts (15 amps max contin-
uous). The filter's performance will be degraded if the optimum peak power capacity is exceeded. To avoid
this, do not plug any high current components into this section (Ultra high current amplifiers or A/V
receivers should be plugged into the high power audio filter section–see page 17). We recommend
predetermining the total watts of all components plugged into this filter section before plugging in any
components. To do this, look on the rear panel of your components and find the wattage rating. Add up
the wattage for all components to be plugged into these outlets. They should not exceed 1800 watts.
NOTE: The maximum wattage rating of the entire HTS3000 is 1800 watts, therefore, you cannot ”use up”
all 1800 watts in this filter section and still connect additional additional components to the other filter
sections, which would exceed the HTS3000 maximum wattage rating.
