500kW Containerized
Diesel Generator Set
Lubrication System
Type Full Pressure System
Oil Filters Spin-on, Full Flow
Oil Pan Capacity 22 gal. (83.0 L)
Oil Capacity with Filters 24 gal. (91.0 L)
Oil Pressure at Rated Speed (minimum) 20 psi (138 kPa)
Exhaust System
Exhaust Temperature at Rated kW 875 o F (468 o C)
Exhaust Flow at Rated kW 3200 cfm (90.6 m 3 /min)
Silencer Type Critical
Maximum Allowable Backpressure (standby) 40.2 in/wc (10 kPa)
Exhaust Outlet Size at hook-up 5.0 in. (127 mm)

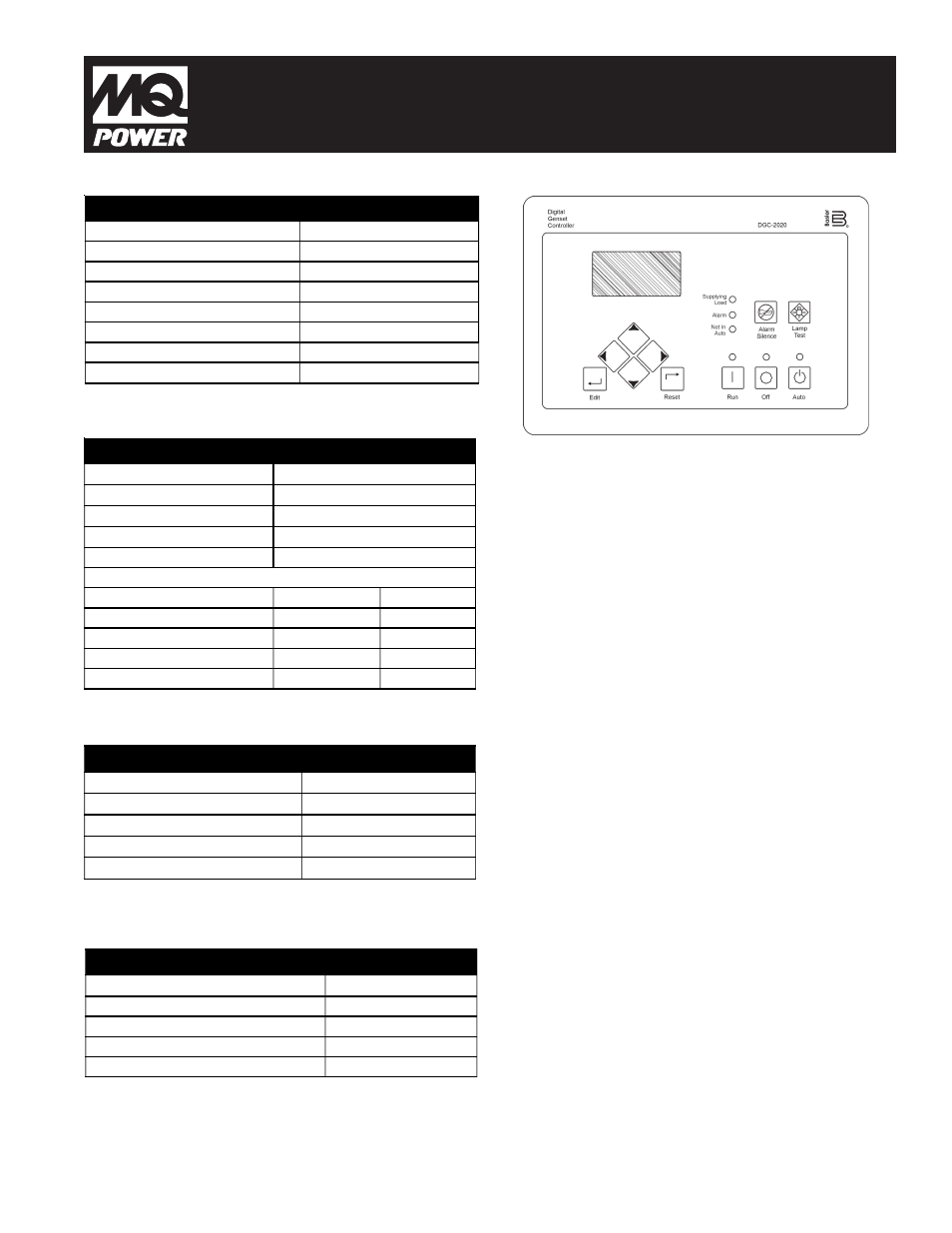

DGC-2020 Digital Genset Controller
■ Local and Remote Generator Control
■ Automatic and manual starting and stopping
■ Engine and Generator Protection
■ Programmable Analog Engine Senders
■ ECU Communications via SAE J1939
■ 16 Programmable Contact Inputs
■ Programmable Logic
■ Automatic Transfer Switch Control (Mains Failure)
■ Integrated RS485
■ Auto Synchronizing
■ Event recording
Monitoring
■ Engine RPM
■ Engine run time
■ Generator voltage
■ Generator current
■ Generator frequency
■ Oil pressure
■ Battery voltage
■ Fuel level measurements
■ Running Hour Meter
■ Coolant temperature
■ Generator under/over voltage alarm/shutdown
■ Generator under/over frequency alarm/shutdown
■ Over Current alarm/shutdown
■ Warm up and cooling functions
■ Maintenance timer
Digital Controller Features
Cooling System
Exhaust Manifold Type Dry
Radiator Design Standard horizontal discharge
Coolant Capacity - Engine 6.3 gal. (24 L)
Water Pump Design/Type Belt Driven, Centrifugal
Coolant Flow 87 gal/min (329 L/min)
Heat Rejection to Coolant 7830 BTU/min (138 kW)
Minimum Pressure Cap 10 psi (70 kPa)
Thermostat Range 180-200 °F (82-93 °C)
Fuel System
Recommended Fuel ASTM-D975-No.1 or No. 2-D
Fuel Pump Maximum Lift 6.0 ft. (1.8 m)
Filter Micron Size - 98% Efficiency 2
Total Fuel Flow 112 gal./hr. (424 L/Hr.)
Fuel Tank Capacity 800 gal (3028 L)
Fuel Consumption - gal/hr (L/hr)
Diesel Fuel @ % of Load Standby Prime
25% 11.6 (43.9) 9.9 (37.4)
50% 18.8 (71.1) 17.2 (65.3)
75% 25.7 (97.2) 23.9 (90.5)
100% 34.4 (130.2) 31.1 (117.8)
