McCulloch 545103497 - Manual

PARAMOUNT PARTS LIST
R
WEED EATER PARTS LIST R R
POULAN PARTS LIST R
Replaces

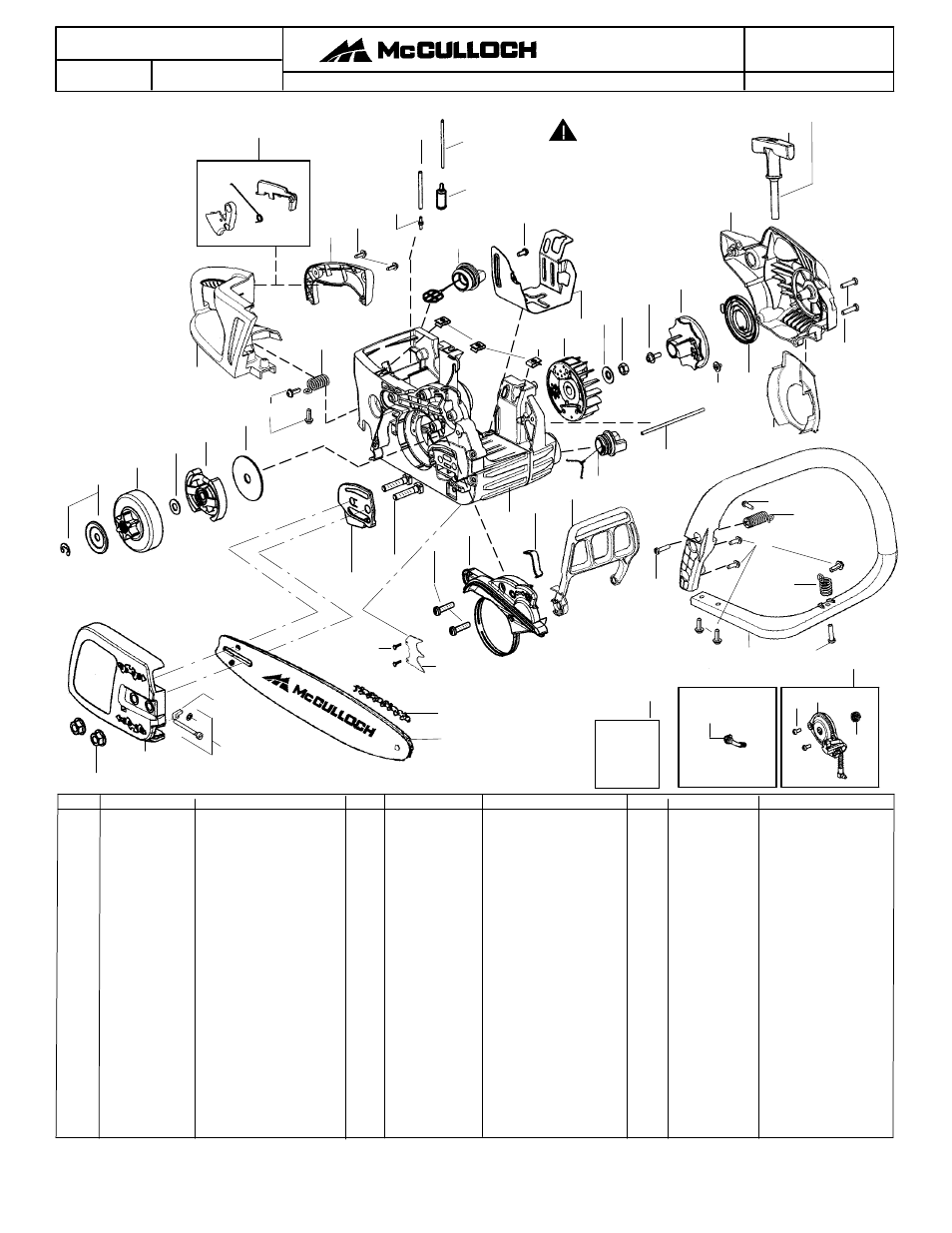

1 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
545103497
Mac 8 ---38 & Mac 838
DATE
3/07/11
PARTS LIST
545103497 --- 8/20/09
All repairs, adjustments and maintenance
not described in the Operator’s Manual
must be performed by qualified service
personnel.
WARNING
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
48
49
1. 530071927 Kit--Trigger/Lockout
2. 545011912 Cover--Handle
3. 530016433 Screw
4. 530023877 Fitting--Fuel line
5. 530069216 Kit--Fuel Line (Large)
6. 530069247 Kit--Fuel Line (Small)
7. 530095646 Assy--Fuel Pick Up
8. 545012112 Handle--Rear
9. 530059475 Spring--Rear Isolator
10. 530071945 Kit--Clutch Washer
11. 530057905 Assy--Clutch Drum 3/8”
12. 530071945 Kit--Clutch Washer
13. 530057907 Assy--Clutch
14. 530016419 Washer--Large Clutch
15. 530015906 Screw
16. 530047192 Assy--Fuel Cap w/ret
17. 530016064 Screw
18. 530015922 Nut--”U” type speed
19. 545016308 Assy--Flywheel
20. 530057911 Shield--Heat
21. 530015127 Washer--Flywheel
22. 530016134 Nut--Flywheel
23. 530015920 Screw--Shoulder
24. 530057890 Pulley
25. 545045903 Housing--Fan
26. 530049797 Handle--Starter
27. 530069232 Kit--Rope
28. 530016432 Screw
29. 545045701 Baffle
30. 576657801 Spring--Starter
31. 530016080 Screw
32. 530058786 Assy--Oil Vent
33. 530057236 Assy--Oil Cap w/ret.
34. 530057880 Handguard
35. 530016416 Spring--Handguard
36. 545011813 Assy--Chassis (Incl.
4,5,6,7,9,15,16,17,18,
20,32,33,35,39,54, )
37. 530071893 Kit--Chainbrake
38. 530016432 Screw
39. 530016133 Bolt--Bar
40. 530057910 Plate--Bar
41. 530015917 Nut--Bar
42. 545012203 Assy--Clutch Cover
(Incl. 45)
43. 530038593 Retainer--Screw
44. 530015826 Pin--Adjustment
45. 530069611 Kit--Bar Adjustment
(incl. 43,44)
46. 530016439 Screw
47. 530014381 Kit--Spike (incl. 46)
48. 530051437 Chain 14”
49. 530044691 Bar 14”
50. 530016432 Screw
51. 530016443 Screw
52. 530059480 Assy--Rear Iso. Spring
53. 530015906 Screw
54. 530059479 Assy--Front Iso. Spring
55. 530057878 Handle--Front
56. 530016432 Screw
57. 530071945 Kit--Clutch Washer
(Incl. 10,12)
58. 530057924 Assy--Oil Pick Up
59. 530071891 Kit--Oil Pump
(Incl. 60,61,62)
60. 530016064 Screw
61. 530057931 Assy--Oil Pump
62. 530037820 Gear--Worm
= NEW PART NUMBER FOR THIS IPL n = REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
1
16
17
20
11
13
14
19
21
22
24
30
25
18
42
55
59
40
39
36
33
32
28
34
37
38
35
27
26
60
61
58
62
7
5
4
41
31
3
56
54
53
52
51
50
2
8
9
15
Clutch
Washer
Kit
57
10
12
6
29
46
47
44
45
43
23
n
