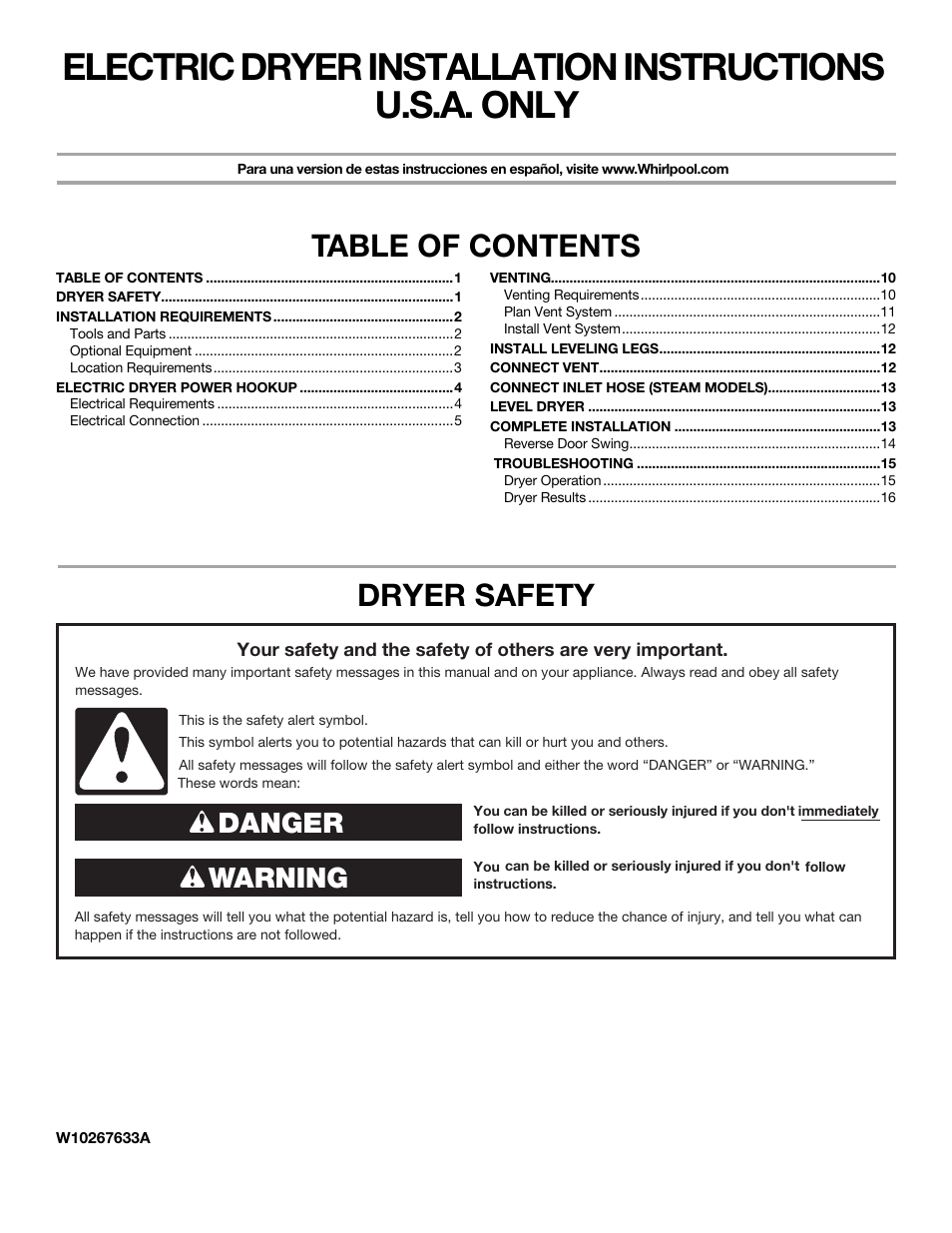

- ELECTRIC Dryer Installation Instructions U.S.A. Only
- Table of Contents 1
- Dryer Safety 1
- INSTALLATION REQUIREMENTS 2
- Electric DRYER POWER HOOKUP 4
- Venting 10
- Install Leveling Legs 12
- Connect Vent 12
- Connect InLET HOSE (STEAM MODELS) 13
- Level Dryer 13
- Complete Installation 13
- troubleshooting 15
- Non-Steam Models
- Steam Models
- Electrical Requirements
- It is your responsibility
- The National Electrical Code requires a 4-wire power supply connection for homes built after 1996, dryer circuits involved in remodeling after 1996, and all mobile home installations.
- A copy of the above code standards can be obtained from: National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269.
- Style 1: Power supply cord strain relief
- Style 2: Direct wire strain relief
- 4-wire (recommended)
- 3-wire (if 4-wire is not available)
- Electrical Connection Options
- If your home has:
- And you will be connecting to:
- Go to Section
- 4-wire connection: Power supply cord
- A. 4-wire receptacle (NEMA type 14-30R)
- B. 4-prong plug
- C. Ground prong
- D. Neutral prong
- E. Spade terminals with upturned ends
- F. 3/4" (19 mm) UL listed strain relief
- G. Ring terminals
- A. Neutral ground wire.
- B. Center, silver-colored terminal block screw
- C. External ground conductor screw - Dotted line shows position of NEUTRAL ground wire before being moved to center silver- colored terminal block screw
- D. Neutral wire (white or center wire)
- E. 3/4" (19 mm) UL listed strain relief
- A. External ground conductor screw
- B. Neutral ground wire
- C. Ground wire (green or bare) of power supply cord
- D. 3/4" (19 mm) UL listed strain relief
- E. Center, silver-colored terminal block screw
- F. Neutral wire (white or center wire)
- 4. Connect the other wires to outer terminal block screws. Tighten screws.
- 5. Tighten strain relief screws.
- 6. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.
- 7. You have completed your electrical connection. Now go to “Venting Requirements.”
- 4-wire connection: Direct wire
- 1. Remove center, silver-colored terminal block screw.
- 2. Remove neutral ground wire from external ground conductor screw. Connect neutral ground wire and place the hooked end (hook facing right) of the neutral wire (white or center wire) of direct wire cable under the center screw of the terminal block....
- A. Neutral ground wire.
- B. External ground conductor screw - Dotted line shows position of NEUTRAL ground wire before being moved to center, silver-colored terminal block screw
- C. Center, silver-colored terminal block screw
- D. Neutral wire (white or center wire)
- E. 3/4" (19 mm) UL listed strain relief
- A. External ground conductor screw
- B. Neutral ground wire
- C. Ground wire (green or bare) of power supply cable
- D. 3/4" (19 mm) UL listed strain relief
- E. Center, silver-colored terminal block screw
- F. Neutral wire (white or center wire)
- 4. Place the hooked ends of the other direct wire cable wires under the outer terminal block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.
- 5. Tighten strain relief screw.
- 6. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.
- 7. You have completed your electrical connection. Now go to “Venting Requirements.”
- 3-wire connection: Power supply cord
- Use where local codes permit connecting cabinet-ground conductor to neutral wire.
- A. 3-wire receptacle (NEMA type 10-30R)
- B. 3-wire plug
- C. Neutral prong
- D. Spade terminals with up turned ends
- E.3/4" (19 mm) UL listed strain relief
- F. Ring terminals
- G. Neutral (white or center wire)
- A. External ground conductor screw
- B. Neutral ground wire
- C. Center, silver-colored terminal block screw
- D. Neutral wire (white or center wire)
- E. 3/4" (19 mm) UL listed strain relief
- 3. Connect the other wires to outer terminal block screws. Tighten screws.
- 4. Tighten strain relief screws.
- 5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.
- 6. You have completed your electrical connection. Now go to “Venting Requirements.”
- 3-wire connection: Direct wire
- Use where local codes permit connecting cabinet-ground conductor to neutral wire.
- 1. Loosen or remove center, silver-colored terminal block screw.
- 2. Place the hooked end of the neutral wire (white or center wire) of direct wire cable under the center screw of terminal block (hook facing right). Squeeze hooked end together. Tighten screw.
- D. Neutral wire (white or center wire)
- E. 3/4" (19 mm) UL listed strain relief
- 3. Place the hooked ends of the other direct wire cable wires under the outer terminal block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.
- 4. Tighten strain relief screw.
- 5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.
- 6. You have completed your electrical connection. Now go to “Venting Requirements.”
- Optional 3-wire connection
- Use for direct wire or power supply cord where local codes do not permit connecting cabinet-ground conductor to neutral wire.
- 1. Remove center, silver-colored terminal block screw.
- 2. Remove neutral ground wire from external ground conductor screw. Connect neutral ground wire and the neutral wire (white or center wire) of power supply cord/cable under center, silver- colored terminal block screw. Tighten screw.
- A. External ground conductor screw
- B. Neutral ground wire
- C. Center, silver-colored terminal block screw
- D. Neutral wire (white or center wire)
- E. 3/4" (19 mm) UL listed strain relief
- F. Grounding path determined by a qualified electrician
- 3. Connect the other wires to outer terminal block screws. Tighten screws.
- 4. Tighten strain relief screws.
- 5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw.
- 6. Connect a separate copper ground wire from the external ground conductor screw to an adequate ground.
- Venting
- Vent products can be purchased from your dealer or by calling Whirlpool Service. For more information, see the “Assistance or Service” section in your Use and Care Guide.
- 45° elbows provide better airflow than 90° elbows.
- Part Number W10186596 - all models
- Part Number 4396028
- Part Number 4396037 - 0" (0 mm) to 18" (457 mm) mismatch
- Part Number 4396011 - 18" (457 mm) to 29" (737 mm) mismatch
- Part Number 4396014 - 29" (737 mm) to 50" (1.27 m) mismatch
- NOTE: Do not use vent runs longer than those specified in the Vent system chart.
- Exhaust systems longer than those specified will:
- Vent system chart
- Number 90º elbows
- Type of vent
- Box /louvered hoods
- Angled hoods
- 0
- Rigid metal
- 1
- Rigid metal
- 2
- Rigid metal
- 3
- Rigid metal
- 4
- Rigid metal
- Install Vent System
- 1. Install exhaust hood. Use caulking compound to seal exterior wall opening around exhaust hood.
- 2. Connect vent to exhaust hood. Vent must fit inside exhaust hood. Secure vent to exhaust hood with 4" (102 mm) clamp.
- 3. Run vent to dryer location. Use the straightest path possible. See “Determine vent path” in “Plan Vent System.” Avoid 90º turns. Use clamps to seal all joints. Do not use duct tape, screws or other fastening devices that extend into the i...
- Install Leveling Legs
- 1. To avoid damaging the floor, use a large flat piece of cardboard from the dryer carton. Place cardboard under the entire back edge of the dryer.
- 2. Firmly grasp the body of the dryer (not the console panel). Gently lay the dryer on the cardboard. See illustration.
- 3. Examine the leveling legs. Find the diamond marking.
- 4. Screw the legs into the leg holes by hand. Use a wrench to finish turning the legs until the diamond marking is no longer visible.
- 5. Place a carton corner post from dryer packaging under each of the 2 dryer back corners. Stand the dryer up. Slide the dryer on the corner posts until it is close to its final location. Leave enough room to connect the exhaust vent.
- Connect Vent
- 1. Using a 4" (102 mm) clamp, connect vent to exhaust outlet in dryer. If connecting to existing vent, make sure the vent is clean. The dryer vent must fit over the dryer exhaust outlet and inside the exhaust hood. Check that the vent is secured to e...
- 2. Move dryer into its final location. Do not crush or kink vent.
- 3. Once the exhaust vent connection is made, remove the corner posts and cardboard.
- Connect Inlet Hose (Steam Models)
- Install Vent System
- NOTE: If “Y” connector can be attached directly to cold water faucet, go to Step 6. If “Y” connector cannot be attached directly to the cold water faucet, the short hose must be used. Continue with Step 3.
- NOTE: Do not overtighten. Damage to the coupling can result.
- 5. Attach “Y” connector to brass male end of small hose. Screw on coupling by hand until it is seated on connector.
- 6. Attach straight end of long hose to “Y” connector.
- 7. Attach washer cold inlet hose to other end of “Y” connector. Screw on coupling by hand until it is seated on connector.
- 8. Using pliers, tighten the couplings an additional two-thirds turn.
- A. Inlet to cold water
- NOTE: Do not overtighten. Damage to the coupling can result.
- NOTE: Do not overtighten. Damage to the coupling can result.
- 11. Check that the water faucets are on.
- 12. Check for leaks around “Y” connector, faucet, and hoses.
- Level Dryer
- Complete Installation
- 1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.
- 2. Check that you have all of your tools.
- 3. Dispose of/recycle all packaging materials.
- 4. Check the dryer’s final location. Be sure the vent is not crushed or kinked.
- 5. Check that the dryer is level. See “Level Dryer.”
- 6. Remove the blue film on the console and any tape remaining on the dryer.
- 7. Wipe the dryer drum interior thoroughly with a damp cloth to remove any dust.
- 8. Read “Dryer Use” in your Use and Care Guide.
- 9. For power supply cord installation, plug into a grounded outlet. For direct wire installation, turn on power.
- Steam Models Only:
- 10. Be sure the water faucets are on.
- 11. Check for leaks around “Y” connector, faucet, and hoses.
- 12. If you live in a hard water area, use of a water softener is recommended to control the buildup of scale through the water system in the dryer. Over time, the buildup of lime scale may clog different parts of the water system, which will reduce p...
- All Models:
- If the dryer will not start, check the following:
- Reverse Door Swing
- Remove the door assembly
- 1. Open the dryer door.
- 2. Remove the bottom screw from each of the 2 hinges that attach dryer door to front panel of dryer.
- 3. Loosen the top screw from each of the 2 hinges in Step 2.
- A. Loosen these screws.
- B. Remove these screws.
- 4. Remove the dryer door and the hinges by lifting upward on the door. Lay the door on a flat, protected surface, with the inside of the door facing up. Remove remaining 2 loose screws from dryer front panel.
- 5. Remove the 4 plastic plugs located outside the dryer door opening.
- 6. Install 4 plastic plugs into screw holes in the dryer left where the hinges were removed in Step 4.
- Reverse the strike
- A. Door strike
- B. Cosmetic screw
- 3. Reinstall the door strike and cosmetic screw on the opposite side of the dryer door opening from where they were removed. NOTE: Door strike and plugs must be on the same side of the dryer door opening.
- Reinstall the door
- 1. Remove the 4 screws and 2 hinges from the dryer door.
- 2. Replace the 4 screws in the same holes.
- 3. Remove the 4 screws from the opposite side of the door.
- 4. Install the 2 hinges to the front panel of the dryer using 4 screws. Use the non-slotted side to attach the hinge to the front panel.
- 5. Install screws in top hinge holes in the door. Do not tighten screws. Leave approximately 1/4" (5 mm) of screw exposed.
- 6. Hang door by placing screw heads into top slotted holes of hinges and slide door down. Align bottom screw holes in hinge and door. Install two bottom screws. Tighten all hinge screws.
- 7. Close door to engage door strike.
- troubleshooting
- First try the solutions suggested here and possibly avoid the cost of a service call...
- Try the following: Check to see if a household fuse has blown or circuit breaker has tripped. Electric dryers use two household fuses or breakers. Replace the fuse or reset the circuit breaker.
- Confirm the power cord is properly installed. Refer to “Electrical Connection” for details.
- Select a Timed Dry heated cycle, and restart the dryer.
- If the message persists, consult a qualified electrician.
- If the message persists, have your entire home venting run cleaned.
