I N S T R U M E N T C L U S T E R
Always check the Owner’s Manual for more operating information and safety features
Instrument
Cluster
Instrument
Cluster

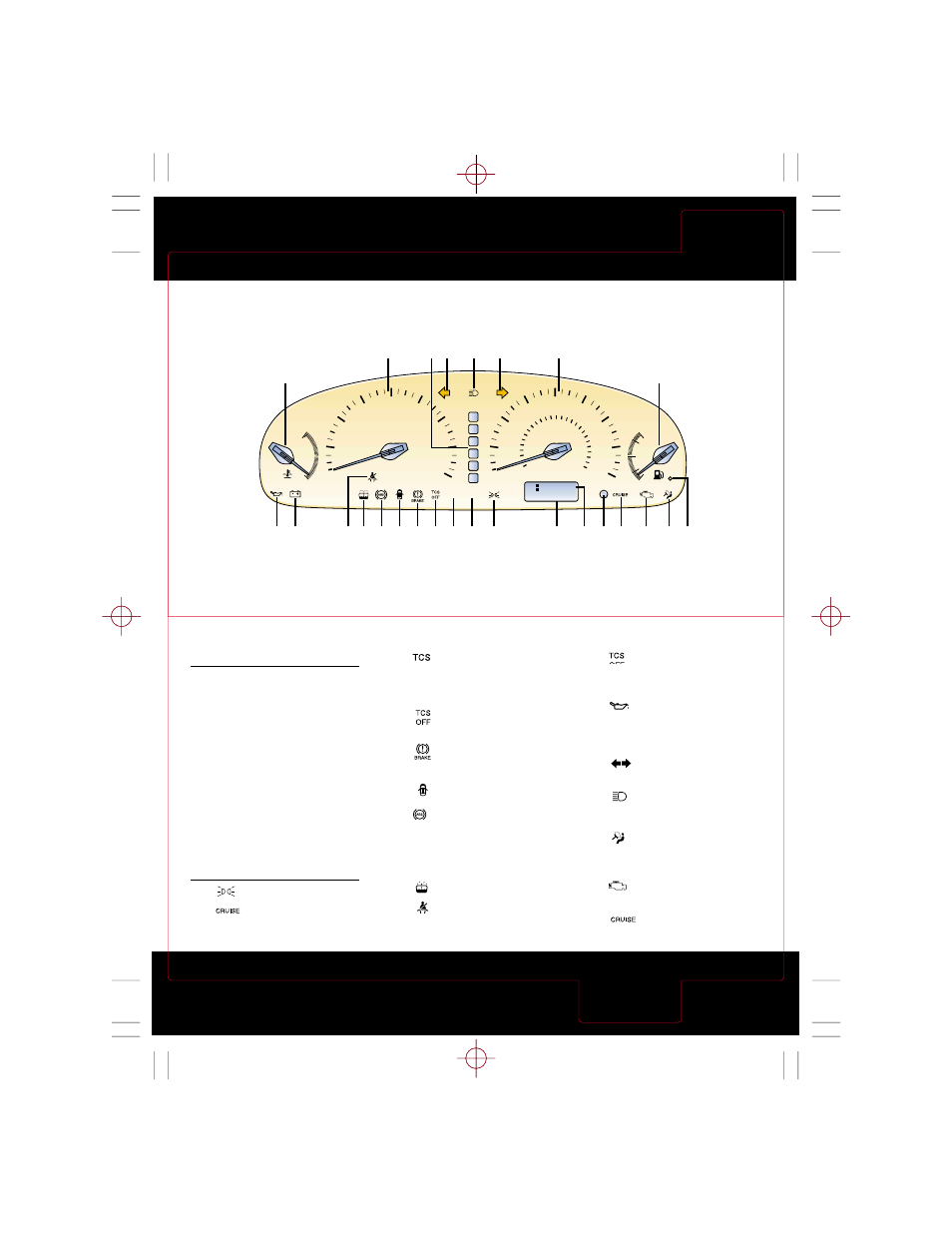

Quick Tips 2001 Mazda Millenia page 4
page 5
Revised January 9, 2001
HOLD TCS
P
R
N
D
L
8888
888888
ODO
TRIP A
B
0 8
1 7
2
H
C E
F
mph
x1000r/min
km/h
3 5
4
6
0 160
20
0
20
40
60
80 180
200
220
240
260
100 160
120 140
140
40
60 100
80
120
S
2
1 5
4 20 20 3 21
18 19 14 13 15 16 17 12 11 10 9 8 7 6 25 24 23 22
11. Traction control
system*, Light flashes when
in use; dealer inspection
required if light remains on
12. Traction control off*,
see Transmission
13. Brake system
Parking brake on/low fluid level
14. Door ajar
15. Anti-lock Brake
System (ABS)
ABS malfunction, normal
brakes only, dealer inspection
required
16. Low washer fluid*
17. Always fasten
safety belts
18. Charging system
warning light
Dealer inspection required
19. Low engine oil
pressure warning light
Stop vehicle and turn off
engine; check oil level
20. Turn signals/hazard
warning on
21. High beams on
22. Low fuel
23. Air bag readiness
Air bag malfunction,
dealer inspection required
24. Check engine
Dealer inspection required
25. Cruise control on
GAUGES
1. Coolant temperature
gauge
If above normal range, stop
vehicle and turn off engine;
check coolant level when safe
2. Tachometer
3. Gear indicator
4. Speedometer
5. Fuel gauge
18-gallon/68-liter tank
6. Trip odometer reset button
7. Trip odometer
8. Odometer
WARNING LIGHTS
9. Lights on
10. Hold mode on,
see Transmission
*Denotes optional equipment
