2.2 Unpacking
1. Remove the packing box and the document holder on the top of the cabinet; raise the cabinet.
2. Dismantle the blocks fixed beneath the cabinet by M12 screws, see Figure 2-2 (A or B), according to the width
of the cabinet);
3. Dismantle the 4 M12 screws screwed on the 4 leg supports (C).
4. Withdraw the "hexagonal spacer + leg" assemblies delivered inside the document holder.
5. Screw the spacers onto the cabinet frame (C).
6. Lock these spacers in position using a 24 mm flat wrench, and fit the cabinet on its legs.
7. Adjust cabinet height and verticality by screwing or unscrewing the legs using a 13 mm flat wrench.

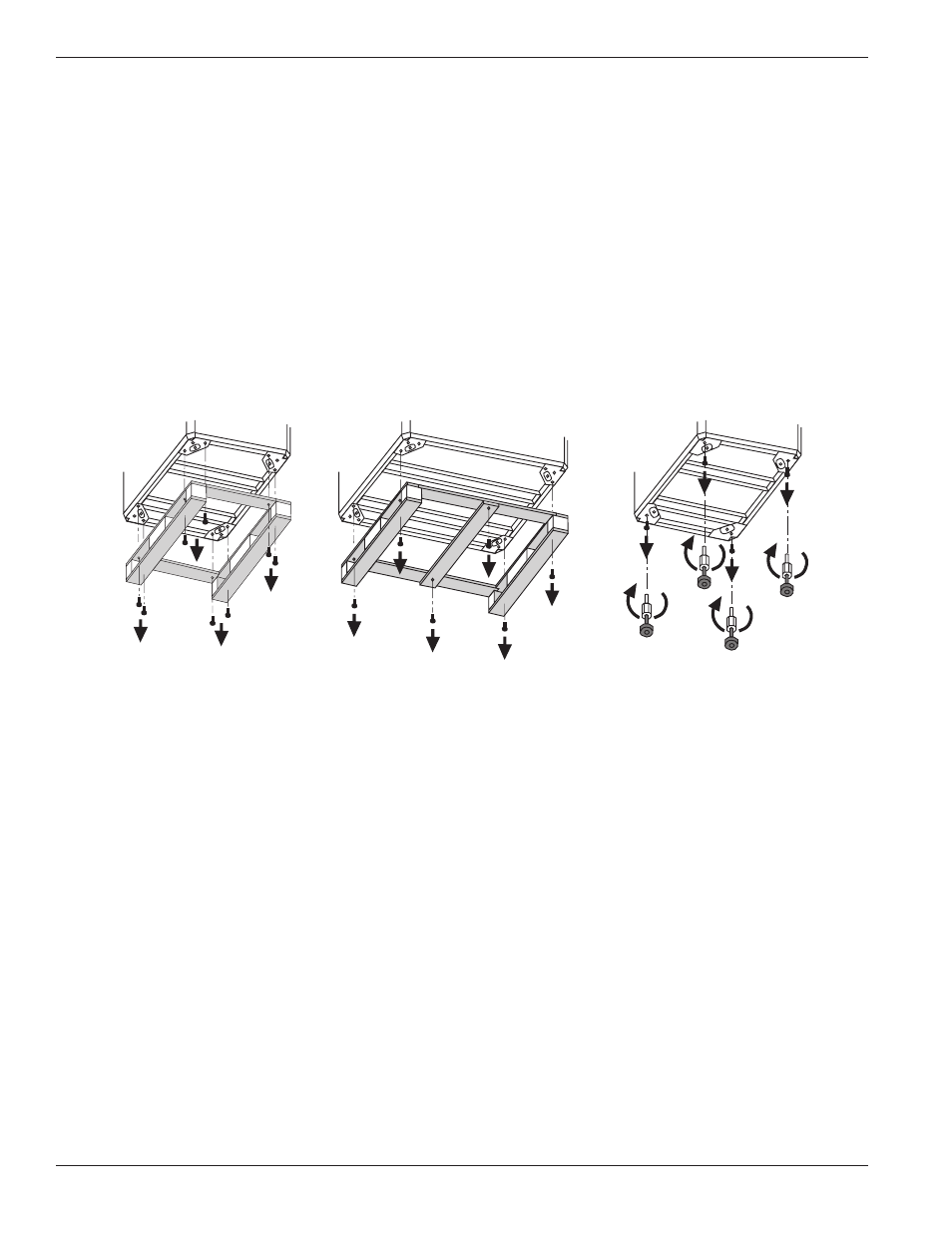

Figure 2-2: Dismantling Leg Supports and Attaching Spacers to Cabinet.
