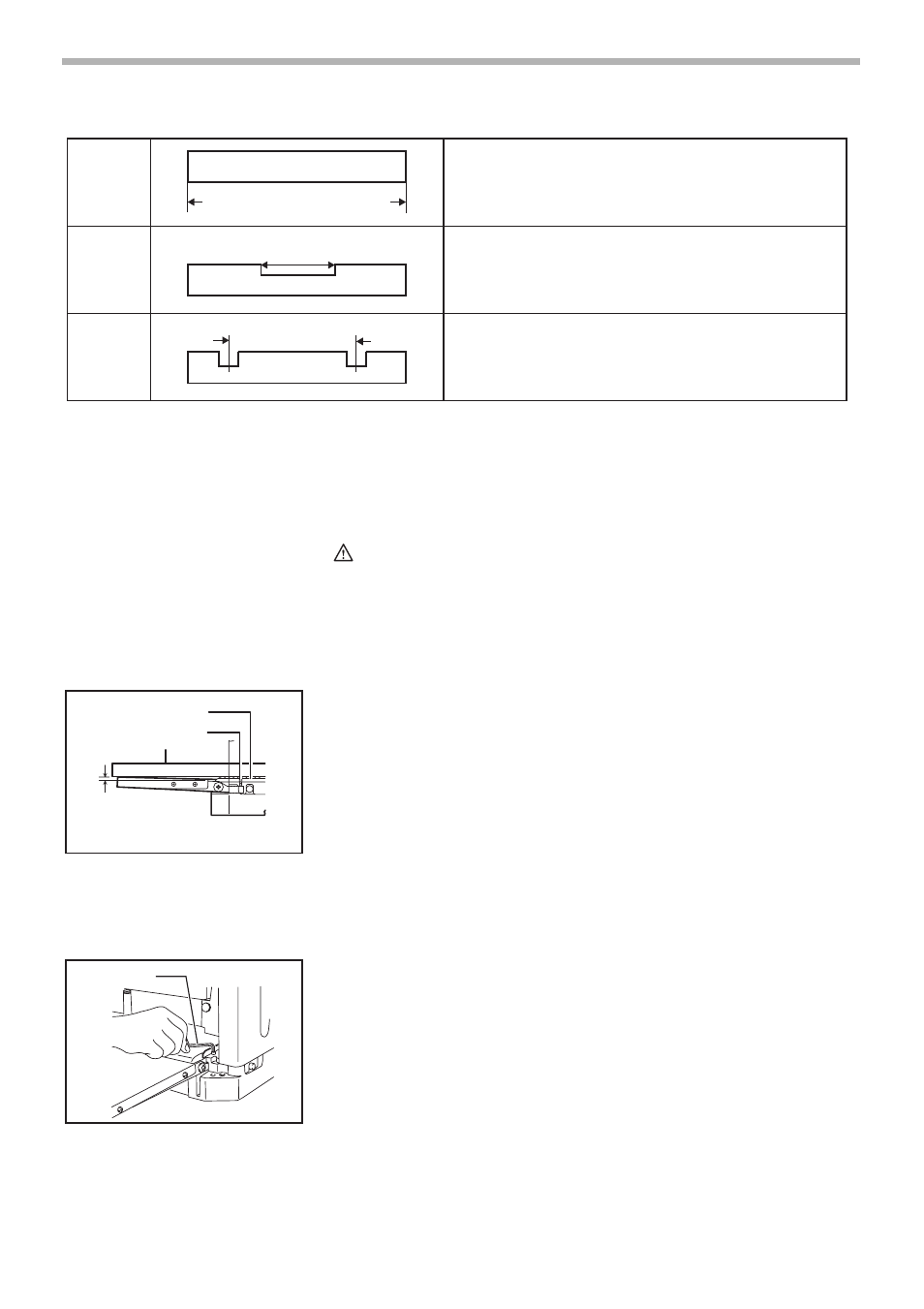

14

Stop the tool when the workpiece has stalled. Allowing
the tool to run with a stalled workpiece causes rapid
wearing of the feed rollers.

MAINTENANCE

CAUTION:

Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.

Adjusting height of sub-table

The height of sub-table is factory-adjusted. If further adjust-
ment is necessary, proceed as follows.

Place a postcard on the table and also place a ruler on the
postcard. Turn the adjusting screw with the hex wrench until
the end of the sub-table contacts the ruler. Now the end of
the sub-table is from 0.1 mm to 0.3 mm (0.004” - 0.012”)
above the table surface.

1

2

3

Less than 130 mm (5-1/8”) long

Having a groove more than 130mm (5-1/8”) wide

Having grooves at intervals of 130 mm (5-1/8”) wide

3

Less than 130 mm (5-1/8”) long

Having a groove more than 130mm (5-1/8”) wide

Having grooves at intervals of 130 mm (5-1/8”) wide

Less than 130mm (5-1/8”)

130mm (5-1/8”)

More than 130mm (5-1/8”)

003726

1. Post card

2. Adjusting screw

3. Ruler

1. Hex wrench

1
2

3

0.1mm - 0.3mm
(0.004” - 0.012”)

003727

1

003728
