10
Vehicle
Battery + -
Fuse
(-)
(+)

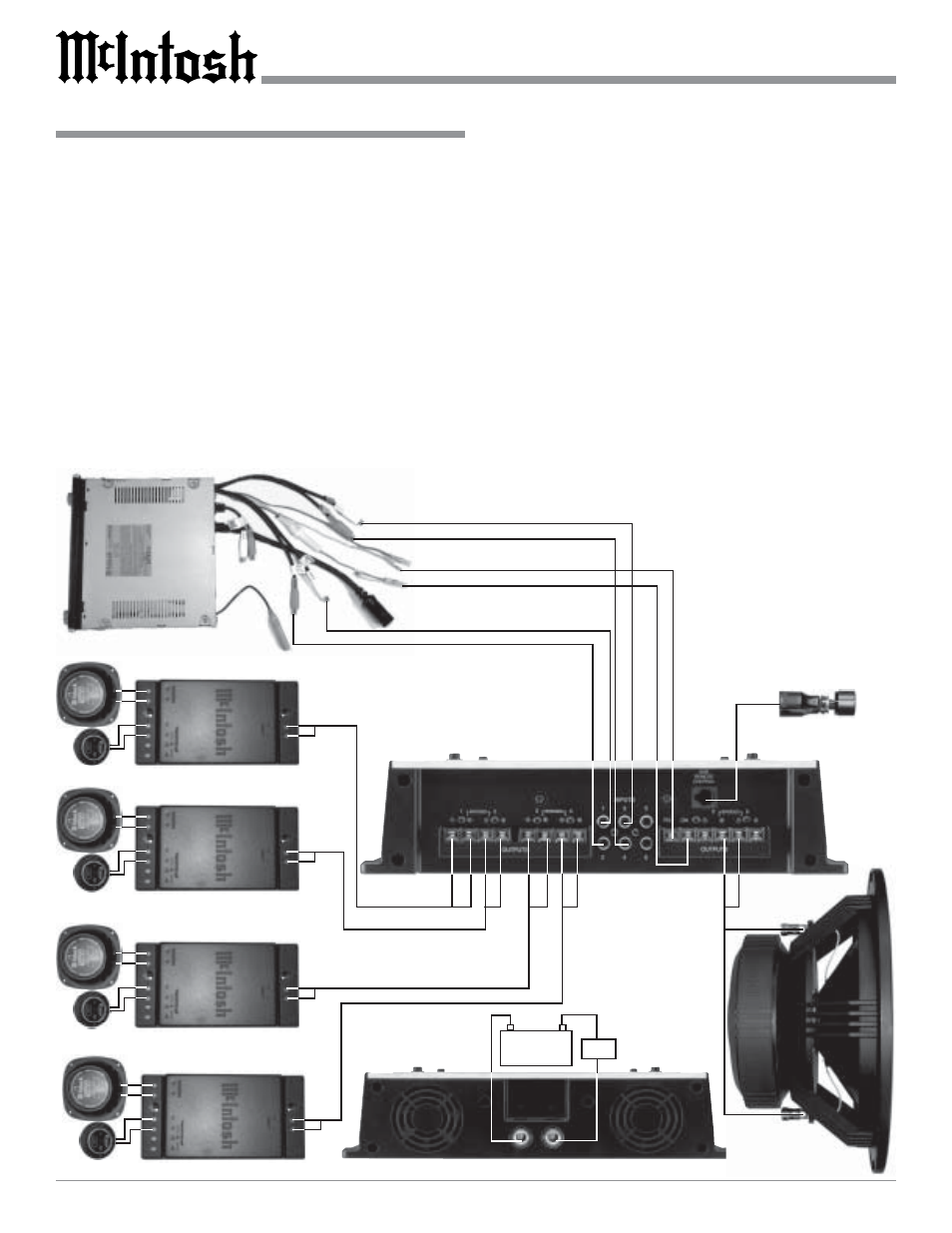

How to Connect for Five Channels
How to Connect for Five Channels
Left Front Output
Right Front Output
1. Connect a cable from the Control Center Amp On to
the MCC406M ON Connector on the right side of the
amplifier.
Note: All cables should be connected to the amplifier
before connecting the DC power cables to the
battery.
2. Connect a cable from a McIntosh Control Center with
Power Guard to the MCC406M PG Connector on the
right side of the amplifier.
3. Connect cables (up to 12 AWG) from four separate
Loudspeaker Systems to the MCC406M Power Ampli-
fier Channels 1, 2, 3, and 4 being careful to observe the
correct polarities.
4. Connect cables (up to 12 AWG) from the Subwoofer
Loudspeaker Drivers to the MCC406M Power Ampli-
fier Channels 5 and 6 BRIDGED connection being
careful to observe the correct polarities.
5. Connect audio cables from the McIntosh Control Cen-
ter Front and Rear Outputs to the MCC406M Power
Amplifier Inputs 1, 2, 3, and 4.
6. Connect the optional McIntosh external Subwoofer Re-
mote Volume Control to the SUB REMOTE CON-
TROL Jack on the right side of the MCC406M Power
Amplifier.
7. Connect the MCC406M to the vehicle battery termi-
nals using size 4 AWG (Maximum) cables.
Note: It is advisable to place an in-line fuse of a suitable
size as close as possible to the battery.
Power Guard
Amp ON
McIntosh External
Subwoofer Rotary Control
Left Rear Output
Right Rear Output
Subwoofer
Left Front Loudspeaker System
Right Front Loudspeaker System
Left Rear Loudspeaker System
Right Rear Loudspeaker System
