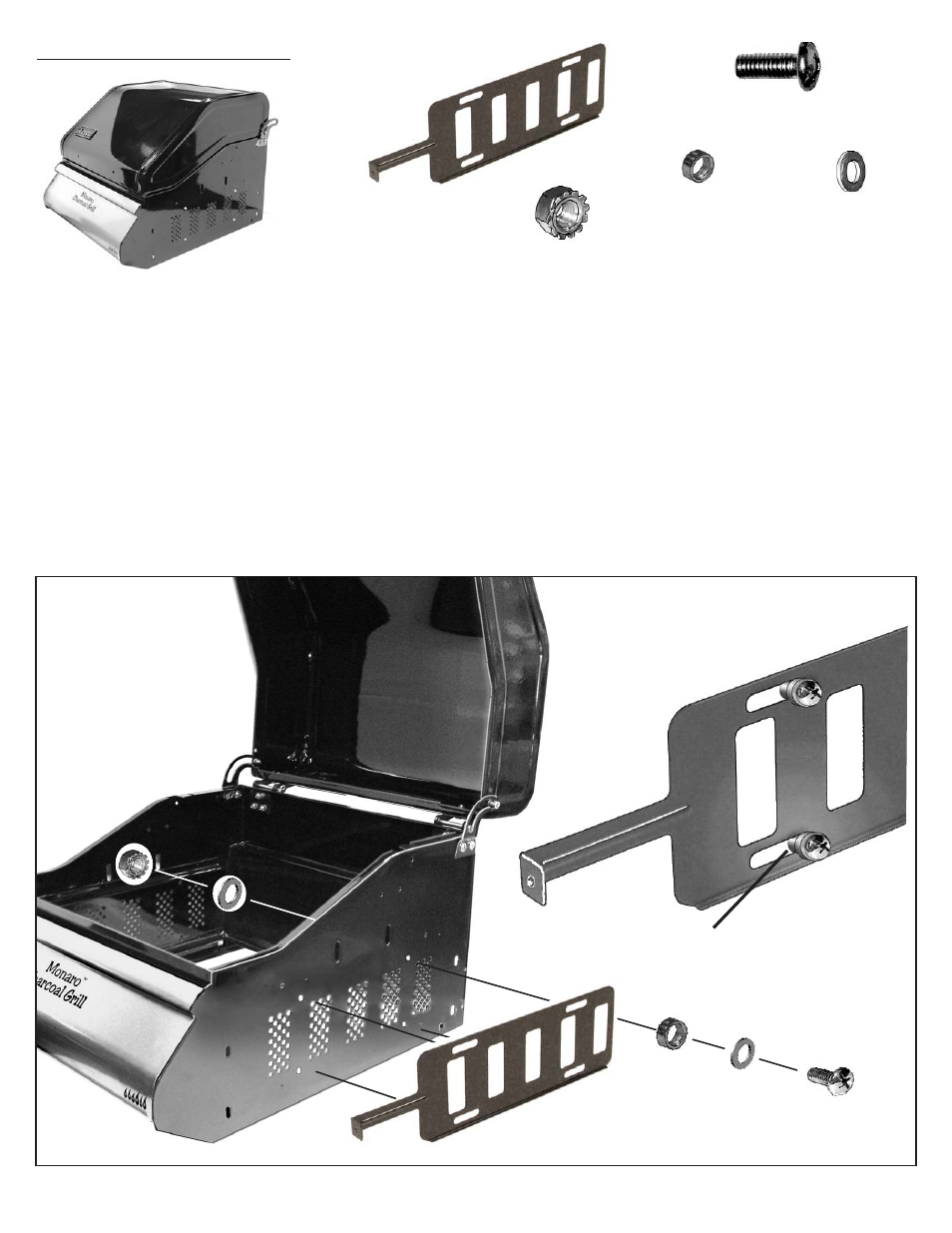

STEP 4-Slide Vent Assembly
(ITEM 13) Bolt, 6mm
(ITEM 15)
Sleeve
Spacer, 6mm
(ITEM 16)
Locknut, 6mm
8
· Open the Hood on the Grill Body.
· Align slotted holes in Slide Vent with holes in Grill Body Side.
· Insert a 6 mm x 16 Bolt through the 6mm Steel Washer and Sleeve Spacer. Position this
assembly with the Sleeve Spacer inside the Slide Vent slotted hole. Attach 6mm Steel Washer
and Locknut to Bolt from inside of Grill Body to secure the Slide Vent. Repeat for each slotted
hole on both Slide Vents.
· Make sure the Vents slide back and forth freely over the Sleeve Spacers. If not, loosen the bolts
slightly and reset the Spacers inside the Slide Vent slotted holes and retighten.
(ITEM 14)
Washer, 6mm
(ITEM 12)
Slide Vent
(ITEM 11 or 11A)
Body Assembly
Sleeve Spacer inside
slotted hole of Slide vent
