STEP 6-Continued Grill Body/Cart Assembly (See also page 11 for Wood Cart Assembly)
· Carefully lay Grill Body Assembly on its back side with Front panel facing up and Hood open.
Lay Cart Assembly on the back side with the Grill Body between Side Tables. (Note: Wheels on
Cart assembly are to the left.) (FIG. A)
· Align slotted holes on sides of Grill Body Assembly with holes in edges of legs (FIG. B). Insert
Body Spacers between Leg and Grill Body. (You can pull the legs away from the body since
all the bolts are loose.) Insert two 6mm x 90mm Body Bolts through Leg, Spacers and slotted
holes in Grill Body. Attach a 6mm Wing Nut to the Bolts, but do not tighten. Repeat this
assembly for remaining three Cart Legs.
· With help from a second person, turn full Grill and Cart Assembly upright. The Grill Body
should slide down to seat itself within the slotted
holes. If not, loosen the Body bolts and push
down at all four corners.
· Tighten all Body Bolts and Wing Nuts.
· Tighten all other Bolts at his time.
10

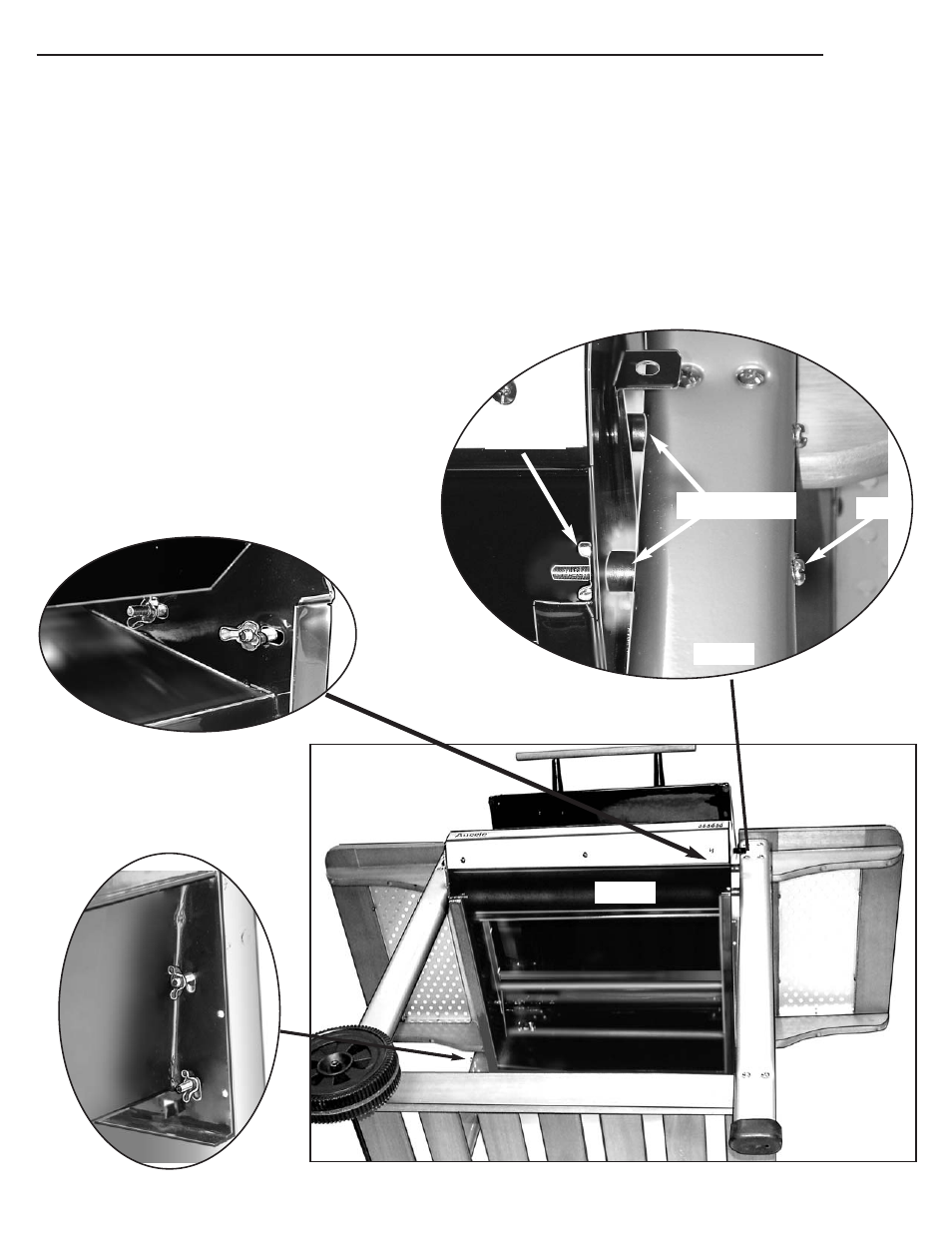

FIG. A
FIG. B
View from inside
Body/Cart Assembly
View from back side of
Leg/Body Assembly
after standing up
Bolt Body Spacer
Wingnut
