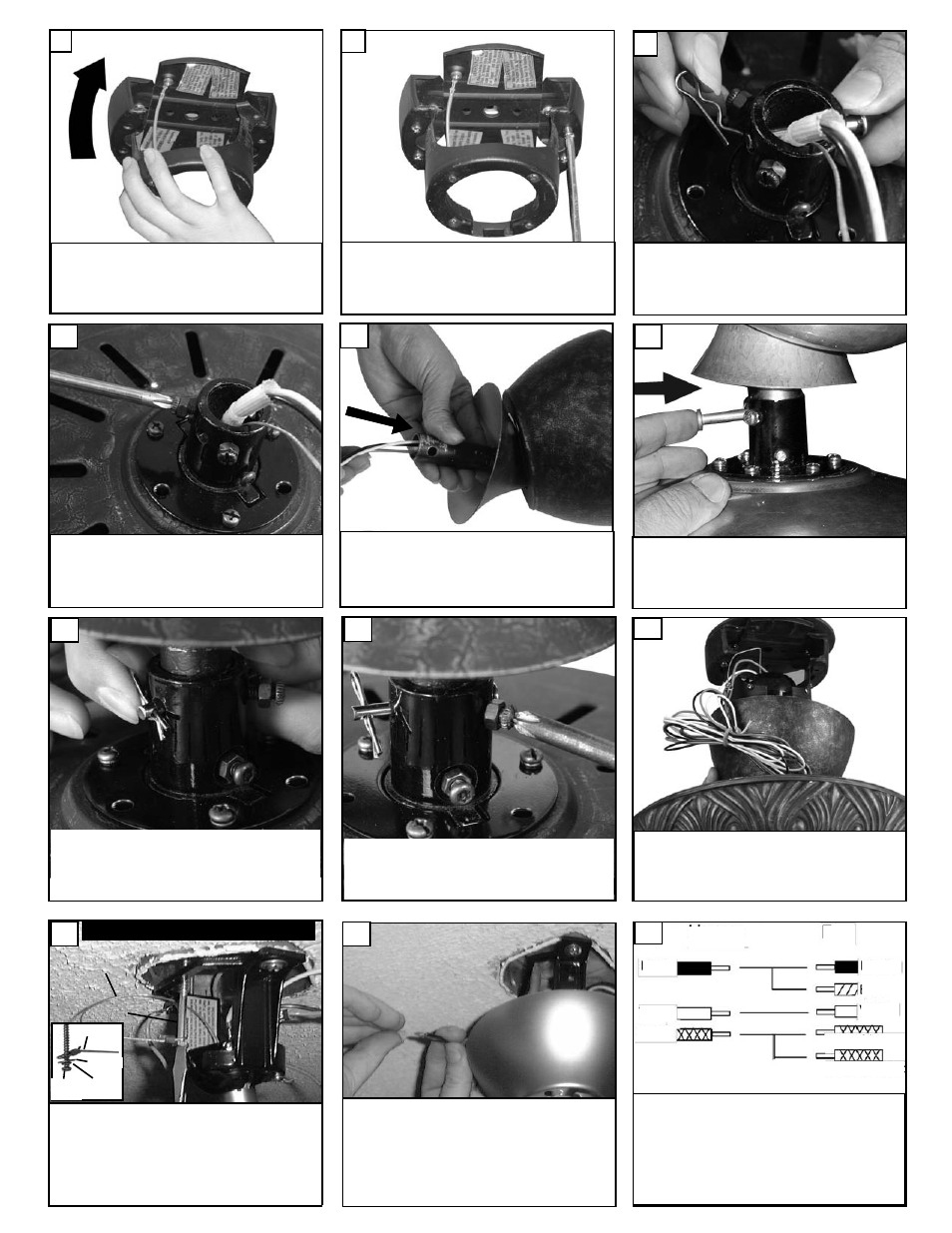

Insert downrod into motor yoke.
Next, insert clevis pin through yoke
and downrod.
Remove keeper from pin. Remove
pin replace keeper and save.
9
12
Thread wire through downrod with
canopy and yoke cover assembled
onto downrod.
11
14
Tighten both yoke set screws to fur-
ther secure downrod.
13
Secure with cotter pin.
Loosen the 2 set screws in yoke for
downrod to slip into yoke.
10
Lift mounting neck to mounting Plate
and align screws.
7
Secure mounting neck to the mount-
ing plate with four screws to become
a complete mounting bracket.
8
Carefully lift fan assembly onto mounting
bracket. Rotate fan so that the notch on the
ball engages the ridge in the mounting bracket.
This will allow hands-free wiring.
15
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
17
Fan and light kit combinations over 70 lbs, in
both flush and downrod mode the safety cable
must be installed into the house structure
beams using the 3” lag screws,washers, and
lock washers. provided. Make sure that when
the safety cable is fully extended the lead wires
are longer than the cable and no stress is
placed on the lead wires.
16 Safety cable installation
Safety Cable
Lag Screw
safety
cable
3” lag
screw
lock
washer
washer
For pullchain controls, follow diagram above.
Make sure that all exposed wiring is secured
inside wire nuts. Note: Wires from house may
vary in color and may not include ground wire.
After wiring is conplete, gently push wires into
junction box with wire nuts pointing upward.
Refer to point 3 of safety tips.
18
House Fan
Black
White
Green
Black
White
Green(downrod)
Green(Bracket)
Blue
