Page 41

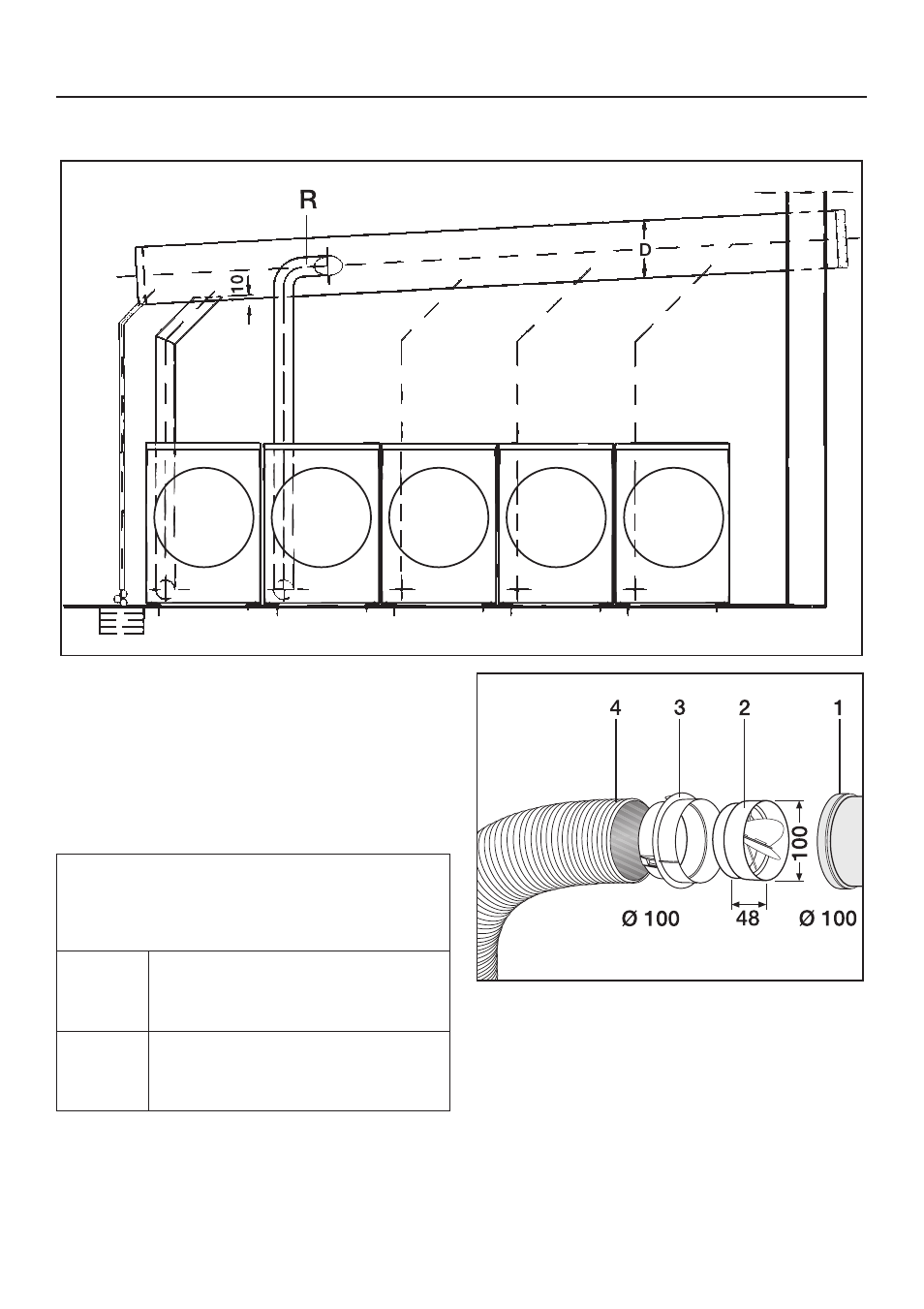

d Vent collector duct

To prevent condensed water buildup in
the non-operating dryers:

^ For each dryer, install a non-return

flap R directly on the collector duct.
You will need an optional Miele
accessory* (see right) for this.

When installing from 3 to a maximum
of 5 dryers, the pipe diameterD must
be enlarged.

Number
of
dryers

Pipe diameter multiplication
factor from Table II

1-2
3
4 - 5

1
1,25
1,5

1 Connection to connection duct
2 Miele non-return flap*
3 additional Miele Adapter*
4 Vent hose, flexible

^ Press the non-return flap(2) fully into

the Adapter (3).

Installing the dryer vent
