7
ASSEMBLY
CHECK BATTERY (See Fig. 3)
• Lift seat pan to raised position.
• If this battery is put into service after month and year
indicated on label (label located between terminals)
charge battery for minimum of one hour at 6-10 amps.
(See "BATTERY" in MAINTENANCE section of this
manual for charging instructions).
NOTE: You may now roll your tractor off the skid. Follow
the ap pro pri ate instruction below to remove the tractor
from the skid.
WARNING: Before start ing, read, un der stand and fol low
all in struc tions in the Op er a tion section of this man u al. Be
sure tractor is in a well-ventilated area. Be sure the area in
front of tractor is clear of other peo ple and objects.
TO ROLL TRACTOR OFF SKID (See Op-
er a tion section for location and function of
con trols)
• Raise attachment lift lever to its highest po si tion.
• Release parking brake by de press ing clutch/brake
ped al.
• Place freewheel control in "trans mis sion dis en gaged
position" (See “TO TRANS PORT” in the Op er a tion
section of this manual).
• Roll tractor forward off skid.
•
Remove banding holding the deflector shield up against
tractor.

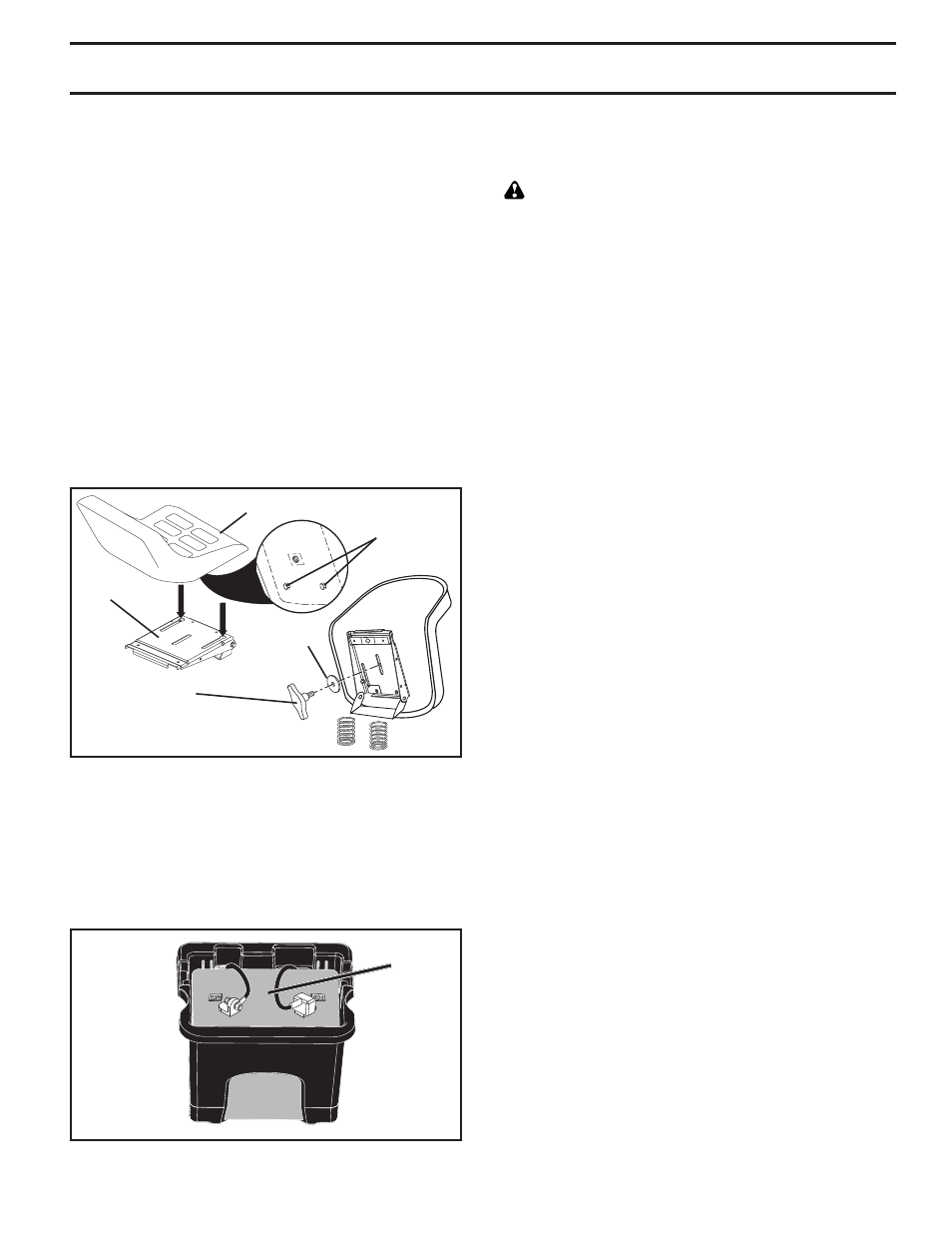

Fig. 2
INSTALL SEAT (See Fig. 2)
Adjust seat before tightening adjustment knob.
• Remove adjustment knob and flat washer securing
seat to cardboard packing and set aside for assembly
of seat to tractor.
• Pivot seat upward and remove from the cardboard pack-
ing. Remove the cardboard packing and discard.
• Place seat on seat pan so head of shoulder bolts are
positioned over the large slotted holes in pan.
• Push down on seat to engage shoulder bolts in slots
and pull seat towards rear of tractor.
• Pivot seat and pan forward and as sem ble adjustment
knob and flat washer loosely. Do not tighten.
• Lower seat into operating position and sit in seat.
•
Slide seat until a comfortable position is reached which
allows you to press clutch/brake pedal all the way
down.
• Get off seat without moving its ad just ed position.
• Raise seat and tighten adjustment knob securely.
02615
ADJUSTMENT
KNOB
WASHER
02617
SEAT
PAN
SHOULDER
BOLTS
SEAT
Fig. 3
LABEL
