4) Without twisting, fold the bladder over once and place into the center

of the pouch between the two wings (Fig.6d). Ensure the yellow
inflator pulltab is positioned so it hangs out from the upper left hand
corner (above left side wing).

5) Fold both side wings on top of the bladder and secure wingtips

together with Velcro

at ends. (Fig.6d)

6) Fold the lower flap up and secure both side edges to wings with

Velcro

. (Fig.6d)

7) Fold the upper flap down onto the lower flap and secure with the

Velcro

running across the width of the pouch (Fig.6d). Ensure the

yellow inflator pulltab is still hanging out of the upper left corner
(lower right corner when donned as in Fig.6e).

p

8

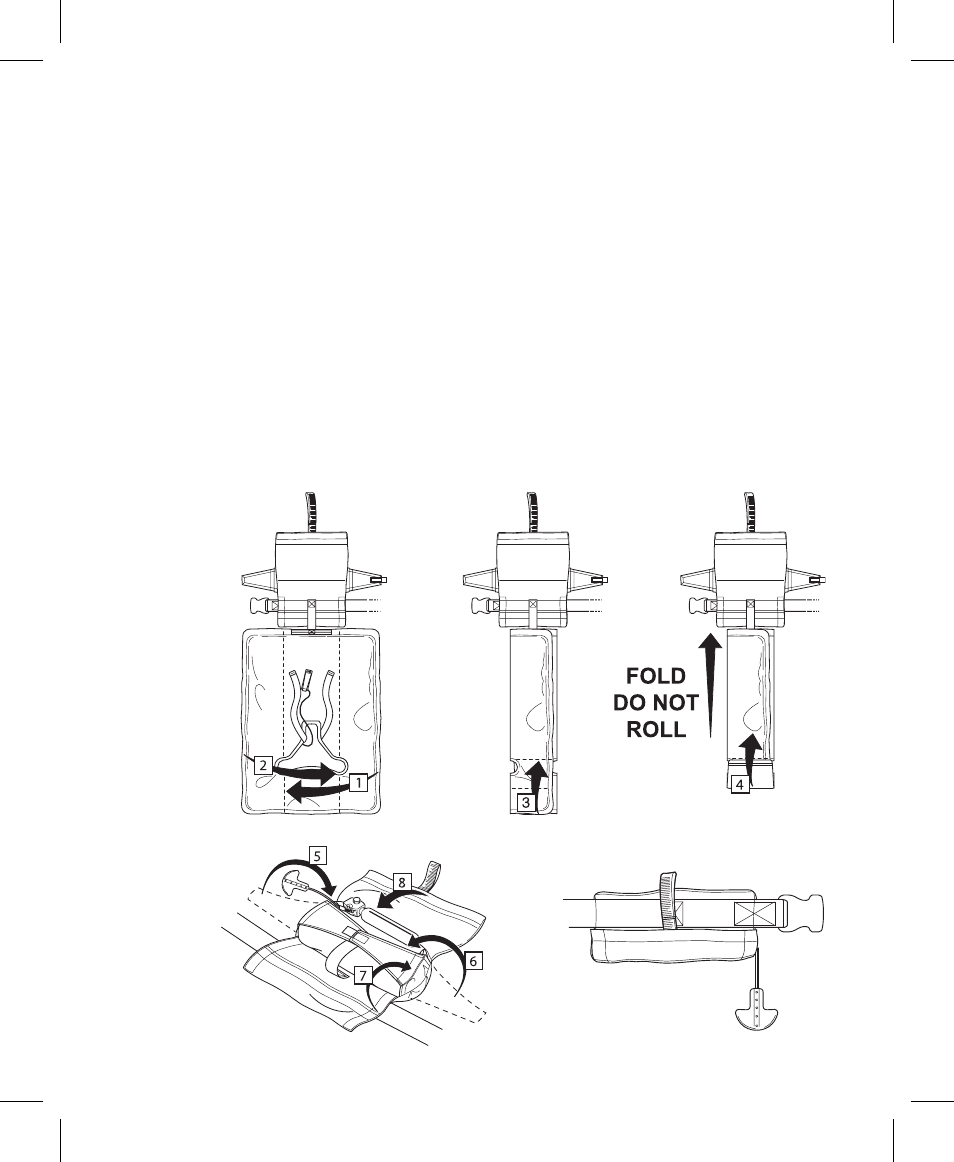

Fig. 6a

Fig. 6b

Fig. 6c

Fig. 6d

Fig. 6e
